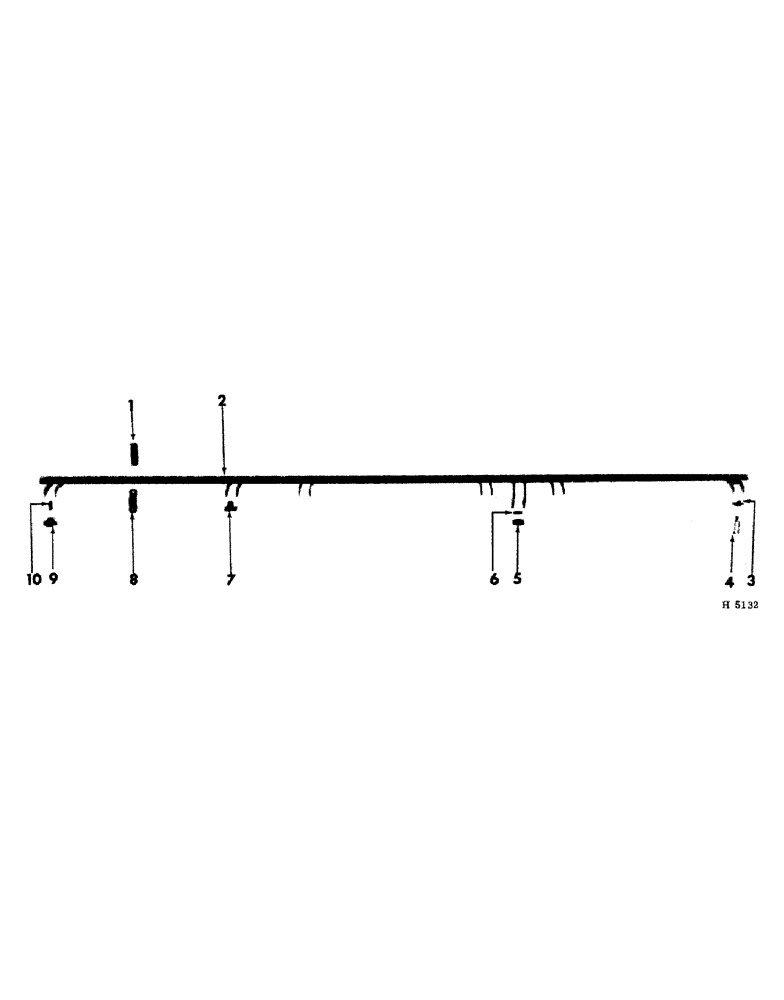

Запчасти Case IH 110 (01-05) - ROCKSHAFT ASSEMBLY

1

604546R1

SUPPORT, rockshaft

1шт.

1/2 X 9-1/2" CAD-PLTD. MACH. BOLT W/NUT

2шт.

1/2 X 10" CAD-PLTD. MACH. BOLT W/NUT (At hitch support plate) (13-1/2 and 18 ft.)

2шт.

1/2 X 10-1/2" CAD-PLTD. HEX-HD. BOLT W/NUT (At cylinder head bracket) (9 ft.)

2шт.

1/2" CAD-PLTD. LOCK WASHER

2шт.

2

604660R92

ROCKSHAFT ASSEMBLY, 9 ft., Composed of

1шт.

ARM (NSS)

4шт.

ARM (NSS)

4шт.

BAR (NSS)

1шт.

LEVER (NSS)

2шт.

15188R1

BOLT

1шт.

17673R1

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 2

4шт.

604643R1

BUSHING

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

604556R1

PIVOT

2шт.

604567R1

PIVOT

1шт.

604541R1

PLUG

3шт.

604558R1

RETAINER

1шт.

600373R1

SPACER

5шт.

2

604661R92

ROCKSHAFT ASSEMBLY, 13-1/2 ft., Composed of

1шт.

ARM (NSS)

6шт.

ARM (NSS)

6шт.

BAR (NSS)

1шт.

LEVER (NSS)

2шт.

15188R1

BOLT

1шт.

17673R1

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 2

6шт.

604643R1

BUSHING

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

604556R1

PIVOT

3шт.

604567R1

PIVOT

1шт.

604541R1

PLUG

5шт.

604558R1

RETAINER

1шт.

600373R1

SPACER

5шт.

2

604662R92

ROCKSHAFT ASSEMBLY, 18 ft., Composed of

1шт.

ARM (NSS)

8шт.

ARM (NSS)

8шт.

BAR (NSS)

1шт.

LEVER (NSS)

2шт.

15188R1

BOLT

1шт.

17673R1

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 2

8шт.

604643R1

BUSHING

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

604556R1

PIVOT

4шт.

604567R1

PIVOT

1шт.

604541R1

PLUG

7шт.

604558R1

RETAINER

1шт.

600373R1

SPACER

9шт.

3

604556R1

PIVOT, front gang depth control

2шт.

4

604569R1

CLEVIS, depth regulator

1шт.

604647R1

5/8-18 NF X 6" CAD-PLTD. HEX-HD. BOLT

1шт.

5/8 X 1-3/4" STD-HD. DLD. PIN

1шт.

3/16 X 1-1/4" COTTER PIN

1шт.

5/8" CAD-PLTD. HEX. JAM NUT

1шт.

21/32 X 1-1/8 X 3/16" WASHER

1шт.

5

604567R1

PIVOT, pitman link

1шт.

6

600373R1

SPACER

rockshaft arm

1шт.

3/8 X 3-1/2" MACH. BOLT W/NUT

1шт.

3/8 X 3-3/4" CARRIAGE BOLT W/NUT (At rockshaft lever)

1шт.

3/8" LOCK WASHER

1шт.

7

604541R1

PLUG, extension spring lower

3шт.

8

604547R1

CAP, rockshaft support

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

1/2 X 9-1/2" CAD-PLTD. MACH. BOLT W/NUT

2шт.

1/2 X 10" CAD-PLTD. MACH. BOLT W/NUT (At hitch support plate) (13-1/2 and 18 ft.)

2шт.

1/2 X 10-1/2" CAD-PLTD. HEX-HD. BOLT W/NUT (At cylinder head bracket) (9 ft.)

2шт.

1/2" CAD-PLTD. LOCK WASHER

2шт.

9

604558R11

RETAINER, spring lower (Includes bushing - 604643R1)

1шт.

3/4 X 2" CAD-PLTD. MACH. BOLT

2шт.

3/4" CAD-PLTD. LOCK WASHER

2шт.

10

604643R1

BUSHING, spring retainer

1шт.
