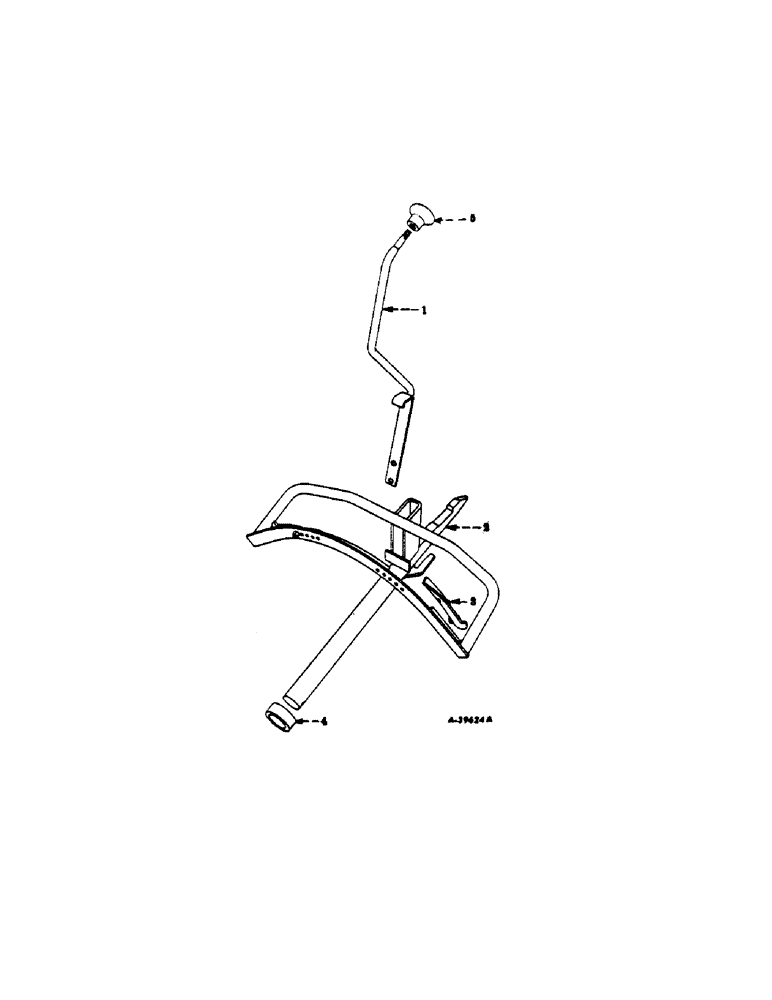

Запчасти Case IH 101 (A-2) - COUPLING BEAM AND LEVER

1

521488R91

LEVER, shifting, order lever, 522685R91 & knob, 53717DA

1шт.

1

522685R91

LEVER, shifting

1шт.

17475R1

BOLT, 5/8 x 1-1/2 pln type 1

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

2

521485R91

BEAM, coupling

1шт.

Q314

WASHER, 2-1/32 x 2-3/4 x 20 ga

3шт.

3

521475R1

STOP, shifting lever left

1шт.

3

521476R1

STOP, shifting lever right

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

4

521499R1

COLLAR, pivot bracket retaining

1шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

1шт.

Q3550

PIN

1/2 x 3.125 pln hd type 1

1шт.

5

53717DA

BUTTON

KNOB, lever

1шт.
