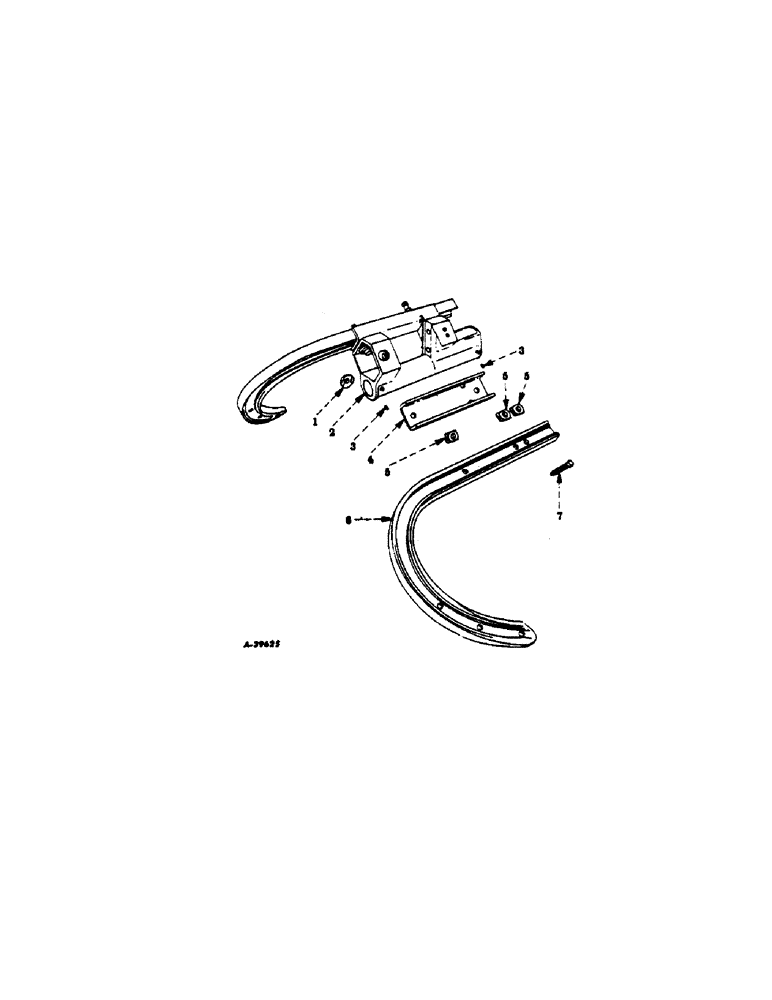

Запчасти Case IH 101 (A-2[A]) - BEAM AND BRACKET

1

521477R1

BLOCK, beam adjusting

2шт.

2

521474R1

BRACKET, beam pivot

1шт.

17475R1

BOLT, 5/8 x 1-1/2 pln type 1

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

102639

NUT,5/8"-11, G5

2шт.

3

109358

FITTING, lub

2шт.

4

521494R1

GUIDE, beam

2шт.

5

7466

WASHER

beam

6шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

5/8 x 4 type 5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

521497R1

BEAM, LH

1шт.

6

521498R1

BEAM, RH

1шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

5/8 x 4 type 5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

7

112986

SCREW, beam adjusting 5/8 x 3 cup-pt sq-hd

2шт.

105610

NUT

5/8 sq

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.
