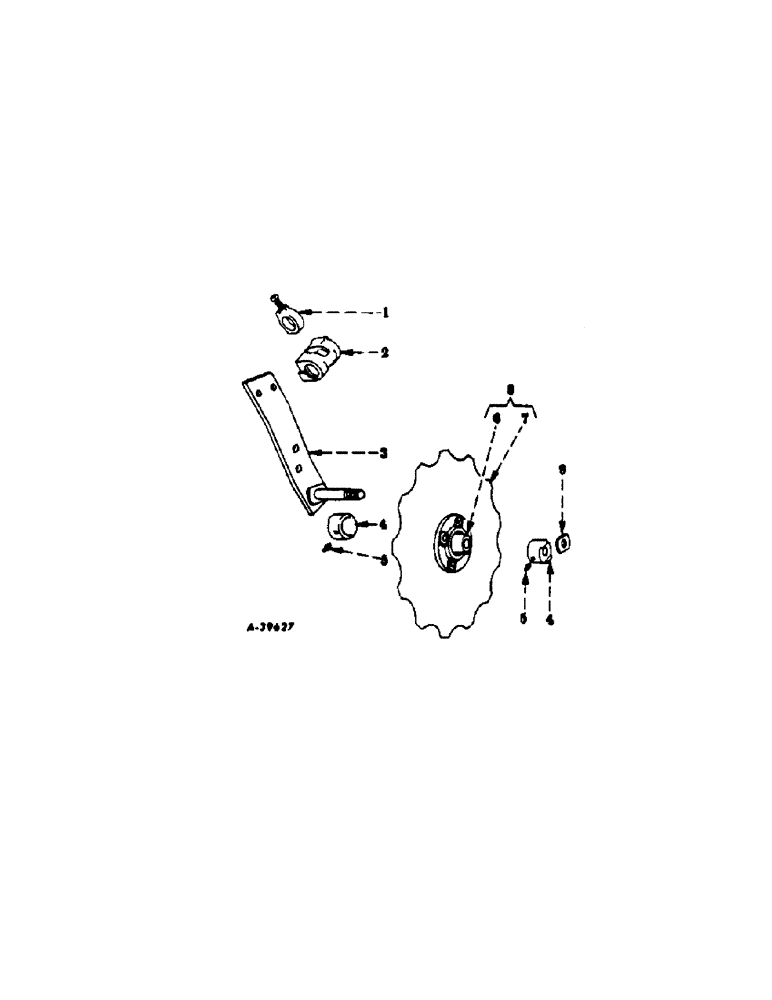

Запчасти Case IH 101 (A-3) - ROLLING COLTER, ONE PER FURROW

1

521502R11

COLLAR, w/set screw, stop

1шт.

102907

SET SCREW,Sq Hd, 7/16"-14 x 1"

SCREW, 7/16 x 1 pln C/PT aq/hd set

1шт.

2

521503R1

BEARING, support plate left

1шт.

2

521504R1

BEARING, support plate right

1шт.

102637

NUT,1/2"-13, G5

2шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 type 1

2шт.

1203843

WASHER, 1/2 lock

2шт.

3

521505R11

PLATE ASSY, support LH

1шт.

3

521506R11

PLATE ASSY, support RH

1шт.

427642

SLOTTED NUT,7/8"-9, G5

NUT, 7/8 pln slt type 5

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

4

521501R1

BUSHING, colter

2шт.

5

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

6

521500R1

HUB, colter

2шт.

119578

FACING

RIVET, 5/16 x 1-3/8 rd/hd

1шт.

7

521511R1

BLADE, 16 notched

1шт.

8

521511R11

BLADE w/hubs, 16 notched

1шт.

9

521509R1

STOP, colter bushing

1шт.
