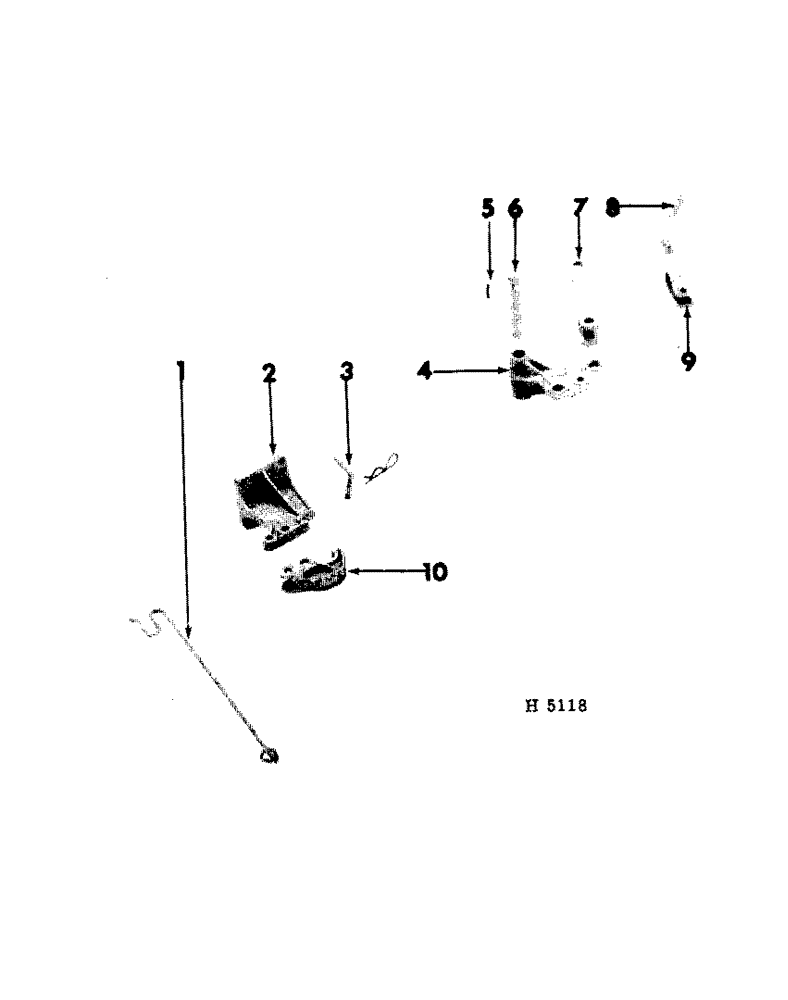

Запчасти Case IH 100 (03-04) - HAND AND HYDRAULIC LIFT ADAPTER

1

651793R11

SUPPORT

flexible hose

1шт.

2

604563R1

BRACKET, cylinder head

1шт.

1/2 X 8" CAD-PLTD. HEX-HD. BOLT W/NUT (2 - 9 ft., 4 - 13-1/2 ft., 4 - 18 ft.)

1шт.

1/2 X 10-1/2" CAD-PLTD. HEX-HD. BOLT W/NUT (2 - 9 ft.)

1шт.

1/2" CAD-PLTD. LOCK WASHER

4шт.

3

602801R1

PIN

locking

1шт.

591107R1

COTTER PIN

QUICK-ATTACHABLE COTTER PIN

1шт.

4

604565R1

BELLCRANK, frame

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

5

604576R1

STOP, bellcrank pivot pin (1960-61)

1шт.

5

605981R1

STOP, bellcrank pivot pin (1961-)

1шт.

6

604571R1

PIN, bellcrank pivot (1960-61)

1шт.

1/4 X 1-3/4" COTTER PIN

1шт.

1-5/32 X 1-3/4 X 16 GA. WASHER

1шт.

6

605980R1

PIN, bellcrank pivot (1961-)

1шт.

1/4 X 1-3/4" COTTER PIN

1шт.

1-5/32 X 1-3/4 X 16 GA. WASHER

1шт.

7

604663R91

LINK ASSEMBLY, pitman

1шт.

580714R1

HEADED PIN,1" x 2 3/4"

1 X 2-3/4" STD-HD. DLD. PIN

2шт.

1/4 X 1-3/4" COTTER PIN

2шт.

1-1/32 X 1-3/4 X 11 GA. WASHER

2шт.

8

604762R1

STUD, locking device

1шт.

1/4 X 1-1/2" COTTER PIN

2шт.

7/8" HEX. NUT

2шт.

9

604763R1

LOOP, locking device

1шт.

10

604564R1

RETAINER

cylinder bracket pin

1шт.

5/8 X 2-1/8" STD-HD. DLD. PIN

1шт.

3/16 X 1-1/4" COTTER PIN

1шт.
