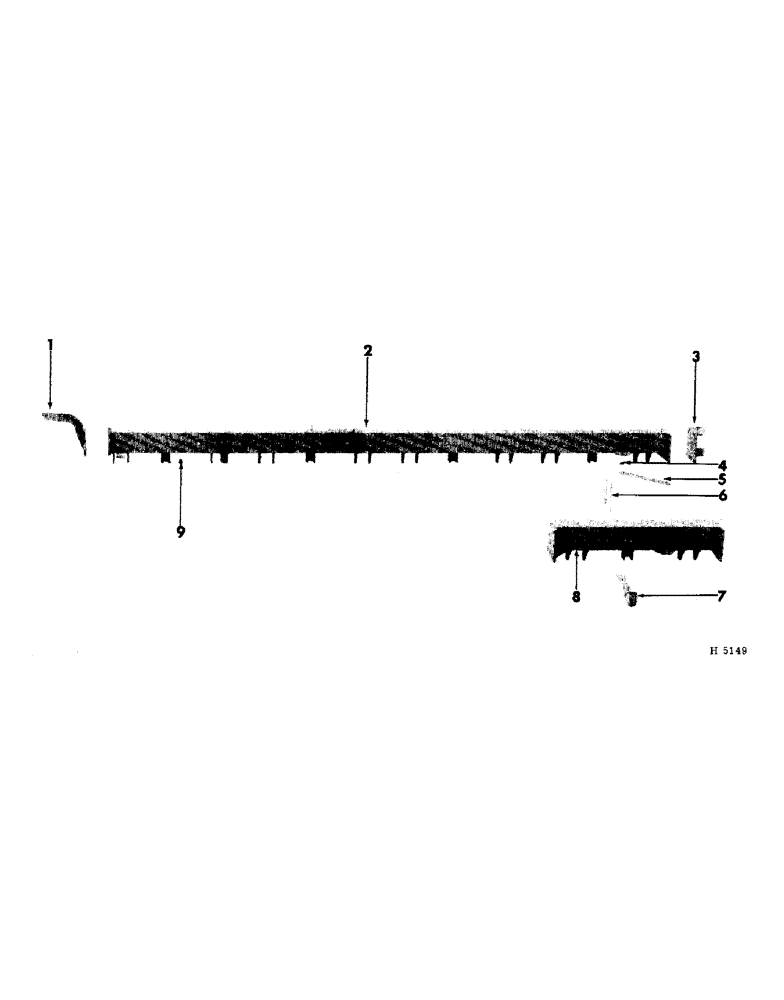

Запчасти Case IH 100 (03-02) - MAIN FRAME

1

604593R11

BRACKET, front furrow wheel

1шт.

3/4 X 2-1/4" CAD-PLTD. HEX-HD. BOLT W/NUT

5шт.

3/4" CAD-PLTD. LOCK WASHER

5шт.

2

605984R91

FRAME ASSEMBLY, main 12 ft. (1961-)

1шт.

2

FRAME ASSEMBLY, main 12 ft. (1960-61) (Order 1 - 605984R91, frame, 1 - 605980R1, pin and 1 - 605981R1, stop)

1шт.

2

606321R91

FRAME ASSEMBLY, main 15, 18 ft.

1шт.

3

604649R91

BRACKET, pivot frame

1шт.

3/4 X 2-1/4" HEX-HD. BOLT W/NUT

6шт.

3/4" LOCK WASHER

6шт.

4

604577R1

SPACER

tie bar

2шт.

5

604605R1

BAR, tie

1шт.

3/4 X 2-1/2" CAD-PLTD. HEX-HD. BOLT W/NUT

2шт.

3/4 CAD-PLTD. LOCK WASHER

2шт.

25/32 X 1-3/4 X 11 GA. WASHER

2шт.

6

604578R1

"U" BOLT, hitch carrier (15, 18 ft.)

1шт.

1/2" HEX. NUT

2шт.

1/2" LOCK WASHER

2шт.

7

604594R1

CARRIER, hitch (15, 18 ft.)

1шт.

8

604650R91

EXTENSION, main frame 3 ft.

1шт.

3/4 X 2-1/4" CAD-PLTD. HEX-HD. BOLT W/NUT

6шт.

3/4" CAD-PLTD. LOCK WASHER

6шт.

9

602968R1

BUSHING

thrust rod

1шт.
