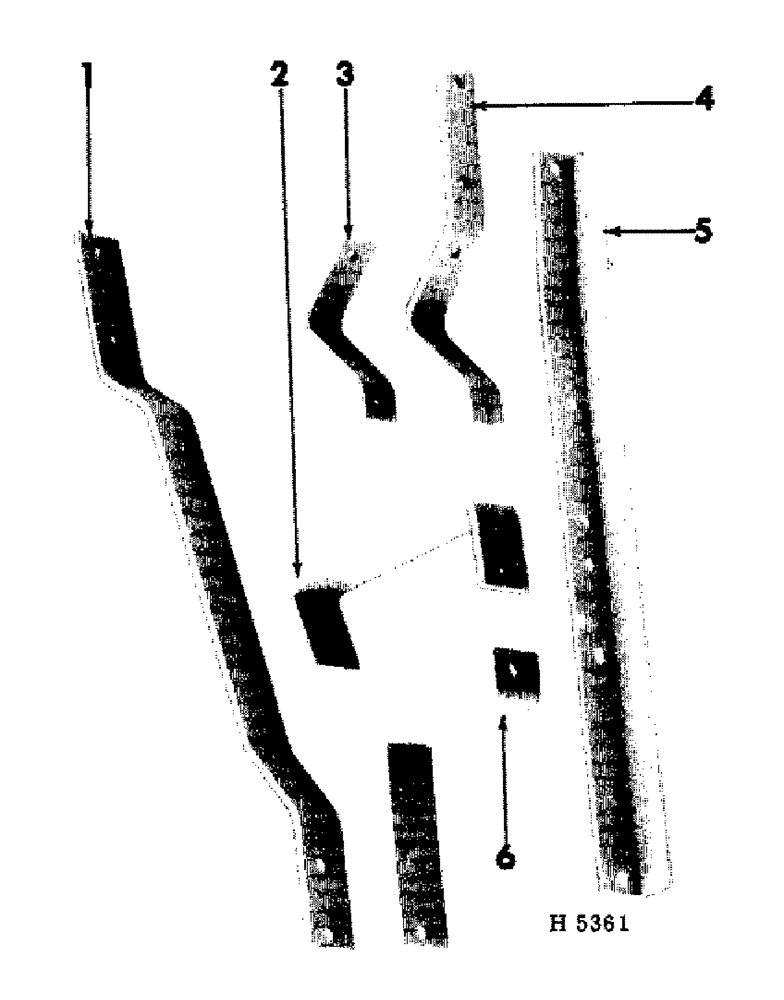

Запчасти Case IH 100 (04-08) - HOPPER MOUNTING SUPPORTS

1

604939R1

SUPPORT, hopper rear

1шт.

3/8 X 1" MACH. BOLT W/NUT

3шт.

3/8 X 1-1/8" MACH. BOLT W/NUT (At connecting plate)

1шт.

3/8" LOCK WASHER

4шт.

2

604937R1

BRACE, mounting support

1шт.

3/8 X 1-1/4" MACH. BOLT W/NUT

3шт.

3/8 X 1-3/4" MACH. BOLT W/NUT

1шт.

3/8" LOCK WASHER

4шт.

3

604935R1

FOOT, connecting plate front (15 ft. & 18 ft.)

1шт.

3/8 X 1-1/4" MACH. BOLT W/NUT

2шт.

3/8" LOCK WASHER

2шт.

4

604938R1

FOOT, hopper front

1шт.

3/8 X 7/8" MACH. BOLT W/NUT

2шт.

3/8 X 1-1/8" MACH. BOLT W/NUT

2шт.

3/8" LOCK WASHER

4шт.

5

604962R1

ANGLE, front support

1шт.

3/8 X 1" MACH. BOLT W/NUT (15 ft. & 18 ft.)

1шт.

13/32 X 1-1/4 X 11 GAUGE WASHER (15 ft. and 18 ft.)

1шт.

3/8" LOCK WASHER (15 ft. and 18 ft.)

1шт.

6

604936R11

PLATE ASSEMBLY, mounting

1шт.

1/2 X 1-1/2" MACH. BOLT W/NUT

1шт.

1/2 X 8" CAD-PLTD. MACH. BOLT W/NUT

1шт.

1/2" HEX. NUT (On stud)

1шт.

1/2" LOCK WASHER (1 - on stud)

2шт.

1/2" CAD-PLTD. LOCK WASHER

1шт.
