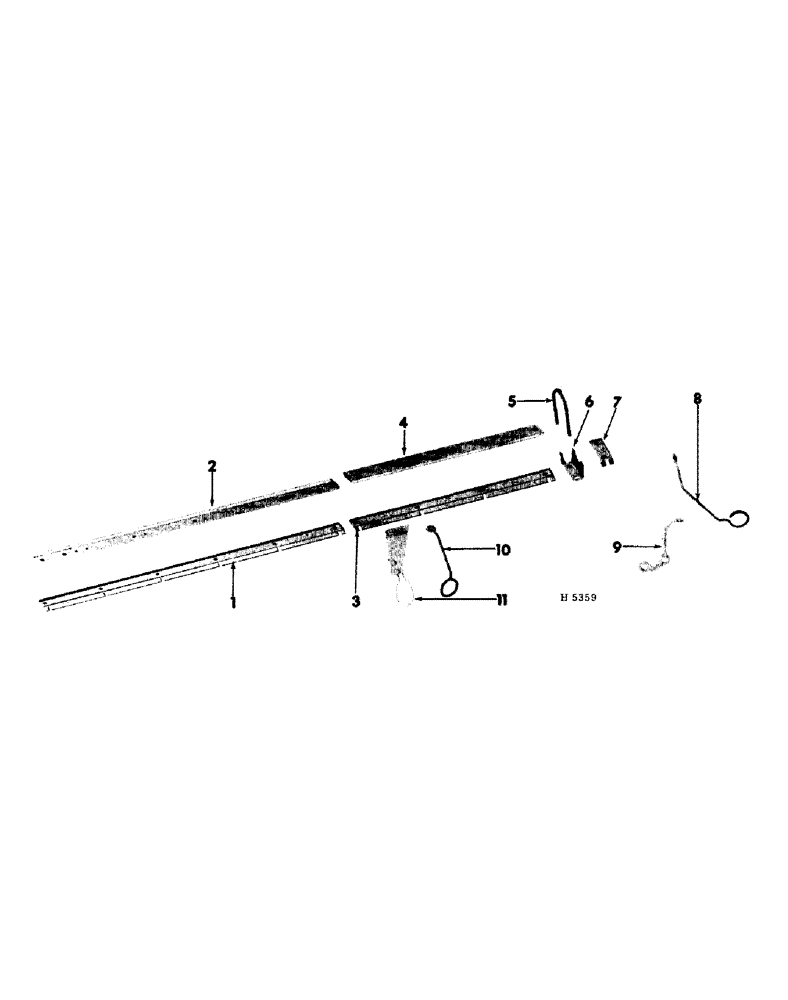

Запчасти Case IH 100 (04-07) - GRAIN TUBE HOLDERS

1

604982R1

STRAP, grain tube support (1960-61)

1шт.

2

606334R2

STRAP, grain tube support (1961-)

1шт.

3

604981R1

STRAP, grain tube front support (1960-61)

1шт.

4

606333R2

STRAP, grain tube front support (1961-)

1шт.

5

604977R1

"U" BOLT, support strap

1шт.

3/8" HEX. NUT

2шт.

3/8" LOCK WASHER

2шт.

6

604983R1

CHANNEL, grain tube support strap

1шт.

6

606332R11

CHANNEL, grain tube support strap (Front tube only) (1961-62)

1шт.

7

604979R1

STRAP, grain tube support (Second tube only) (1960-61)

1шт.

8

604978R1

HOLDER

front grain tube

1шт.

3/4 X 2-3/4" CAD-PLTD. MACH. BOLT W/NUT

1шт.

25/32 X 1-1/4 X 16 GA. WASHER

1шт.

3/4" CAD-PLTD. LOCK WASHER

1шт.

9

607156R1

RING, SNAP

GUIDE, tube (At disk bearing) (1962-)

1шт.

10

604980R1

HOLDER, grain tbe (1960-61)

1шт.

3/8 X 1-1/8" MACH. BOLT W/NUT

1шт.

13/32 X 7/8 X 16 GA. WASHER

1шт.

3/8" LOCK WASHER

1шт.

11

606329R11

HOLDER ASSEMBLY, front grain tube (1961- 62)

1шт.

1/4 X 7/8" HEX-HD. MACH. BOLT W/NUT

2шт.

13/32 X 7/8 X 16 GA. WASHER

1шт.

1/4" LOCK WASHER

2шт.

11

606330R11

HOLDER ASSEMBLY, grain tube (1961-62)

1шт.

1/4 X 7/8" HEX-HD. BOLT W/NUT

2шт.

13/32 X 7/8 X 16 GA. WASHER

2шт.

1/4" LOCK WASHER

2шт.

11

606830R11

HOLDER ASSEMBLY, grain tube (1962-)

1шт.

1/4 X 7/8" HEX-HD. BOLT W/NUT

2шт.

9/32 X 3/4 X 18 GA. WASHER

2шт.

1/4" LOCK WASHER

2шт.
