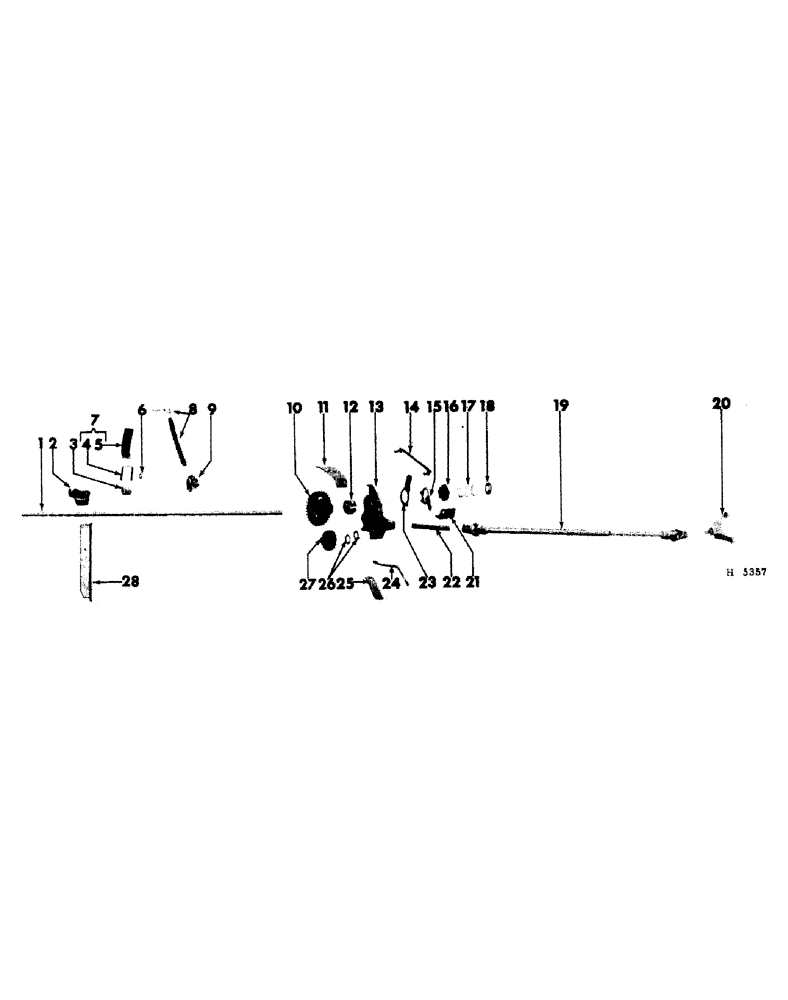

Запчасти Case IH 100 (04-06) - GRAIN DRIVE AND CLUTCH ASSEMBLY

1

605089R1

COUNTERSHAFT, grain drive (12 ft.)

1шт.

1/4 X 1-1/2" COTTER PIN

2шт.

5/16 X 1-1/2" COTTER PIN

2шт.

15/16 X 1-1/2 X 16 GA. WASHER

1шт.

1

605090R1

COUNTERSHAFT, grain drive (15 ft.)

1шт.

1/4 X 1-1/2" COTTER PIN

3шт.

5/16 X 1-1/2" COTTER PIN

2шт.

15/16 X 1-1/2 X 16 GA. WASHER

1шт.

1

605091R1

COUNTERSHAFT, grain drive (18 ft.)

1шт.

1/4 X 1-1/2" COTTER PIN

3шт.

5/16 X 1-1/2" COTTER PIN

2шт.

15/16 X 1-1/2 X 16 GA. WASHER

1шт.

2

600701R1

BEARING, countershaft

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

3/8 X 1-3/4" MACH. BOLT W/NUT

2шт.

3/8" LOCK WASHER

2шт.

3

F16678

ROLLER, chain tightener

1шт.

3/8 X 2-3/8" STD-HD. DLD. PIN

1шт.

1/8 X 3/4" COTTER PIN

1шт.

4

F16679

BRACKET, chain idler

1шт.

1/4 X 1/2" RD-HD. RIVET

1шт.

5

604960R1

ARM, chain idler

1шт.

3/8 X 3/4" MACH. BOLT W/NUT

1шт.

3/8" LOCK WASHER

1шт.

6

F16686

LOCK, chain tightener pin

1шт.

7

604968R91

ARM ASSEMBLY, chain idler, Composed of:

1шт.

604960R1

ARM

1шт.

F16679

BRACKET

1шт.

104082

RIVET,But Hd, 1/4" x 5/8"

1шт.

3/8 X 3/4" MACH. BOLT W/NUT

1шт.

3/8" LOCK WASHER

1шт.

8

CHAIN ASSEMBLY, grain drive (Consists of 19 - no. 51 malleable chain links and 1 - N12432 coupler link) (For an assembled chain order 1 - CM51 10 ft. length of chain and reduce to 19 links and add 1 - N12432 coupler link)

1шт.

9

604930R11

SPROCKET, countershaft split drive

1шт.

5/16 x 1-3/16" straight pin

1шт.

10

600903R1

GEAR, countershaft

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

11

600720R2

SHIELD, bevel gear

1шт.

1/4 X 1/2" MACH. BOLT

3шт.

1/4" LOCK WASHER

3шт.

12

601666R1

RACE, bevel gear bearing

1шт.

13

601667R1

BRACKET, bevel gear

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

14

604933R11

LINK ASSEMBLY, clutch shifter

1шт.

3/16 X 1" COTTER PIN

2шт.

21/32 X 1 X 22 GA. WASHER

2шт.

15

600902R2

CAM, clutch

1шт.

16

600899R1

CLUTCH, grain drive

1шт.

5/16 X 1-3/16" STRAIGHT PIN

1шт.

17

M1456

SPRING, clutch

1шт.

18

600729R1

RETAINER, clutch spring

1шт.

19

601187R91

JOINT ASSEMBLY, universal

1шт.

3/8 X 2-1/8" MACH. BOLT W/NUT

2шт.

3/8" LOCK WASHER

2шт.

20

604932R11

CAP ASSEMBLY, land wheel

1шт.

1/2 - 20 NF X 2" CAD-PLTD. HEX-HD. MACH. BOLT

3шт.

1/2" CAD-PLTD. LOCK WASHER

3шт.

21

600898R1

STOP, clutch cam

1шт.

22

600732R1

SHAFT, bevel pinion

1шт.

15/16 X 1-1/2 X 16 GA. WASHER

1шт.

23

600901R2

CAM, clutch shifter

1шт.

24

604934R1

STUD, bevel gear bracket locking

1шт.

1/2" HEX. NUT

2шт.

1/2" LOCK WASHER

2шт.

25

604940R1

PLATE, feed drive attaching

1шт.

1/2 X 8-1/2" CAD-PLTD. MACH. BOLT W/NUT

1шт.

1/2" CAD-PLTD. LOCK WASHER

1шт.

26

601665R1

WASHER, thrust

1шт.

27

600700R2

PINION, bevel

1шт.

3/8 X 2" MACH. BOLT W/NUT

1шт.

3/8" LOCK WASHER

1шт.

28

606213R1

SUPPORT, bearing countershaft (12 ft.) (1961-)

1шт.

1/2 X 7-1/2" CAD-PLTD. MACH. BOLT W/NUT

2шт.

3/8 X 1-1/4" HEX-HD. MACH. BOLT W/NUT

4шт.

1/2" CAD-PLTD. LOCK WASHER

2шт.

3/8" LOCK WASHER

4шт.
