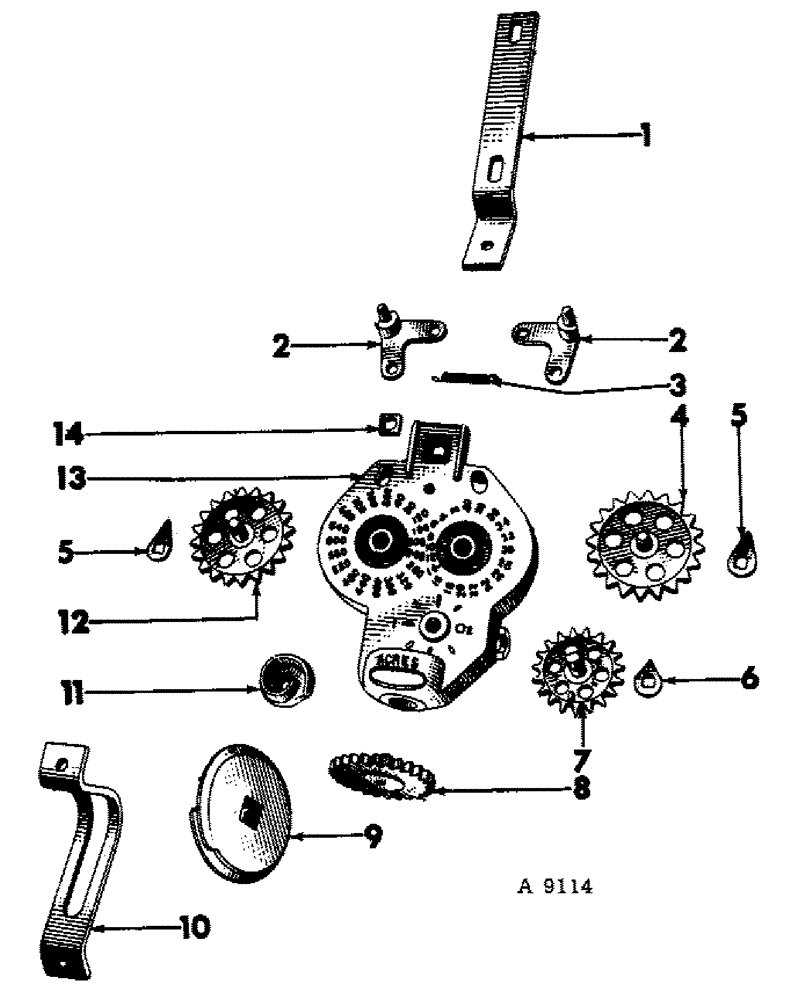

Запчасти Case IH 100 (04-05) - LAND MEASURE ASSEMBLY

1

N62808

BRACKET, land measure

1шт.

3/8 X 3/4" MACH. BOLT W/NUT

2шт.

3/8" LOCK WASHER

2шт.

2

N2591

STOP, gear

2шт.

1/4 X 1-1/8" RD-HD. RIVET

1шт.

3

N62683

SPRING

gear stop

1шт.

4

N2586

GEAR, 20T worm (2-40 acres)

1шт.

3/32 X 5/8" COTTER PIN

1шт.

5

N62677

POINTER, indicator long

2шт.

6

N62678

POINTER, indicator short

1шт.

7

N2585

GEAR

19T worm

1шт.

3/32 X 5/8" COTTER PIN

1шт.

8

620775R1

GEAR

28T outside case worm (12 ft.)

1шт.

1/4 X 1-1/4" SQ-HD. MACH. BOLT W/NUT

1шт.

1/4" LOCK WASHER

1шт.

8

620961R1

GEAR

22T outside case worm (15 ft.)

1шт.

1/4 X 1-1/4" SQ-HD. MACH. BOLT W/NUT

1шт.

1/4" LOCK WASHER

1шт.

8

600421R1

GEAR, 19T outside case worm (18 ft.)

1шт.

1/4 X 1-1/4" SQ-HD. MACH. BOLT W/NUT

1шт.

1/4" LOCK WASHER

1шт.

9

N2592

WORM, land measure

1шт.

10

N62610

BRACKET, worm

1шт.

1/4 X 3/4" MACH. BOLT W/NUT

2шт.

1/4" LOCK WASHER

2шт.

11

N2588

CAM, left worm

1шт.

12

N2587

GEAR, 20T worm (40-800 acres)

1шт.

3/32 X 5/8" COTTER PIN

1шт.

13

N2584

CASE, land measure

1шт.

3/8 X 7/8" MACH. BOLT

1шт.

3/8" LOCK WASHER

1шт.

3/8" WING NUT

1шт.

13

600455R91

LAND MEASURE ASSEMBLY, less hanger (12 ft.)

1шт.

13

600423R91

LAND MEASURE ASSEMBLY, less hanger (15 ft.)

1шт.

13

600424R91

LAND MEASURE ASSEMBLY, less hanger (18 ft.)

1шт.

14

N62810

NUT, lock

1шт.
