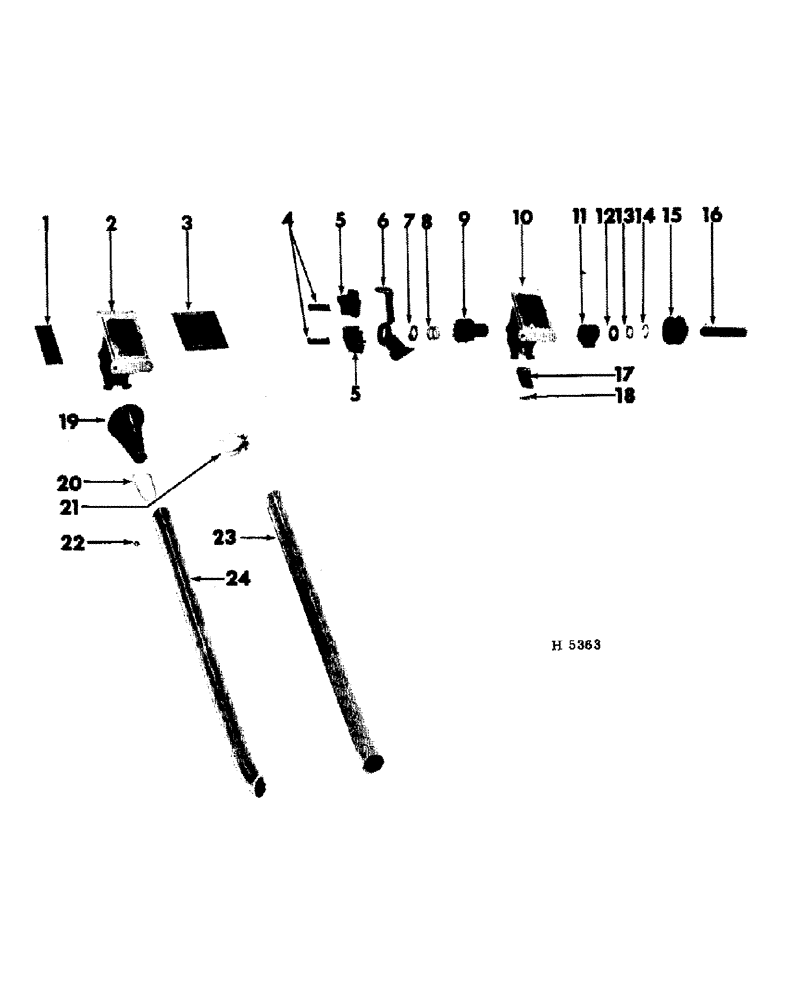

Запчасти Case IH 100 (04-04) - GRAIN FEED SHAFT ASSEMBLY

1

N32163

BOTTOM, end grain

1шт.

2

601462R91

SHELL ASSEMBLY, fluted feed, Composed of

1шт.

601434R1

BLOCK

1шт.

601435R1

ROLL

1шт.

601461R91

INSERT

SHELL ASSEMBLY

1шт.

3

N42310

BOTTOM, intermediate

1шт.

4

604942R1

CLIP, sprocket retaining

1шт.

5

604931R1

SPROCKET ASSY.

SPROCKET, grain shaft split

1шт.

1/4 X 7/8" HEX-SOC-HD. CAP SCREW

4шт.

6

600698R1

HANGER, grain sprocket

1шт.

1/4 X 5/8" MACH. BOLT W/NUT

2шт.

1/4" LOCK WASHER

2шт.

7

N11791

WASHER

11/16 x 13/16" hole x 1-7/16" x 16 gauge

1шт.

8

N11729

SPRING, feed

1шт.

9

601435R1

ROLL, fluted feed

1шт.

10

601461R91

INSERT

SHELL ASSEMBLY, fluted feed (Less roll and block)

1шт.

1/4 X 5/8" MACH. BOLT W/NUT

4шт.

1/4" LOCK WASHER

4шт.

11

601434R1

BLOCK, shut-off

1шт.

12

N11720

WASHER

21/32 sq-hole x 1-1/2 x 12 gauge

1шт.

13

602106R1

SQ HOLE WASHER

21/32 sq-hole x 1-3/16 x 32 gauge

1шт.

14

602105R1

WASHER, 21/32 slt-hole x 1-1/4 x 32 gauge

1шт.

15

F9199

SPOOL, grain shaft shifter

1шт.

3/16 X 1-1/4" RD-HD. RIVET

1шт.

16

600690R2

SHAFT, grain feed (81-1/8" long)

1шт.

3/16 X 1-1/8" COTTER PIN (24-12 ft.) (20-15 ft.) (24-18 ft.)

1шт.

16

600691R2

SHAFT, grain feed (81-1/8" long)

1шт.

3/16 X 1-1/8" COTTER PIN (24-12 ft.) (20-15 ft.) (24-18 ft.)

1шт.

16

600692R2

SHAFT, grain feed (15 ft.) (39-1/8" long)

1шт.

3/16 X 1-1/8" COTTER PIN

20шт.

17

602166R91

BOTTOM ASSEMBLY, feed cup dump, Composed of:

1шт.

BOTTOM (NSS)

1шт.

F15517

LATCH

1шт.

18318R1

RIVET

1шт.

3/16 X 2" COTTER PIN

1шт.

18

F15517

LATCH, dump bottom

1шт.

3/16 X 9/32" TRUSS-HD. RIVET

1шт.

19

605093R1

RECEIVER, tube (1960-62)

1шт.

19

606627R1

RECEIVER, tube (1962-) 1" ID, 1.19" OD, 4.56" Length

1шт.

20

605951R2

SPRING, grain tube retainer (1960-62)

1шт.

21

995219R1

CLIP

CLAMP, hose (1962-)

1шт.

22

451313R1

GROMMET, grain tube (1960-62)

1шт.

23

604966R11

TUBE ASSEMBLY, grain (1960-61) (Front tube only 1961-62), Composed of:

1шт.

451313R1

GROMMET

2шт.

TUBE (NSS)

1шт.

23

604966R1

TUBE, front grain (1962-) 1.187" ID, 25" Length

1шт.

24

606328R11

TUBE

ASSEMBLY, grain (1961-62), Composed of:

1шт.

451313R1

GROMMET

2шт.

TUBE (NSS)

1шт.

24

606328R1

TUBE,26" Length

grain (1962-)

1шт.
