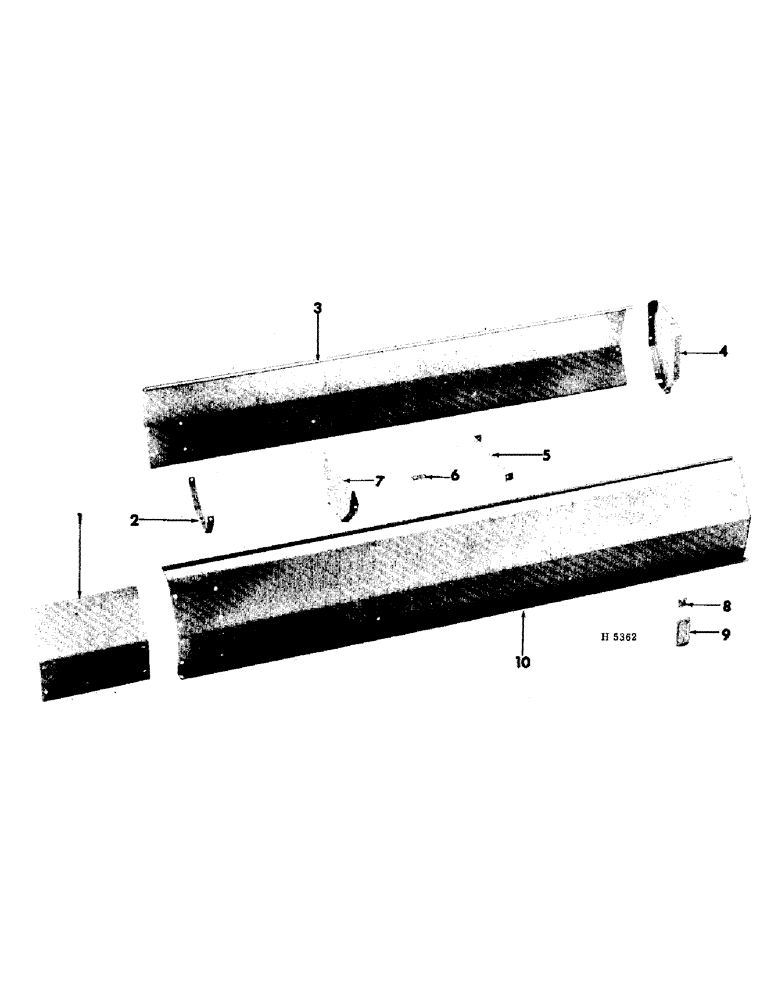

Запчасти Case IH 100 (04-03) - HOPPER ASSEMBLY

1

604951R1

PLATE, box connecting (15 & 18 ft.)

1шт.

3/8 X 3/4" MACH. BOLT W/NUT (5 - rear, 6 - front)

1шт.

3/8" LOCK WASHER (5 - rear, 6 - front)

1шт.

2

N42953

BRACE, lower inside box (12 & 18 ft.)

1шт.

3/8 X 3/4" MACH. BOLT W/NUT

4шт.

3/8" LOCK WASHER

4шт.

3

604955R2

SIDE, hopper rear 18 x 7 (15 ft.)

1шт.

3

604956R2

SIDE, hopper front 24 x 7 (12 & 18 ft.)

1шт.

3

604957R2

SIDE, hopper rear 24 x 7 (12 & 18 ft.)

1шт.

4

N42961

HEAD, hopper

1шт.

5/16 X 5/8" SLTD-RD-HD. MACH. SCREW W/NUT

2шт.

3/8 X 3/4" MACH. BOLT W/NUT (4 - 12 ft., 2 - 15 & 18 ft.)

1шт.

3/8 X 1-1/8" MACH. BOLT W/NUT

4шт.

3/8 X 1-1/4" MACH. BOLT W/NUT (15 & 18 ft.)

2шт.

5/16" LOCK WASHER

2шт.

3/8" LOCK WASHER

8шт.

5

604941R1

BRACE, upper inside hopper

1шт.

5/16 X 3/4" MACH. BOLT W/NUT

2шт.

5/16" LOCK WASHER

2шт.

6

611636R1

PLATE, lid hinge backing

1шт.

7/16 X 3/4" HEX-HD. MACH. BOLT W/NUT (15 & 18 ft.)

1шт.

1/4 X 3/8" RD-HD-SLTD. MACH. SCREW W/NUT

2шт.

7/16" LOCK WASHER (15 & 18 ft.)

1шт.

1/4" LOCK WASHER

2шт.

7

N42954

PLATE, baffle

1шт.

3/8 X 5/8" MACH. BOLT W/NUT

3шт.

3/8 X 7/8" MACH. BOLT W/NUT

1шт.

3/8" LOCK WASHER

4шт.

8

603229R1

RETAINER, grain vision window

1шт.

1/4 X 1/2" SLTD-RD-HD. MACH. SCREW W/NUT

1шт.

1/4" LOCK WASHER

1шт.

9

603264R1

GLASS

WINDOW, grain vision

1шт.

10

604952R2

SIDE, hopper front 12 x 7 (15 & 18 ft.)

1шт.

10

604953R2

SIDE, hopper rear 12 x 7 (15 & 18 ft.)

1шт.

10

604954R2

SIDE, hopper front 18 x 7 (15 ft.)

1шт.
