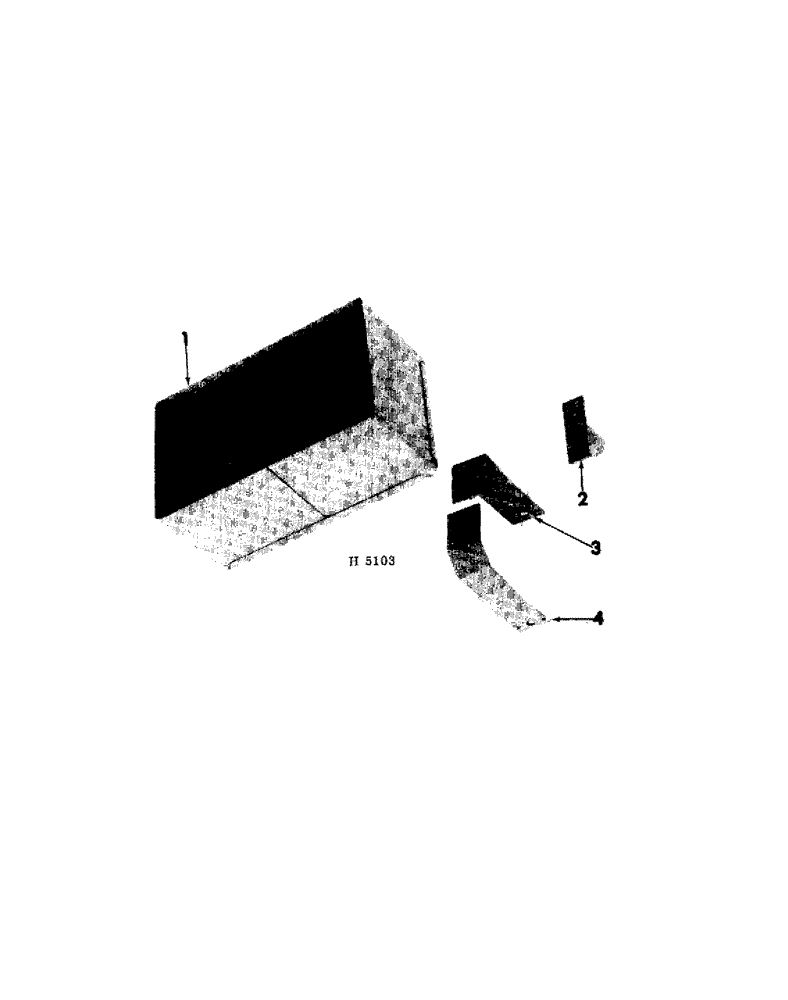

Запчасти Case IH 100 (03-15[A]) - DUAL REAR FURROW WHEEL WEIGHT BOX ATTACHMENT

1

604786R91

BOX ASSEMBLY, weight

1шт.

2

60486R91

STRAP ASSEMBLY, weight box reinforcement

1шт.

1/2 X 1-1/8" MACH. BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

3

604783R11

SUPPORT ASSEMBLY, weight box left

1шт.

1/2 X 1-1/8" MACH. BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

4

604784R1

SUPPORT, weight box right

1шт.

1/2 X 1-1/8" MACH. BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.
