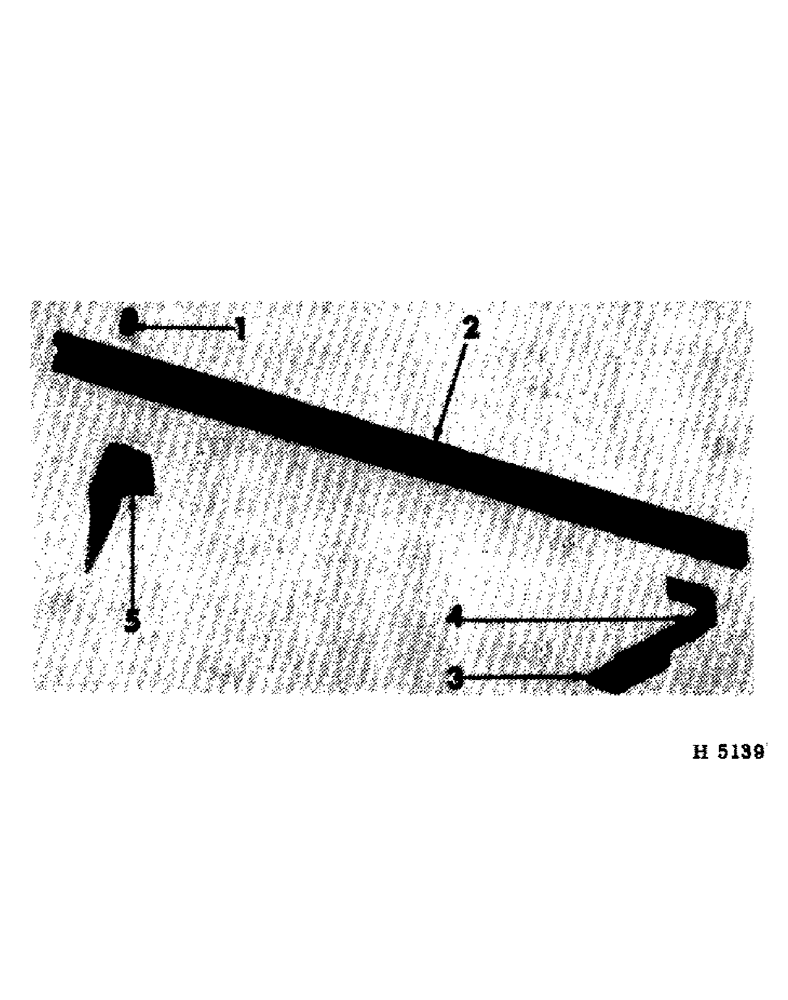

Запчасти Case IH 100 (03-13) - SCRAPER ATTACHMENT

1

605210R1

SPACER,1/2" X-Strng Pipe x 1 1/8"

channel support

1шт.

2

604809R1

CHANNEL, scraper

1шт.

3

605245R1

BLADE, scraper

1шт.

3/8 X 1" BUTTON-HD. RIVET

2шт.

4

605246R91

SCRAPER ASSEMBLY, disk, Composed of:

1шт.

605245R1

BLADE

1шт.

BRACKET (NSS)

1шт.

NLS

NO LONGER SERVICED

2шт.

1/2 X 1-1/8" CARRIAGE BOLT W/NUT

1шт.

1/2" LOCK WASHER

1шт.

5

604799R1

SUPPORT, scraper channel (1960-61)

1шт.

551778R1

CARRIAGE BOLT,3/8" - 16 x 1 3/8", Grade 5

3/8 X 1-3/8" CARRIAGE BOLT W/NUT

2шт.

1/2 X 1-7/8" MACH. BOLT W/NUT

1шт.

1/2 X 2-1/4" MACH. BOLT W/NUT (At spacer)

1шт.

13/32 X 3/4 X 16 GA. WASHER

2шт.

17/32 X 1-3/4 X 3/16" WASHER (At spacer)

1шт.

3/8" LOCK WASHER

2шт.

1/2" LOCK WASHER

1шт.

5

605995R1

SUPPORT, scraper channel (1961-)

1шт.

551778R1

CARRIAGE BOLT,3/8" - 16 x 1 3/8", Grade 5

3/8 X 1-3/8" CARRIAGE BOLT W/NUT

2шт.

1/2 X 1-7/8" MACH. BOLT W/NUT

1шт.

1/2 X 2-1/4" MACH. BOLT W/NUT (At spacer)

1шт.

13/32 X 3/4 X 16 GA. WASHER

2шт.

17/32 X 1-3/4 X 3/16" WASHER (At spacer)

1шт.

3/8" LOCK WASHER

2шт.

1/2" LOCK WASHER

1шт.
