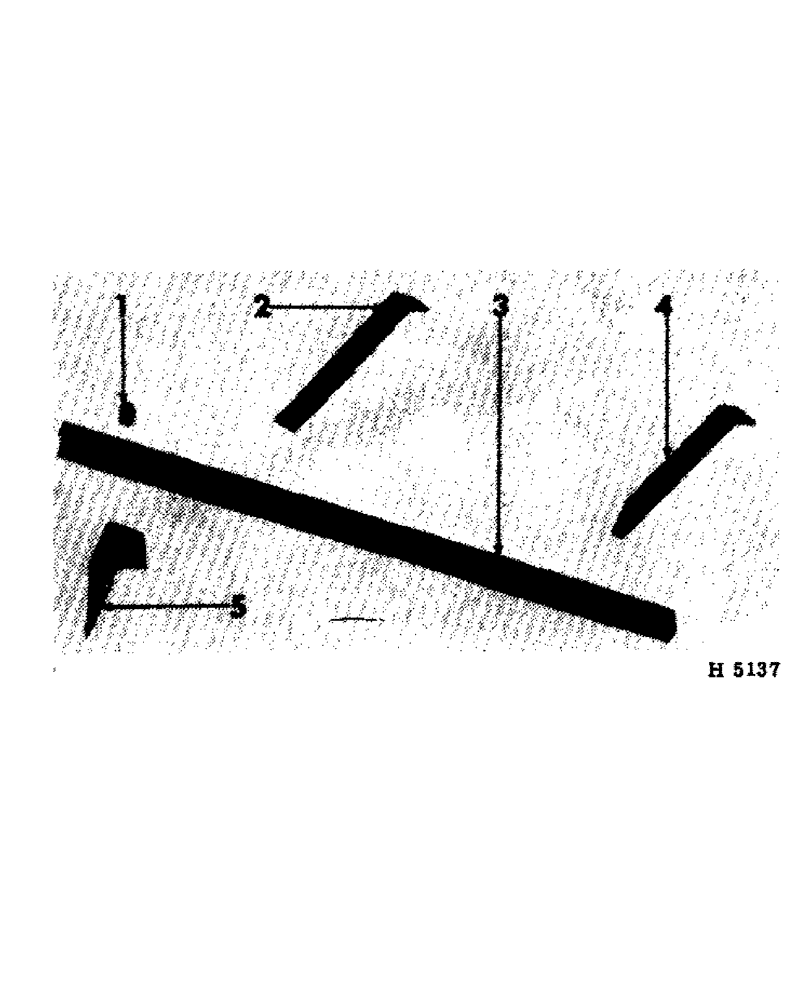

Запчасти Case IH 100 (03-13[A]) - TRASH BAR ATTACHMENT

1

605210R1

SPACER,1/2" X-Strng Pipe x 1 1/8"

support channel

1шт.

2

604802R1

PRONG, trash bar (1960-61)

1шт.

3/8 X 1" CARRIAGE BOLT W/NUT

1шт.

3/8" LOCK WASHER

1шт.

2

605993R1

PRONG, trash bar (1961-)

1шт.

3/8 X 1" CARRIAGE BOLT W/NUT

1шт.

3/8" LOCK WASHER

1шт.

3

604809R1

CHANNEL, trash bar support

1шт.

4

604803R1

PRONG, trash bar (At gang connection) (1960-61)

1шт.

3/8 X 1" CARRIAGE BOLT W/NUT

1шт.

3/8" LOCK WASHER

1шт.

4

605994R1

PRONG, trash bar (At gang connection) (1961-)

1шт.

3/8 X 1" CARRIAGE BOLT W/NUT

1шт.

3/8" LOCK WASHER

1шт.

5

604799R1

SUPPORT, trash bar (1960-61)

1шт.

551778R1

CARRIAGE BOLT,3/8" - 16 x 1 3/8", Grade 5

3/8 X 1-3/8" CARRIAGE BOLT W/NUT

2шт.

1/2 X 1-7/8" MACH. BOLT W/NUT

1шт.

1/2 X 2-1/4" MACH. BOLT W/NUT (At spacer)

1шт.

13/32 X 3/4 X 16 GAUGE WASHER

2шт.

17/32 X 1-3/4 X 16 GAUGE WASHER (At spacer)

1шт.

3/8" LOCK WASHER

2шт.

1/2" LOCK WASHER

1шт.

5

605995R1

SUPPORT, trash bar (1961-)

1шт.

3/8 X 1-3/8" CARRIAGE BOLT W/NUT

2шт.

1/2 X 1-7/8" MACH. BOLT W/NUT

1шт.

1/2 X 2-1/4" MACH. BOLT W/NUT (At spacer)

1шт.

13/32 X 3/4 X 16 GAUGE WASHER

2шт.

17/32 X 1-3/4 X 16 GAUGE WASHER (At spacer)

1шт.

3/8" LOCK WASHER

2шт.

1/2" LOCK WASHER

1шт.
