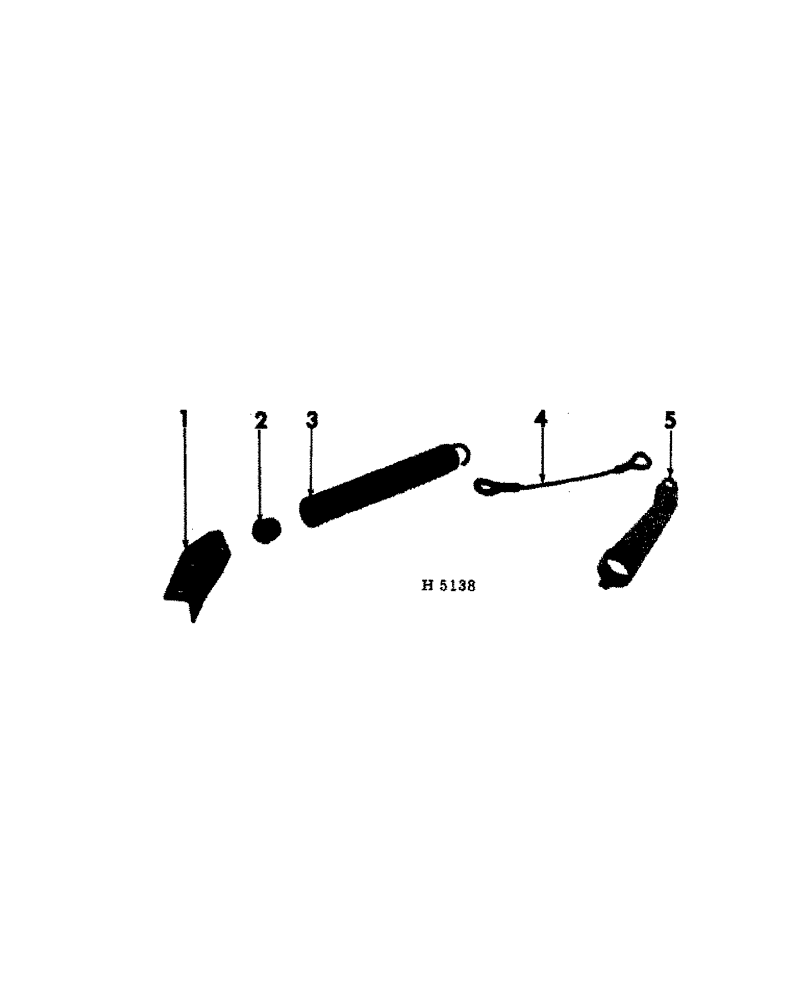

Запчасти Case IH 100 (03-12[B]) - REAR WHEEL RETURN SPRING ATTACHMENT

1

604975R1

ANCHOR, return spring

1шт.

1/2 X 4-1/2" MACH. BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

2

600030R1

PLUG, return spring

1шт.

1/2 X 4-3/4" SQ-HD. MACH. BOLT W/NUT (Long thread)

1шт.

3

600031R1

SPRING, return

1шт.

4

604976R91

CABLE, return spring

1шт.

5

604974R1

ARM, return spring

1шт.

3/8 X 1-3/8" MACH. BOLT W/NUT

1шт.

5/8 X 1-5/8" STD-HD. DLD. PIN

1шт.

3/16 X 1" COTTER PIN

1шт.

3/8" LOCK WASHER

1шт.
