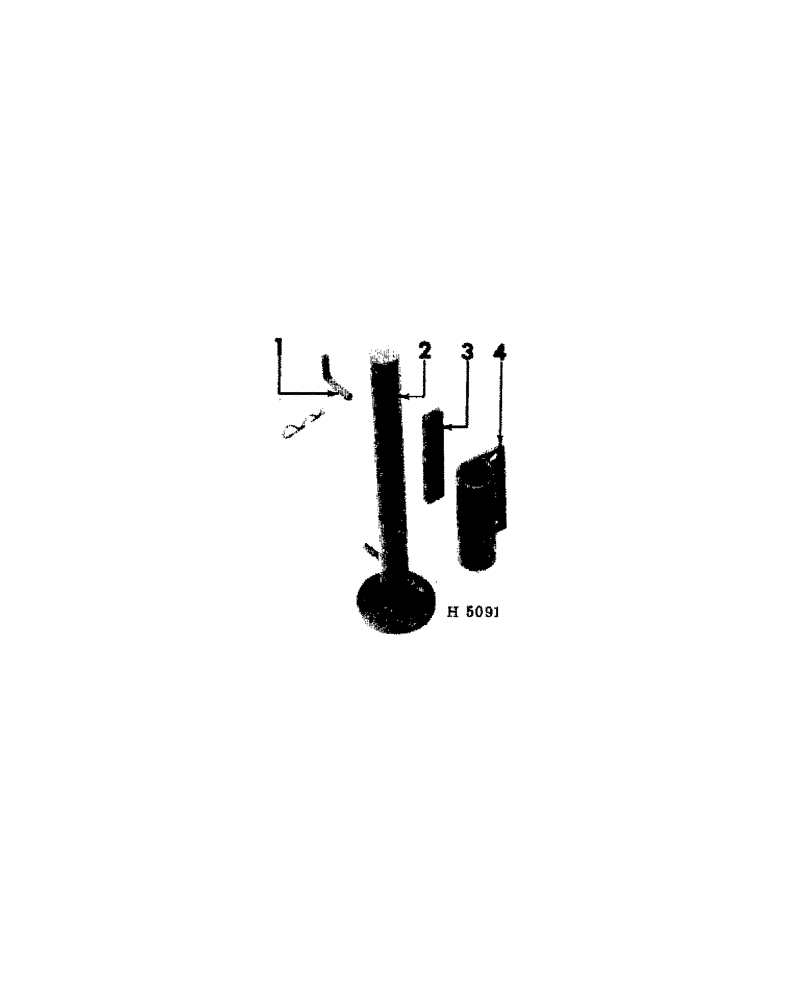

Запчасти Case IH 100 (03-12[A]) - FRONT STAND ATTACHMENT (USED 1960-63)

1

602801R1

PIN

locking

1шт.

591107R1

COTTER PIN

QUICK-ATTACHABLE COTTER PIN

1шт.

2

604758R11

SPINDLE ASSEMBLY, front stand

1шт.

3

604761R1

SPACER, front stand (For use with seeding attachment)

1шт.

3/4 X 3-3/4" MACH. BOLT W/NUT

1шт.

3/4 X 4" MACH. BOLT W/NUT

1шт.

3/4" LOCK WASHER

2шт.

4

604760R1

BRACKET, front stand support

1шт.

3/4 X 2-1/2" MACH. BOLT W/NUT

2шт.

3/4" LOCK WASHER

1шт.
