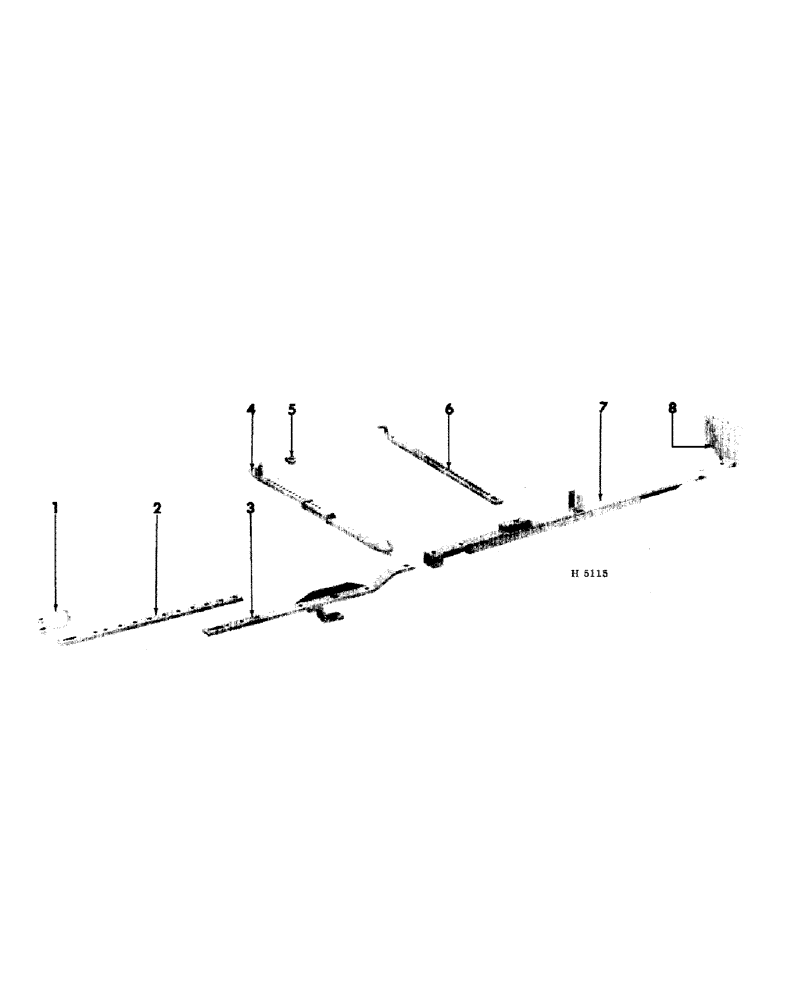

Запчасти Case IH 100 (03-07) - HITCH ASSEMBLY

1

PO13563

CLEVIS COUPLING

CLEVIS, tractor hitch

1шт.

3/4 X 3-1/2" STD-HD. DLD. PIN

1шт.

1/4 X 1-1/4" COTTER PIN

1шт.

2

604677R1

EXTENSION, hitch

1шт.

3/4 X 2-1/2" CAD-PLTD. MACH. BOLT W/NUT

2шт.

3/4" CAD-PLTD. LOCK WASHER

2шт.

3

604674R11

BAR ASSEMBLY, hitch

1шт.

604683R1

HEADED PIN,1" x 4 1/2"

1 X 4-1/2" STD-HD. DLD. PIN

1шт.

1/4 X 1-3/4" COTTER PIN

1шт.

4

604684R91

LINK ASSEMBLY, guide

1шт.

5/8 X 2-1/8" STD-HD. DLD. PIN

1шт.

517843R1

COTTER PIN

QUICK-ATTACHABLE COTTER PIN

1шт.

5/16 X 1-1/2" COTTER PIN

1шт.

5

PO1517

STEERING KNUCKLE

KNUCKLE, front steering arm

1шт.

6

601078R2

STABILIZER

1шт.

5/8 X 2" CAD-PLTD. MACHINE BOLT W/NUT (For transport)

1шт.

PO20069

7/8 X 4-7/8" STD-HD. DLD. PIN

1шт.

517843R1

COTTER PIN

QUICK-ATTACHABLE COTTER PIN

1шт.

5/8" CAD-PLTD. LOCK WASHER (For transport)

1шт.

7

604681R12

MEMBER ASSEMBLY, main hitch front (12 ft.)

1шт.

551681R1

7/8 X 2-1/2" STD-HD. DLD. PIN

1шт.

1/4 X 1-1/2" COTTER PIN

1шт.

7

604682R12

MEMBER ASSEMBLY, main hitch front (15 ft. & 18 ft.)

1шт.

551681R1

7/8 X 2-1/2" STD-HD. DLD. PIN

1шт.

1/4 X 1-1/2" COTTER PIN

1шт.

8

604619R11

SUPPORT ASSEMBLY, hitch

1шт.

1/2 X 7-1/4" CAD-PLTD. MACH. BOLT W/NUT

6шт.

1/2" CAD-PLTD. LOCK WASHER

6шт.
