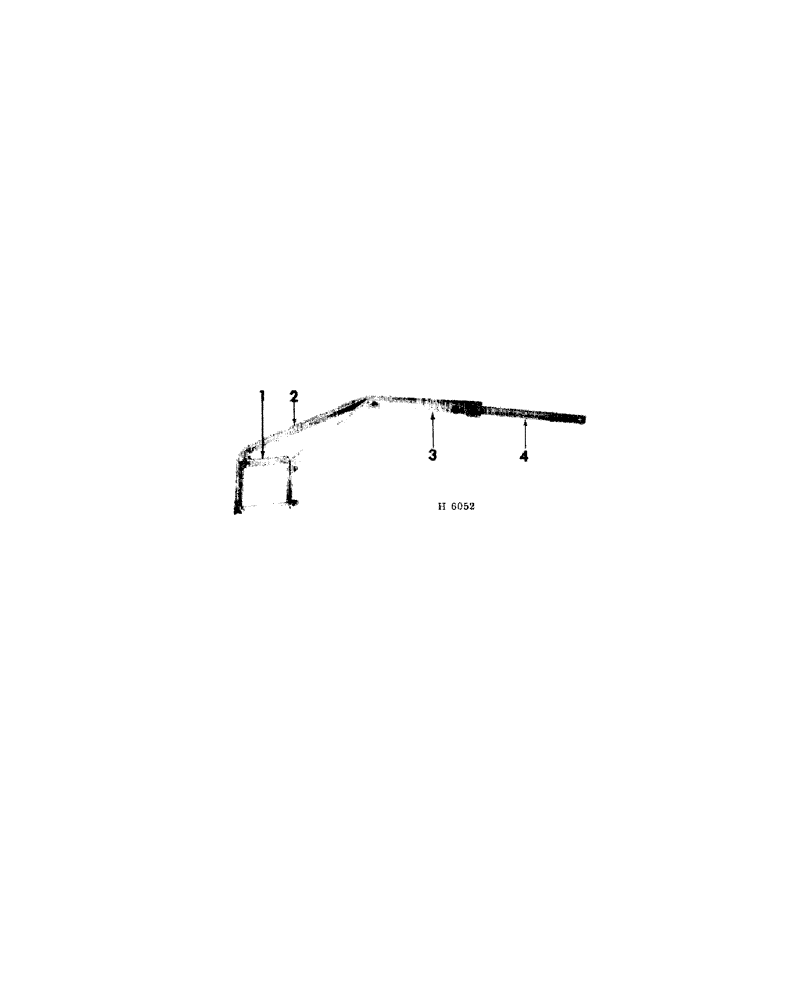

Запчасти Case IH 100 (03-07[A]) - PACKER HITCH ATTACHMENT

1

606131R11

BRACKET, locating

1шт.

1/2" HEX. NUT

1шт.

1/2" LOCK WASHER

1шт.

1/2 X 1-1/2" HEX-HD. MACH. BOLT W/NUT

1шт.

1/2" LOCK WASHER

1шт.

2

606220R1

BRACE, upper hitch

1шт.

1/2 X 1-3/8" HEX-HD. MACH. BOLT W/NUT

1шт.

1/2" LOCK WASHER

1шт.

3

606221R1

BRACE, lower hitch

1шт.

1/2 X 1-3/8" HEX-HD. MACH. BOLT W/NUT

1шт.

1/2 X 8" HEX-HD. MACH. BOLT W/NUT

1шт.

1/2" LOCK WASHER

2шт.

4

602236R1

STRAP, draw

1шт.

SL771

PIN

5/8 X 1 X 11/16" STD-HD. DLD. PIN

1шт.

3/16 X 1" COTTER PIN

1шт.
