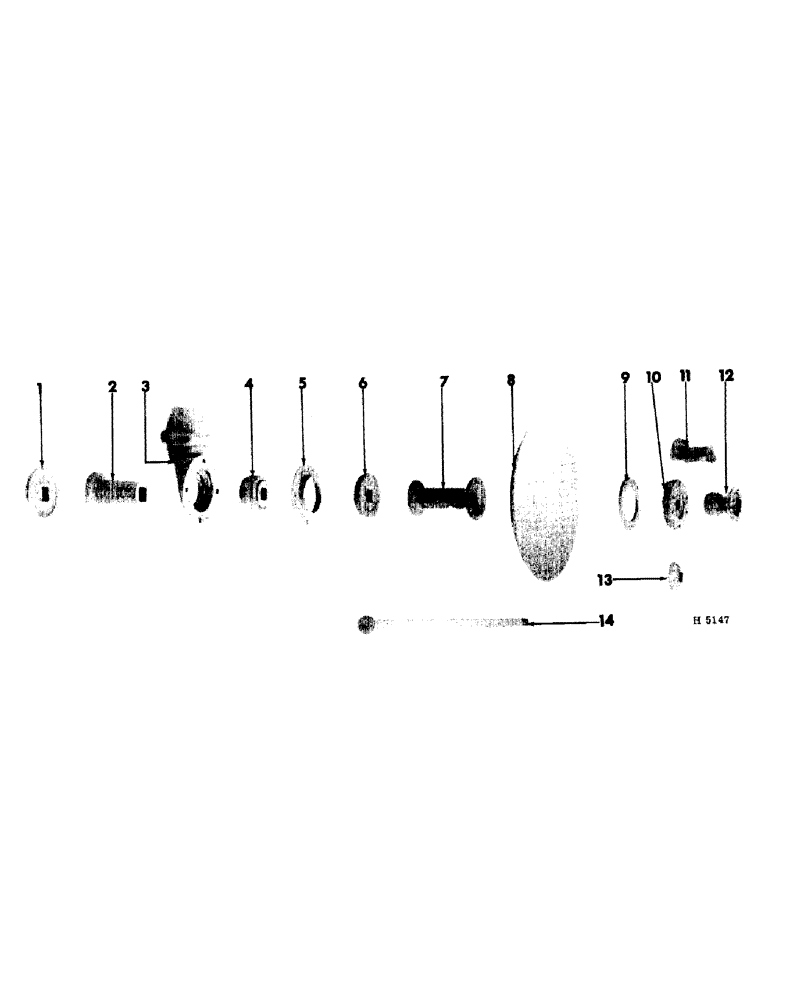

Запчасти Case IH 100 (03-06) - GANG ASSEMBLY

1

604549R1

WASHER, rear gang

1шт.

2

604542R1

SPACER, bearing left

1шт.

3

604566R1

SUPPORT ASSY.

STANDARD, anti-friction bearing

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

3/8 X 3/4" CAD-PLTD. MACH. BOLT

1шт.

3/8 X 1" CAD-PLTD. CARRIAGE BOLT W/NUT

3шт.

1/2 X 3-5/8" STD-HD. DLD. PIN

2шт.

P13333

1/2 X 5/16" SPACER

2шт.

3/16 X 1" COTTER PIN

2шт.

3/8" CAD-PLTD. LOCK WASHER

4шт.

4

ST660

BALL BEARING

BEARING, gang

1шт.

5

652386R1

FLANGE

RETAINER, bearing

1шт.

6

604543R1

SPACER, bearing right

1шт.

7

604554R1

SPOOL, spacing

1шт.

8

604631R1

DISC

DISK, carbon steel (17-13/16" dia. x 9 gauge) (Special)

1шт.

8

606317R1

DISC

DISK, carbon steel (18" dia. x 9 gauge) (Regular)

1шт.

8

605992R1

DISC

DISK, carbon steel (20" dia.) (Special)

1шт.

9

604646R1

WASHER, disk

1шт.

10

604552R1

SUPPORT, flexible gang connection

1шт.

11

604561R1

HUB, flexible gang connection

1шт.

3/8 X 1-1/2" CAD-PLTD. MACH. BOLT W/NUT

1шт.

1/2 X 1-3/8" CAD-PLTD. MACH. BOLT

3шт.

3/8" CAD-PLTD. LOCK WASHER

1шт.

1/2" CAD-PLTD. LOCK WASHER

3шт.

12

604559R1

BALL, flexible gang connection

1шт.

13

604548R1

WASHER, front gang

1шт.

14

604591R2

BOLT, gang arbor

1шт.

427648

NUT

1" HEX. SLTD. NUT

4шт.

3/16 X 3" COTTER PIN

4шт.

615610R1

WASHER

1-1/32 X 2 X 7 GA. WASHER

8шт.

14

604592R2

BOLT, gang arbor rear

1шт.

427648

NUT

1" HEX. SLTD. NUT

4шт.

3/16 X 3" COTTER PIN

4шт.

615610R1

WASHER

1-1/32 X 2 X 7 GA. WASHER

8шт.
