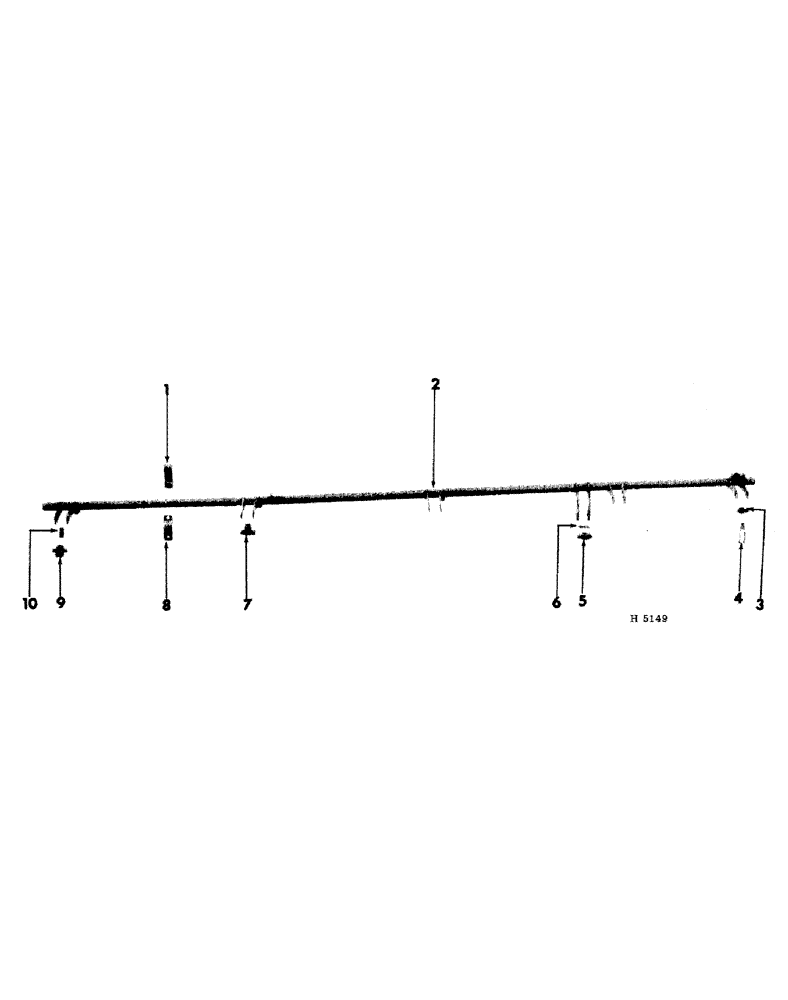

Запчасти Case IH 100 (03-05) - ROCKSHAFT ASSEMBLY

1

604546R1

SUPPORT, rockshaft

1шт.

1/2 X 9-1/2" CAD-PLTD. MACH. BOLT W/NUT

2шт.

1/2 X 10" CAD-PLTD. MACH. BOLT W/NUT (At hitch support bracket)

2шт.

1/2 X 10-1/2" CAD-PLTD. HEX-HD. CAP SCREW W/NUT (At cylinder head bracket)

2шт.

1/2" CAD-PLTD. LOCK WASHER

2шт.

2

604657R91

ROCKSHAFT ASSEMBLY, 12 ft., Composed of:

1шт.

ARM (NSS)

13шт.

BAR (NSS)

1шт.

15188R1

BOLT

1шт.

17673R1

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 2

4шт.

604643R1

BUSHING

1шт.

LEVER (NSS)

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

604556R1

PIVOT

1шт.

604567R1

PIVOT

1шт.

604541R1

PLUG

4шт.

604558R1

RETAINER

1шт.

600373R1

SPACER

5шт.

2

604658R91

ROCKSHAFT ASSEMBLY, 15 ft., Composed of:

1шт.

ARM (NSS)

15шт.

BAR (NSS)

1шт.

15188R1

BOLT

1шт.

17673R1

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 2

5шт.

604643R1

BUSHING

1шт.

LEVER (NSS)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

604556R1

PIVOT

1шт.

604567R1

PIVOT

1шт.

604541R1

PLUG

5шт.

604558R1

RETAINER

1шт.

600373R1

SPACER

6шт.

2

604659R91

ROCKSHAFT ASSEMBLY, 18 ft., Composed of:

1шт.

ARM (NSS)

17шт.

BAR (NSS)

1шт.

15188R1

BOLT

1шт.

17673R1

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 2

6шт.

604643R1

BUSHING

1шт.

LEVER (NSS)

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

604556R1

PIVOT

1шт.

604567R1

PIVOT

1шт.

604541R1

PLUG

6шт.

604558R1

RETAINER

1шт.

600373R1

SPACER

7шт.

3

604556R1

PIVOT, front gang depth control

1шт.

4

604569R1

CLEVIS, depth regulator

1шт.

604647R1

5/8 - 18 NF X 6" CAD-PLTD. HEX-HD. CAP SCREW

1шт.

5/8 X 1-3/4" STD-HD. DLD. PIN

1шт.

3/16 X 1-1/4" COTTER PIN

1шт.

5/8" CAD-PLTD. HEX. JAM NUT

1шт.

21/32 X 1-1/8 X 3/16" WASHER

1шт.

5

604567R1

PIVOT, pitman link

1шт.

6

600373R1

SPACER

rockshaft arm

1шт.

3/8 X 3-1/2" MACH. BOLT W/NUT

1шт.

3/8 X 3-3/4" CARRIAGE BOLT W/NUT (At rockshaft lever)

1шт.

3/8" LOCK WASHER

1шт.

7

604541R1

PLUG, extension spring lower

1шт.

8

604547R1

CAP, rockshaft support

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

1/2 X 9-1/2" CAD-PLTD. MACH. BOLT W/NUT

2шт.

1/2 X 10" CAD-PLTD. MACH. BOLT W/NUT (At hitch support bracket)

2шт.

1/2 X 10-1/2" CAD-PLTD. HEX-HD. CAP SCREW W/NUT (At cylinder head bracket)

2шт.

1/2" CAD-PLTD. LOCK WASHER

2шт.

9

604558R11

RETAINER, spring lower (Includes bushing, 604643R1)

1шт.

3/4 X 2" CAD-PLTD. MACH. BOLT

2шт.

3/4" CAD-PLTD. LOCK WASHER

2шт.

10

604643R1

BUSHING, spring retainer

1шт.
