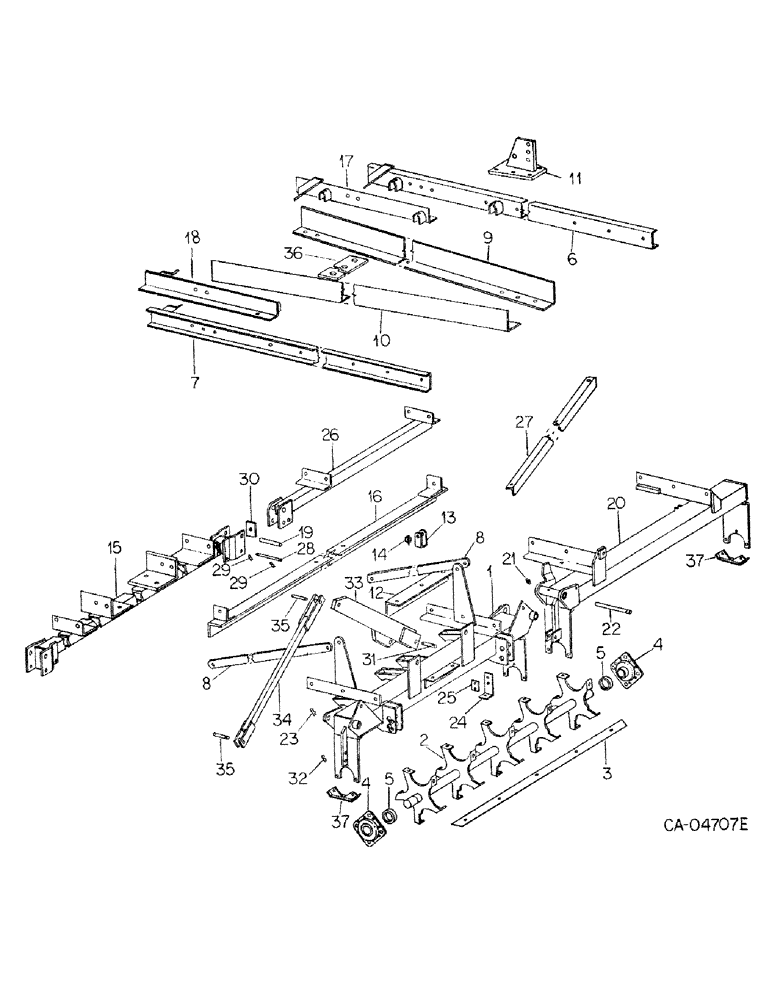

Запчасти Case IH 468 (A-06) - FRAME, UNITS C AND D, SERIAL NO. 1997 AND BELOW

1

62537C1

FRAME, center, used w/unit C

1шт.

1

62538C1

FRAME, center, used w/unit D

1шт.

2

62539C1

REEL

ASSY, 3 used w/unit C, 4 used w/unit D

1шт.

3

62560C1

CUTTER BAR

BLADE, 5 per reel

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8 x 1-1/2 znd hex-hd cap

5шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 znd hex.

5шт.

4

ST3012A

FLANGED BEARING,49.22mm ID

BEARING CPT, flange, 2 per reel

1шт.

5

618032R11

COLLAR

W/SET SCREW, 2 per reel

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2 x 1-1/2 znd hex-hd cap

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

6

62562C3

FRAME

SIDE FRAME ASSY, welded LH

3шт.

7

62563C3

FRAME

SIDE FRAME ASSY, welded RH

3шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

280954

NUT,3/4"-10, G5

3шт.

8

62564C1

BRACE

rear bar

2шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

9

101032C1

ANGLE

center frame LH

1шт.

10

101033C1

ANGLE

center frame RH

1шт.

11

64623C1

ANCHOR

ASSY, cylinder, replaces 101034C1 by ordering, (1) 64623C1 anchor assy, (2) 64624C1 bar, (1) 64622C1 spacer, (1) 180188 screw, (1) 120384 washer, (2) 271775 screws, (2) 131046 washers and (2) 220086 nuts

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

7шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

14шт.

280954

NUT,3/4"-10, G5

14шт.

12

101187C1

ANGLE

transport lock

1шт.

271791

SCREW,Hex, 3/4" - 16 x 1 3/4", Gr 5

3/4 x 1-3/4 type 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

13

75412C1

CLEVIS

transport

1шт.

271779

STRIP,Hex, 3/4" - 10 x 4", Gr 5

SCREW, 3/4-10 x 4 znd hex-hd cap

1шт.

131017

WASHER

.812 x 1.469 x .108

1шт.

9413971

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 znd hex., MF lock

1шт.

22096R1

HEADED PIN,3/4" x 2 1/4"

PIN, 3/4 x 2-1/4 znd

1шт.

14

373025R91

PIN ASSY.

PIN, click

1шт.

15

101050C2

BAR

ASSY, rear, used w/unit C

1шт.

15

101049C2

BAR

ASSY, rear, used w/unit D

1шт.

16

62565C1

BRACE

rear cross, used w/unit D

1шт.

17

62566C3

CARRIER

ASSY, harrow LH, used w/unit D

1шт.

18

62567C3

CARRIER

ASSY, harrow RH, used w/unit D

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

4шт.

280954

NUT,3/4"-10, G5

4шт.

19

62577C1

BUSHING

rear hinge

2шт.

20

101037C1

FRAME

WING ASSY, LH

1шт.

20

101038C1

FRAME

WING ASSY, RH

1шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

22

62561C1

PIN

hinge

2шт.

180157

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

7/16 x 2-1/2 type 5

2шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 znd hex. lock

1шт.

22929R1

HEADED PIN,19.05mm OD x 66.67mm L

PIN, HEADED, 3/4" x 2 5/8"

1шт.

23

480523R1

HAIR PIN COTTER

quick attachable

2шт.

24

112508C1

SUPPORT

hose

1шт.

25

112507C1

BAR

hose

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

SCREW, 3/8-16 x 2-1/4 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

26

101184C1

BAR

ASSY, rear wing

2шт.

27

62568C1

ANGLE

diag. brace

2шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

6шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

280954

NUT,3/4"-10, G5

6шт.

28

62573C1

PIN

rear bar 3/4 O.D.x 6

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

29

480523R1

HAIR PIN COTTER

quick attachable

2шт.

17294R1

BOLT,Hex, 1" - 8 x 6", Gr 5

SCREW, 1-9 x 6 znd hex-hd cap

1шт.

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1.062 x 2 x .108 znd

2шт.

9849633

NUT,1"-8, G5

1шт.

30

101186C1

BAR

stop

2шт.

62569C1

SHIM

11 ga

4шт.

62570C1

SHIM

16 ga

4шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 znd hex/hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 znd hex.

2шт.

31

62575C1

PIN

lower lift arm

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

12шт.

21808R1

HEADED PIN,5/8" x 1 1/2"

PIN, 5/8 x 1-1/2 znd hd

2шт.

32

480523R1

HAIR PIN COTTER

quick attachable

2шт.

33

101042C1

ARM

ASSY, lift

2шт.

34

101046C1

TUBE,40.3" Length

ASSY, lift

2шт.

35

62574C1

PIN

lift tube

4шт.

36

64713C1

BAR, transport angle, unit D for use with vibra shank or spring tooth ATT.

1шт.

37

1253966C1

GUARD

bearing, 2 per reel

1шт.
