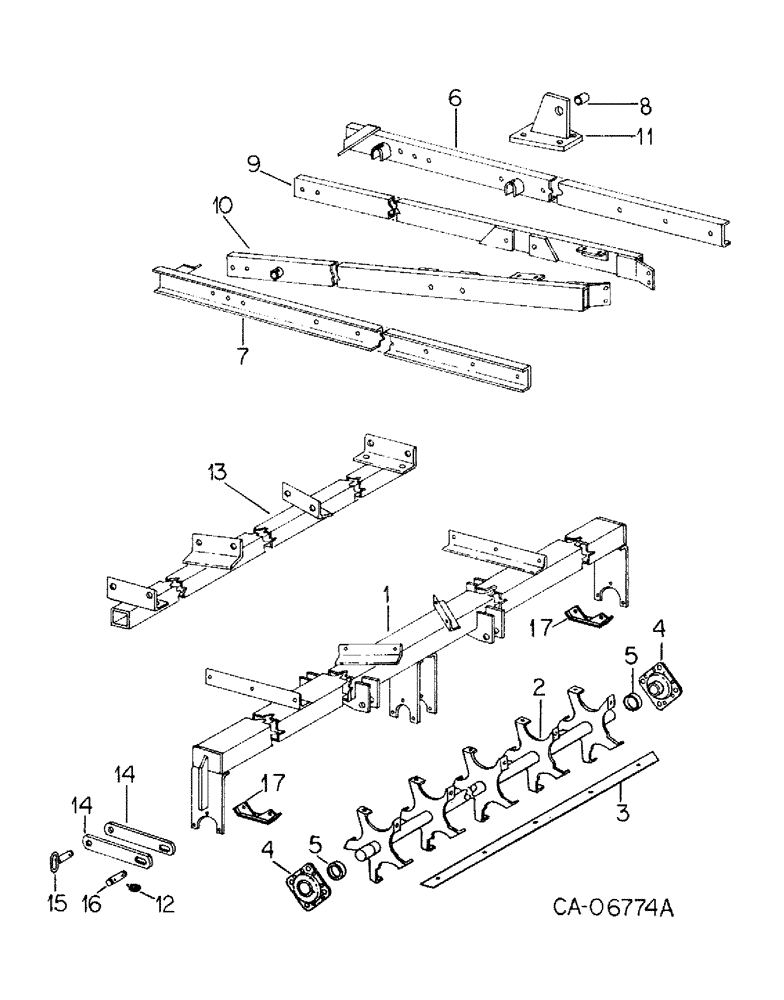

Запчасти Case IH 468 (A-04) - FRAME, UNIT A, SERIAL NO. 1998 AND ABOVE

1

138610C1

FRAME

center

1шт.

2

138575C1

REEL

ASSY

2шт.

3

62560C1

CUTTER BAR

BLADE, 5 per reel

1шт.

NLS

NO LONGER SERVICED

5/8 x 1-1/2 type 5

5шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

5шт.

4

ST3012A

FLANGED BEARING,49.22mm ID

BEARING CPT, flange, 2 per reel

1шт.

5

618032R11

COLLAR

W/SET SCREW, 2 per reel

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

120387

WASHER,3/8" x 3/4" x .060"

.375 x .750 x .054

3шт.

6

62562C3

FRAME

SIDE FRAME ASSY, welded LH

1шт.

7

62563C3

FRAME

SIDE FRAME ASSY, welded RH

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

3/4 x 2 type 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

280954

NUT,3/4"-10, G5

3шт.

8

145685C1

BUSHING

1шт.

9

138611C1

FRAME

ANGLE, center frame LH

1шт.

10

138612C1

FRAME

ANGLE, center frame RH

1шт.

11

138613C1

CYLINDER

ANCHOR ASSY, cylinder

1шт.

12

373025R91

PIN ASSY.

PIN, click

1шт.

13

138627C1

BAR

ASSY, rear

1шт.

14

138622C1

BAR

transport

2шт.

15

138623C1

PIN

welded

1шт.

16

138624C1

PIN

1шт.

17

1253966C1

GUARD

bearing, 2 per reel

1шт.
