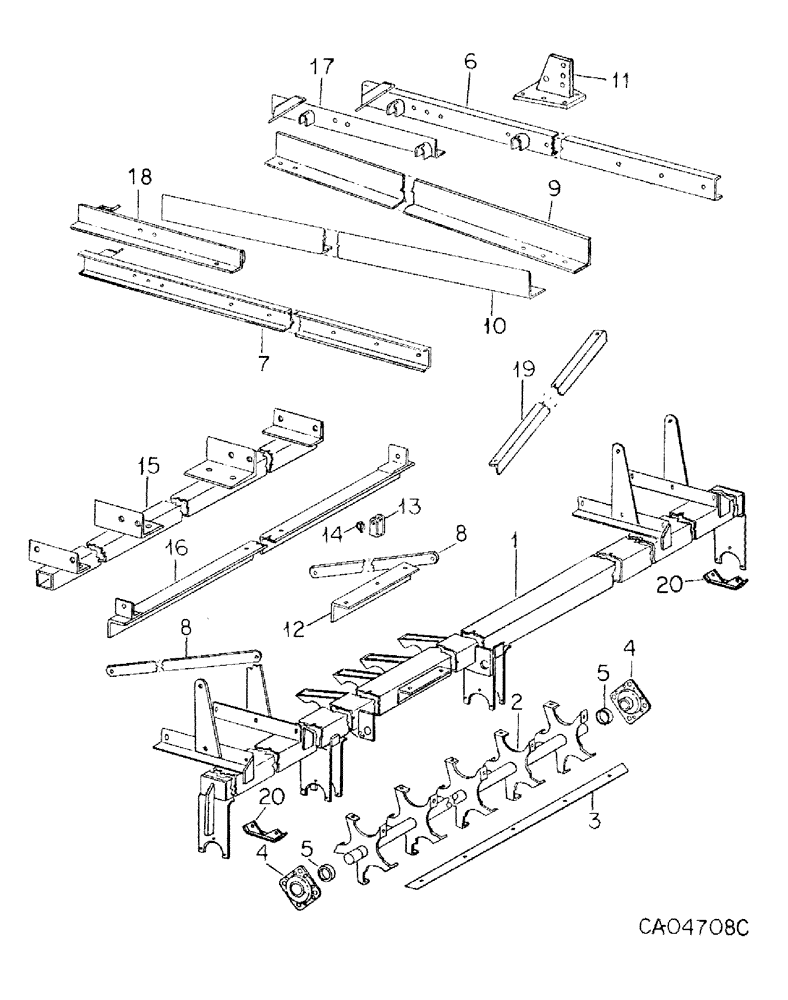

Запчасти Case IH 468 (A-02) - FRAME, UNIT A SERIAL NO. 1997 AND BELOW, UNIT B

1

62535C1

FRAME, center, used w/unit A

1шт.

1

62536C1

FRAME, center, used w/unit B, serial no. 1997 and below

1шт.

1

138577C1

FRAME

center, used w/unit B, serial no. 1998 and above

1шт.

2

62539C1

REEL

ASSY, serial no. 1997 and below, 2 used w/unit A, 3 used w/unit B

1шт.

2

138575C1

REEL

ASSY, 3 used w/unit B, serial no. 1998 and above

1шт.

3

62560C1

CUTTER BAR

BLADE, 5 per reel

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8 x 1-1/2 znd hex-hd cap

5шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 znd hex.

5шт.

4

ST3012A

FLANGED BEARING,49.22mm ID

BEARING CPT, flange, 2 per reel

1шт.

5

618032R11

COLLAR

W/SET SCREW, 2 per reel

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2 x 1-1/2 znd hex-hd cap

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

6

62562C3

FRAME

SIDE FRAME ASSY, welded LH, 1 used w/unit A, 2 used w/unit B

1шт.

7

62563C3

FRAME

SIDE FRAME ASSY, welded RH, 1 used w/unit A, 2 used w/unit B

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

280954

NUT,3/4"-10, G5

3шт.

8

62564C1

BRACE

rear bar, 2 used w/unit A, 4 used w/unit B

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

9

101032C1

ANGLE

center frame LH

1шт.

10

101033C1

ANGLE

center frame RH

1шт.

11

64623C1

ANCHOR

ASSY, cylinder, replaces 101034C1 by ordering (1) 64623C1 anchor assy, (2) 64624C1 bar, (1) 64622C1 spacer, (1) 180188 screw, (1) 120384 washer, (2) 271775 screws, (2) 131046 washers and (2) 220086 nuts

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap

4шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

6шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

14шт.

280954

NUT,3/4"-10, G5

14шт.

12

101187C1

ANGLE

transport lock

1шт.

414-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 5

3/4 x 1-3/4 type 5 , Fine threads

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

13

75412C1

CLEVIS

transport

1шт.

271779

STRIP,Hex, 3/4" - 10 x 4", Gr 5

SCREW, 3/4-10 x 4 znd hex-hd cap

1шт.

495-11081

WASHER,3/4", SAE

13/16 x 1-15/32 x .134 znd plain

1шт.

9413971

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 znd hex., MF lock

1шт.

22096R1

HEADED PIN,3/4" x 2 1/4"

PIN, 3/4 x 2-1/4 znd

1шт.

14

373025R91

PIN ASSY.

PIN, click

1шт.

15

62571C1

BAR

ASSY, rear, used w/unit A

1шт.

15

62572C1

BAR ASSY, rear, used w/unit B

1шт.

16

62565C1

BRACE

rear cross

1шт.

17

62566C3

CARRIER

ASSY, harrow LH

1шт.

18

62567C3

CARRIER

ASSY, harrow RH

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

4шт.

280954

NUT,3/4"-10, G5

4шт.

19

62578C1

ANGLE

diag. brace, used w/unit B

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

280954

NUT,3/4"-10, G5

3/4-13 znd hex.

8шт.

20

1253966C1

GUARD

bearing, 2 per reel

1шт.
