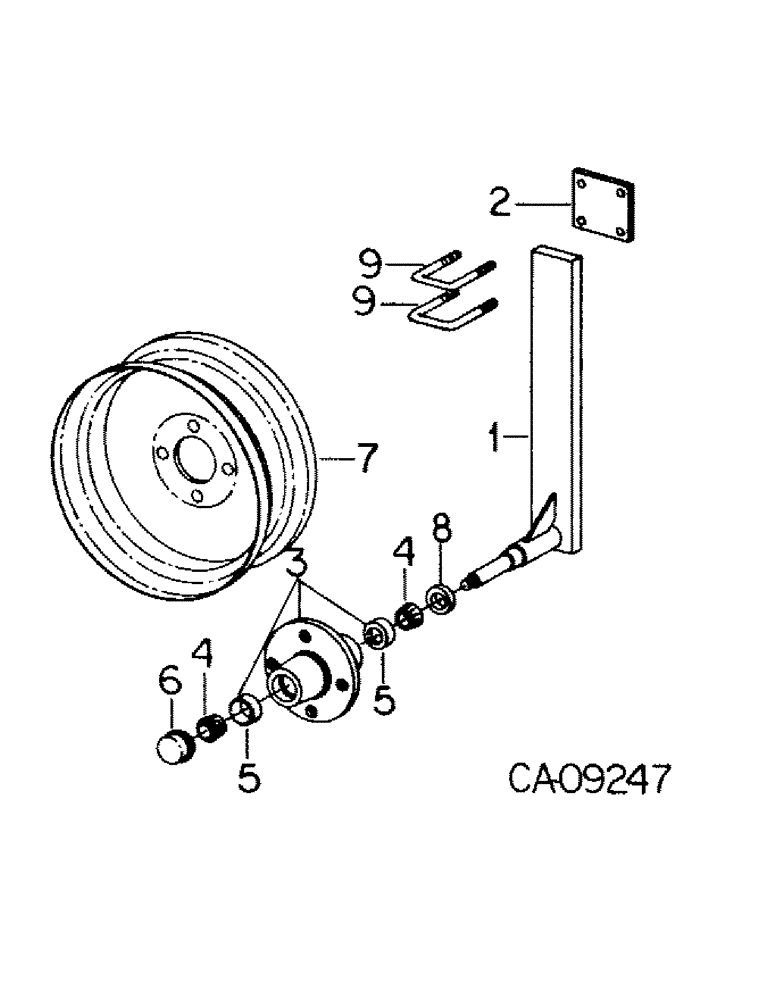

Запчасти Case IH 468 (A-24) - GAUGE WHEEL

1

74639C1

ARM

ASSY, gauge wheel

2шт.

217006H1

WASHER

.81 x 1.38 x .135

2шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-NF slt type 5

2шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

2

74638C1

PLATE

mounting

2шт.

3

75411C91

HUB

W/BOLTS, replaces 74680C1

2шт.

74770C1

BOLT,1/2" - 20 x 1 1/4", Grade 5

wheel hub

8шт.

74772C1

NUT

wheel bolt

8шт.

4

463911R91

ROLLER BEARING,1" ID x 0.58"

CONE, bearing

4шт.

5

572564R1

BEARING CUP

CUP, bearing

4шт.

6

74771C1

CAP

hub

2шт.

7

74641C1

WHEEL

for 18 x 9.50 8 ply tire

2шт.

485780R91

VALVE

ASSY

2шт.

8

811011C1

SEAL

2шт.

9

1251051C1

U-BOLT,1/2" - 13 x 3.06" W x 3.06" L, UNC

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

77583C91

PACKAGE

IH trademark, large size, white border, consists of, (2) IH trademark 6.58 x 7.09 (NSS), (2) IH trademark 7.68 x 2.27 (NSS), (2) IH trademark 10.24 x 11.02, product graphics

1шт.

77582C91

PACKAGE

IH trademark, medium size, white border, consists of, (2) IH trademark 3.66 x 3.94 (NSS), (2) IH trademark 4.39 x 4.72 (NSS), (2) IH trademark 5.48 x 5.91 (NSS), product graphics

1шт.

77581C91

PRODUCT GRAPHIC

PACKAGE, IH trademark, small size, white border, consists of (2) IH trademark 1.46 x 1.57 (NSS), (2) IH trademark 2.19 x 2.36 (NSS), (2) IH trademark 2.93 x 3.15 (NSS), product graphics

2шт.

547495R92

DECAL KIT

PACKAGE, International, for red machines, consists of (2) International 8.56 x .56 (NSS), (2) International 14.06 x .94 (NSS), (2) International 23.12 x 1.50 (NSS), (2) International 35.12 x 12 x 2.25, product graphics

2шт.

547497R92

DECAL

PACKAGE, model designation, for red machines, consists of (2) model designation 8.78 x 2.45 (NSS), (2) model designation 14.08 x 4.50 (NSS), (2) model designation 20.04 x 7.57 (NSS), (2) model designation 15.20 x 7.56 (NSS), product graphics

1шт.

59051C2

PRODUCT GRAPHIC

warning, units C and D, product graphics

1шт.

64915C1

PRODUCT GRAPHIC

caution release load, product graphics

1шт.

175311C1

REFLECTOR

red, product graphics

2шт.

174732C1

REFLECTOR

amber, product graphics

1шт.

145749C1

PRODUCT GRAPHIC

warning, product graphics

1шт.

145750C1

PRODUCT GRAPHIC

warning, product graphics

1шт.
