(A-22) - TOOLING EQUIPMENT CENTER FRAME, WING FRAME AND CARRIER ARMS

Запчасти Case IH 468 (A-22) - TOOLING EQUIPMENT CENTER FRAME, WING FRAME AND CARRIER ARMS

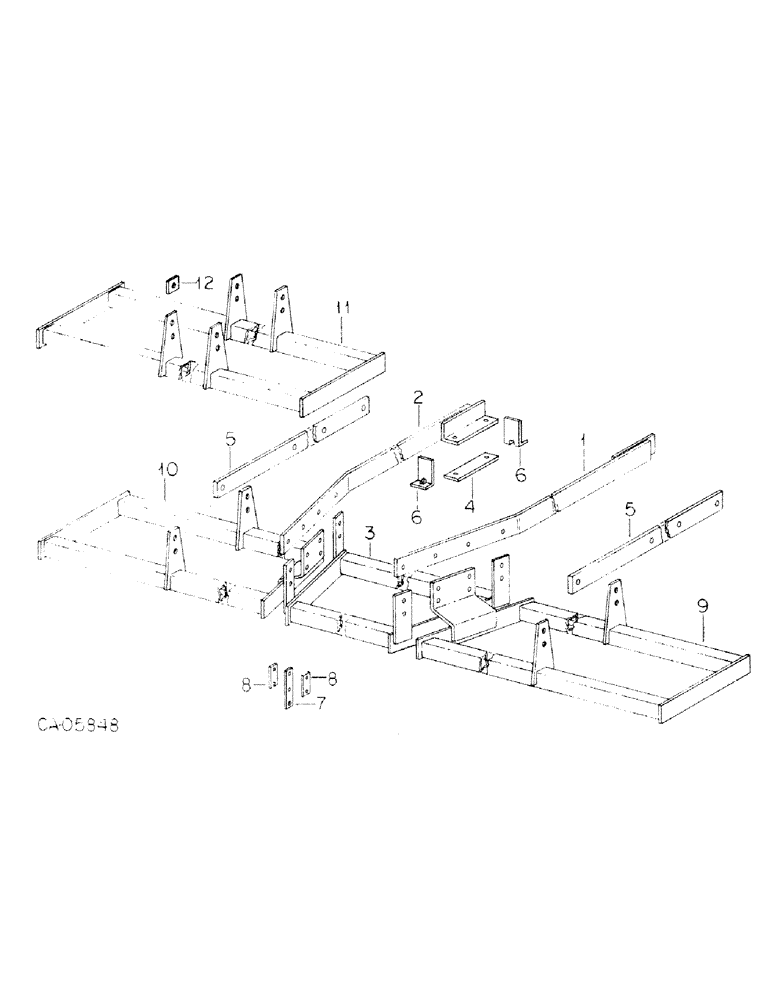

Схема запчастей Case IH 468 - (A-22) - TOOLING EQUIPMENT CENTER FRAME, WING FRAME AND CARRIER ARMS
6
6
3
10
8
9
7
5
2
12
11
1
8
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

64632C1

SUPPORT

carrying center LH

1шт.

2

64633C1

SUPPORT

carrying center RH

1шт.

3

64634C2

FRAME

center, unit B, C & D

1шт.

3

138632C1

FRAME

center, unit A

1шт.

4

64635C1

BAR

bottom

2шт.

19866R1

BOLT,Hex, 3/4" - 10 x 6 1/2", Gr 5

3/4 x 6-1/2 type 5, 4 units A and B

1шт.

21400R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

3/4 x 7-1/2 type 5, 4 used units C and D

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

5

64636C1

BAR

carrying arm, Nov 1978 & before

1шт.

5

145751C1

BAR

carrying arm, Dec 1978 & since, 2 unit A, 4 units B, C and 6 unit D

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5, 4 unit A; 8 units B, C and 12 unit D

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 4 unit A; 8 units B, C and 12 unit D

1шт.

280954

NUT,3/4"-10, G5

4 unit A, 8 units B, C and 12 unit D 3/4"-10, G5

1шт.

6

64637C1

ANGLE

filler, 4 used units A and B

1шт.

7

64638C1

BAR

hose bracket, unit A, B, and C

1шт.

8

64639C1

BAR

flat clamp, unit A, B, and C

2шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

5/16 x 3 type 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

9

64627C2

EXTENSION

center LH

1шт.

9

64629C2

FRAME

outer center LH

1шт.

10

64628C2

EXTENSION

center RH

1шт.

10

64630C2

FRAME

outer center RH

1шт.

11

64631C2

FRAME

wing, 2 used units B, C, 4 used unit A

1шт.

12

73765C1

SPACER

8 used unit B & C

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5, 34 used unit A & D; 18 used unit B & C

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2 used units A & D, 10 used unit B & C Hex, 3/4"-10 x 3", G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 36 used unit A & D; 28 used unit B & C

1шт.

280954

NUT,3/4"-10, G5

36 used unit A & D, 28 used unit B & C 3/4"-10, G5

1шт.

64646C1

HOSE

48 in. hydraulic, 8 used unit A, 4 used unit B & C

1шт.
