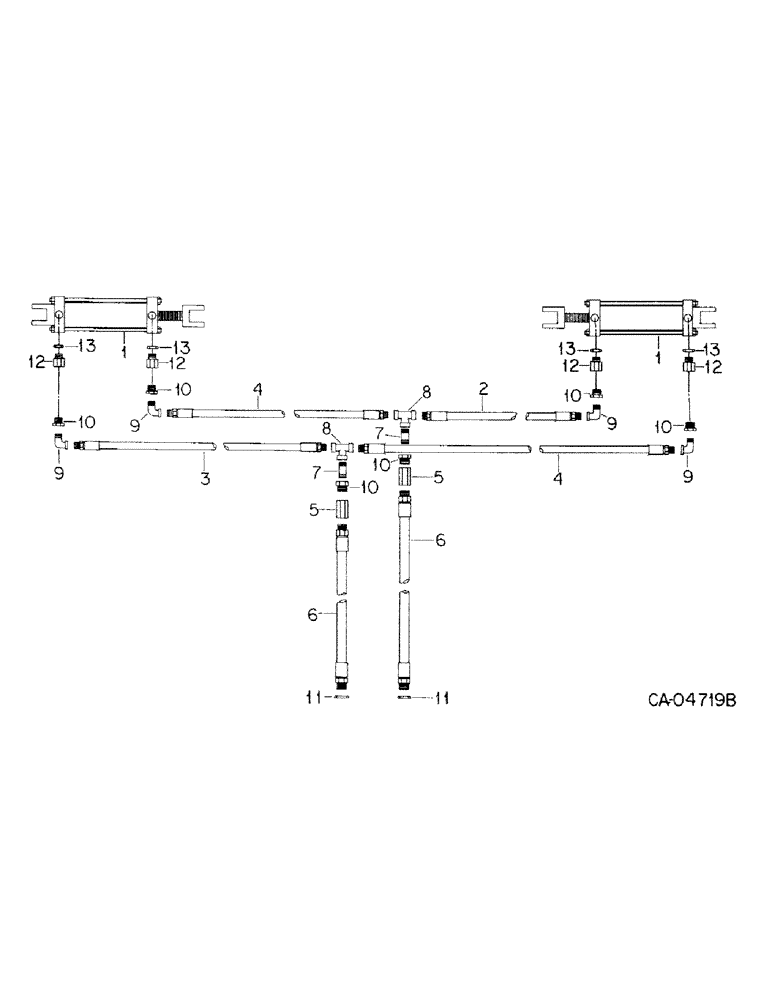

Запчасти Case IH 468 (A-20) - HYDRAULIC CYLINDER AND CONNECTIONS, UNITS C AND D

1

1272147C91

CYLINDER

3-1/2 x 8 hydraulic, replaces 140683C94, replaces 60739C91, 63442C91, 75753C91 by also ordering adapter 1260900C1 & o-ring 570828R1, refer to cyl-1 for components

1шт.

84919C2

GASKET KIT

KIT, o-ring & seal service

1шт.

2

62511C1

HOSE

1/4 x 65 in., used w/unit D

1шт.

2

62514C1

HOSE

1/4 x 20 in., used w/unit C

1шт.

3

62512C1

HOSE

1/4 x 82 in., used w/unit D

1шт.

3

62516C1

HOSE

1/4 x 42 in., used w/unit C

1шт.

4

62513C1

HOSE

1/4 x 75 in., used w/unit D

2шт.

4

62515C1

HOSE

1/4 x 34 in., used w/unit C

2шт.

5

62517C1

VALVE

RESTRICTOR

2шт.

6

63504C1

HOSE

1/2 x 144 in.

2шт.

7

NLS

NO LONGER SERVICED

NIPPLE, 1/4 short (105405)

2шт.

8

105417

TEE,1/4" NPT, Fem

1/4 x 1/4 x 1/4

2шт.

9

105423

ELBOW,90 Degree, 1/4" NPT Street

1/4 90 in. street

4шт.

10

144045

TUBE NUT,1/2" NPT Male x 1/4" NPT Fem

ADAPTER, 1/2 to 1/4 pln out/h/hd pipe, for use w/cylinders 60739C91, 63442C91 & 75753C91

6шт.

11

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 tube

2шт.

12

1260900C1

HYD CONNECTOR,1/2" - 14 x 3/4" - 16 NPT

ADAPTER, 3/4-16 UNF str-thd male to 1/2 NPTF pipe thd female, used w/cyl 1272147C1

2шт.

13

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6, used w/cyl 1272147C91

2шт.
