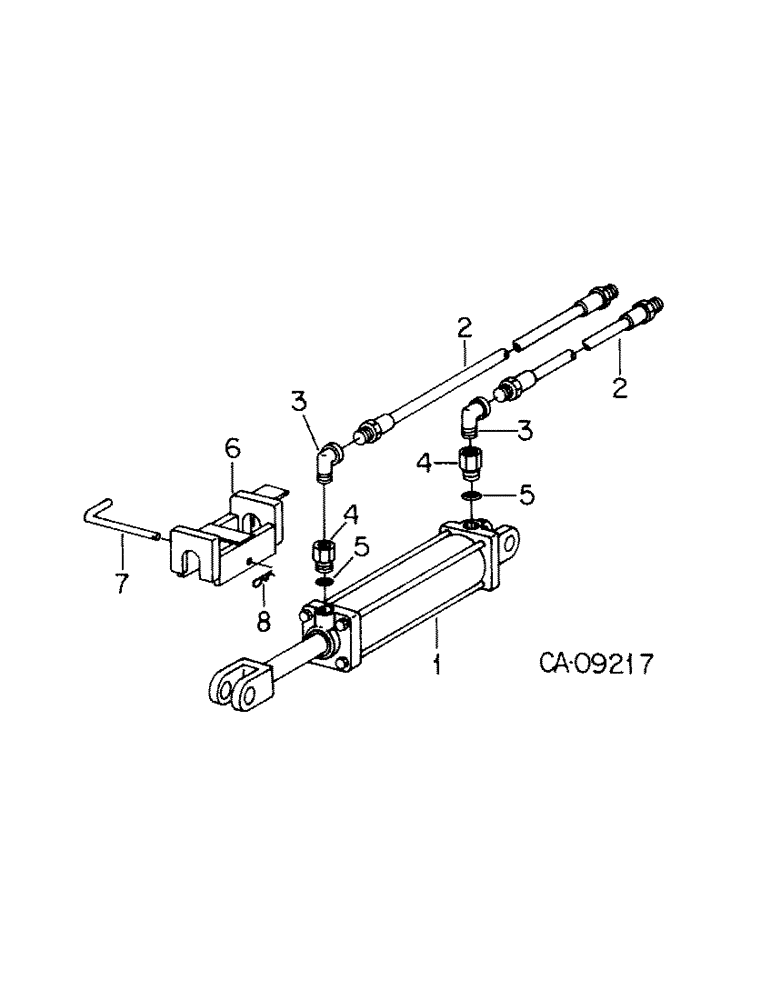

Запчасти Case IH 468 (A-19[A]) - TRANSPORT CYLINDER AND CONNECTIONS

1

1272147C91

CYLINDER

3-1/2 x 8 hydraulic, rpelaces 140683C94, replaces 60739C91, 63442C91, 75753C91 by also ordering adapter 1260900C1 & o-ring 570828R1, used w/units A, B and C, refer to cyl-1 for components

1шт.

84919C2

GASKET KIT

KIT, o-ring & seal service

1шт.

1

1272148C91

CYLINDER

4 x 8 hydraulic, replaces 145211C93, replaces 63443C91, 75766C91, 548001C92 by also ordering adapter 1260900C1 & o-ring 570828R1, used w/unit D, refer to cyl-1 for components

1шт.

80117C2

SEAL KIT

o-ring & seal service

1шт.

2

62518C1

HOSE

1/2 x 32 in.

2шт.

3

108686

ELBOW,90 Degree, 1/2" NPT Street

1/2 in. 90 deg. street, for use w/cylinders, 60739C91, 63442C91, 63443C91, 75753C91 & 75766C91

2шт.

4

1260900C1

HYD CONNECTOR,1/2" - 14 x 3/4" - 16 NPT

ADAPTER, 3/4-16 UNF str-thd male to 1/2 NPTF pipe thd female, used w/cyl 1272147C91 & 1272148C91

2шт.

5

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6, used w/cyl 1272147C91 & 1272148C91

1шт.

6

1253967C1

STOP

cylinder, unit D

1шт.

6

1253968C1

STOP

cylinder, units A, B & C

1шт.

7

1253969C1

PIN

1шт.

8

407210R1

CLIP

PACKAGE, hitch pin refill

1шт.
