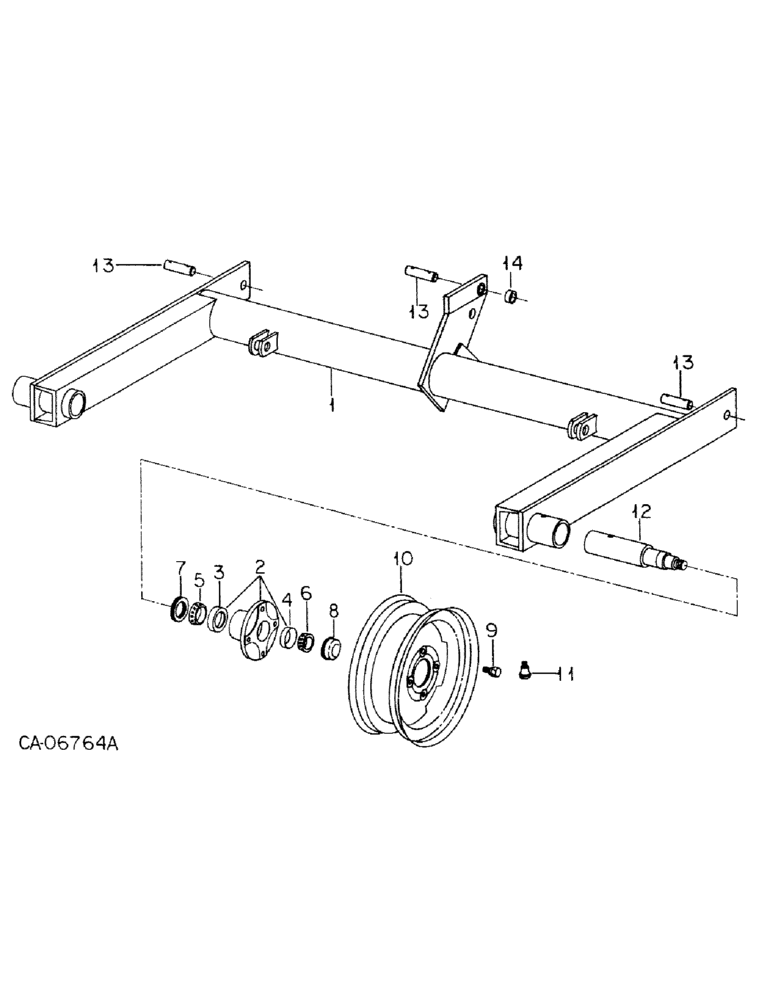

Запчасти Case IH 468 (A-14) - WHEEL, AXLE AND HUB, UNIT A W/SERIAL NO. 1998 AND ABOVE

1

138606C2

FRAME

AXLE, wheel

1шт.

.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

2шт.

.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

2шт.

2

460149R11

HUB

ASSY

2шт.

3

651817R1

BEARING CUP

CUP, inner

2шт.

4

651814R1

BEARING CUP

CUP, outer

2шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING, inner cone

2шт.

6

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING, outer cone

2шт.

6

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

7

652769R91

OIL SEAL

oil

2шт.

8

564773R1

CAP

hub

2шт.

9

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel

8шт.

10

455169R92

WHEEL

15 x 5 KB

2шт.

.

TIRE, 7.6-15 6 ply

2шт.

11

387841R91

VALVE

TR 413 w/core & cap

2шт.

12

62824C1

SPINDLE

replaces 138607C1

2шт.

.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

2шт.

.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

.

120377

NUT,3/8" - 16, Gr 5

2шт.

13

138626C1

PIN

axle pivot

3шт.

14

145685C1

BUSHING

1шт.
