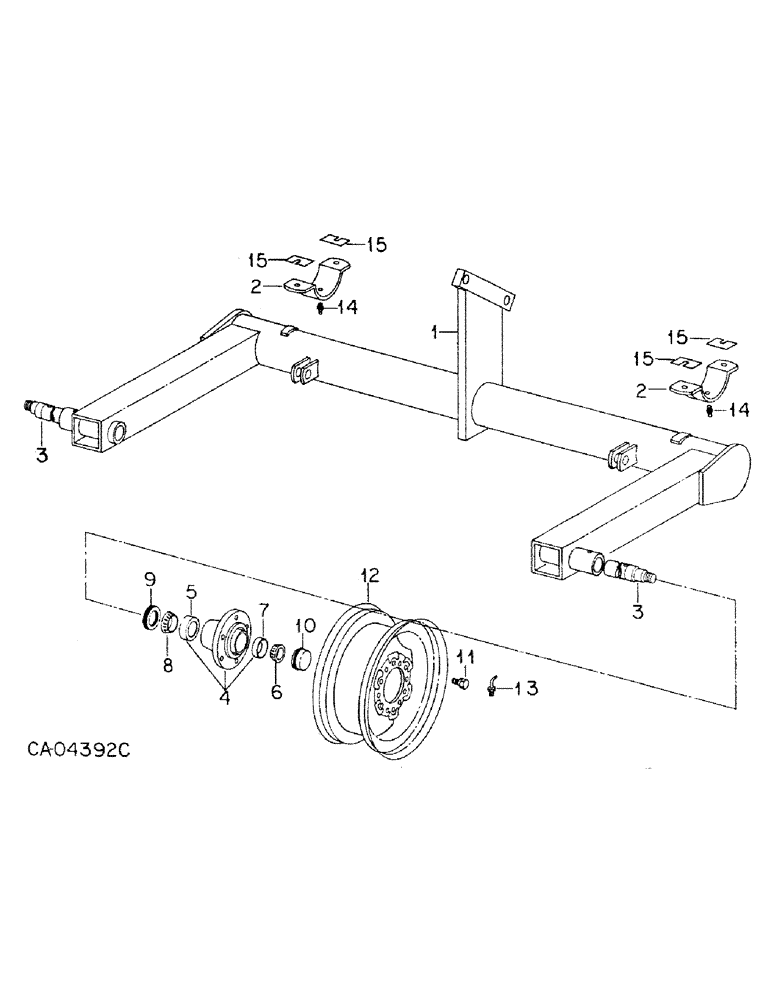

Запчасти Case IH 468 (A-13) - WHEEL, AXLE AND HUB, UNIT A W/SERIAL NO. 1997 & BELOW, & UNITS B AND C

1

138571C1

AXLE

ASSY, replaces 62506C1

1шт.

446265

WASHER, plain

2шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slotted UNF

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

2

138574C1

CLAMP

axle mounting half, replaces 64673C1

2шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

280954

NUT,3/4"-10, G5

3/8-10 znd hex.

8шт.

3

138573C1

SPINDLE

2шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

4

62509C1

HUB

ASSY

1шт.

5

478793R1

BEARING CUP

CUP, inner

2шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING, outer cone

2шт.

7

651817R1

BEARING CUP

CUP, outer

2шт.

8

160558C91

BEARING ASSY,1.5005" ID x 2.5635" OD x 0.72"

BEARING, inner cone

2шт.

9

56514C1

OIL SEAL

oil

2шт.

10

62510C1

CAP

hub

2шт.

11

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel

12шт.

12

481344R91

WHEEL

RIM, wheel 14 in. x 8 KB, serial no. 1997 & below

2шт.

12

486101R2

RIM

WHEEL, 15 in. x 8 KB, serial no. 1998 and above

2шт.

12

TIRE, 9.5L-15 6 ply implement

2шт.

13

485780R91

VALVE

stem, for use w/rim 481344R91

2шт.

13

387841R91

VALVE

TR 413 w/core & cap, for use w/wheel 486101R1

1шт.

14

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

4шт.

15

1253964C1

SHIM

11 ga

8шт.

15

1253965C1

SHIM

16 ga, unit C

8шт.
