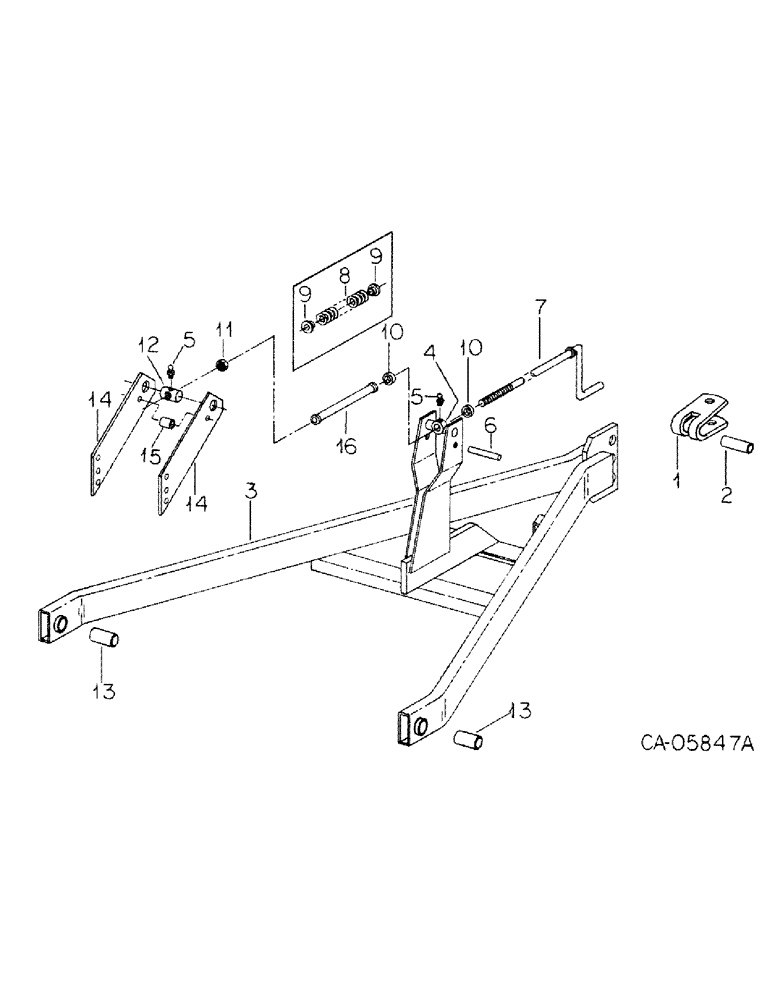

Запчасти Case IH 468 (A-12) - HITCH, SPRING TOOTH AND VIBRA TINE

1

145852C1

CLEVIS

hitch, replaces 62503C1

1шт.

2

62504C1

BUSHING

BEARING, hitch

1шт.

19873R1

HARDWARE,Hex, 3/4"-10 x 5 1/2", G5

BOLT, 3/4 x 5-1/2 type 5

1шт.

131017

WASHER

.812 x 1.469 x .108

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

3

64625C1

TOW BAR

TONGUE ASSY, for use w/front working tools

1шт.

Spindle measures about 14.26" long

1шт.

4

56969C1

TRUNNION

hitch screw

1шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

6

101027C1

SPACER,1/2" Pipe x 3 1/8"

hitch screw

1шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1/2 x 4-1/2 type 5

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex lock

1шт.

7

101051C1

CRANK

ASSY

1шт.

8

481285R1

VALVE SPRING

SPRING HITCH, serial no. 1997 and below

1шт.

9

PO2932

RETAINER

PLUG, spring, serial no. 1997 and below

2шт.

10

80755R91

THRUST BEARING,30.32mm ID x 55.82mm OD x 16mm W

BEARING

2шт.

11

56974C2

NUT

1-1/8 znd

1шт.

191950

SET SCREW,Hdls Hex Skt, 5/16" - 18 x 3/8", Cup Pt

SCREW, 5/16 x 3/8 c/pt znp hdl/s set

1шт.

12

468533R1

LINK

SWIVEL, crank

1шт.

13

62505C1

PIN

tongue

2шт.

22919R1

PIN, 3/8 x 1-3/4 slt-spr

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

2шт.

14

64626C1

SUPPORT

trunnion pivot, for use w/front working tools

2шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

280954

NUT,3/4"-10, G5

3шт.

15

64622C1

SPACER

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2 x 2-3/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

21330R1

NUT,1/2"-13, G8

1/2 type 8

1шт.

16

138582C1

SPACER

serial no. 1998 and above

1шт.

1960701C1

SPINDLE

measures about 11.12" long

1шт.

427645

SLOTTED NUT,7/8"-14, G5

7/8"

1шт.
