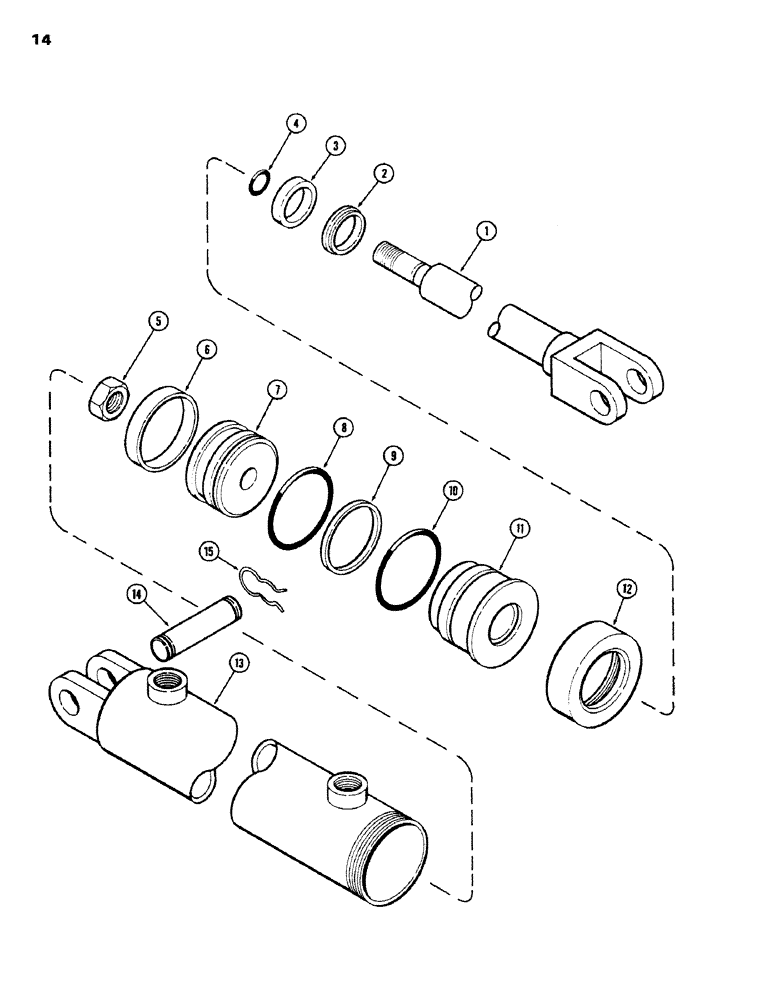

Запчасти Case IH K23B (14) - CYLINDER 3 X 16 INCH (76.2 X 406.4 MM)

T55874

CYLINDER

- hydraulic complete

4шт.

1

T55930

ROD - piston

1шт.

2

H222935

WIPER SEAL

WIPER

1шт.

Part of seal kit T63254

1шт.

3

H247809

SEAL ASSY.

SEAL - rod

1шт.

Part of seal kit T63254

1шт.

4

R15366

O-RING,7/8" ID x 1" OD x 1/16"

- 1 x 7/8 x 1/16" (25.4 x 22.2 x 1.6 mm)

1шт.

Part of seal kit T63254

1шт.

5

131-1174

LOCK NUT,1 1/4"-14, GA

NUT - piston rod 1" NF

1шт.

6

T55938

OIL SEAL

RING - wear

1шт.

Part of seal kit T63254

1шт.

7

T55929

PISTON

1шт.

8

A11021

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

- 2-3/4 x 2-9/16 x 3/32" (69.9 x 65.1 x 2.4 mm)

1шт.

Part of seal kit T63254

1шт.

9

T55936

SEAL - piston

1шт.

Part of seal kit T63254

1шт.

10

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

SEAL - gland

1шт.

Part of seal kit T63254

1шт.

11

H328781

GLAND

1шт.

12

H223032

COLLAR CLAMP

COLLAR

1шт.

13

T55931

TUBE - cylinder

1шт.

14

T53058

PIN

- clevis

1шт.

15

T52926

CLIP

2шт.

T63254

KIT

- seal Includes Refs. 2, 3, 4, 6, 8, 9 and 10

1шт.
