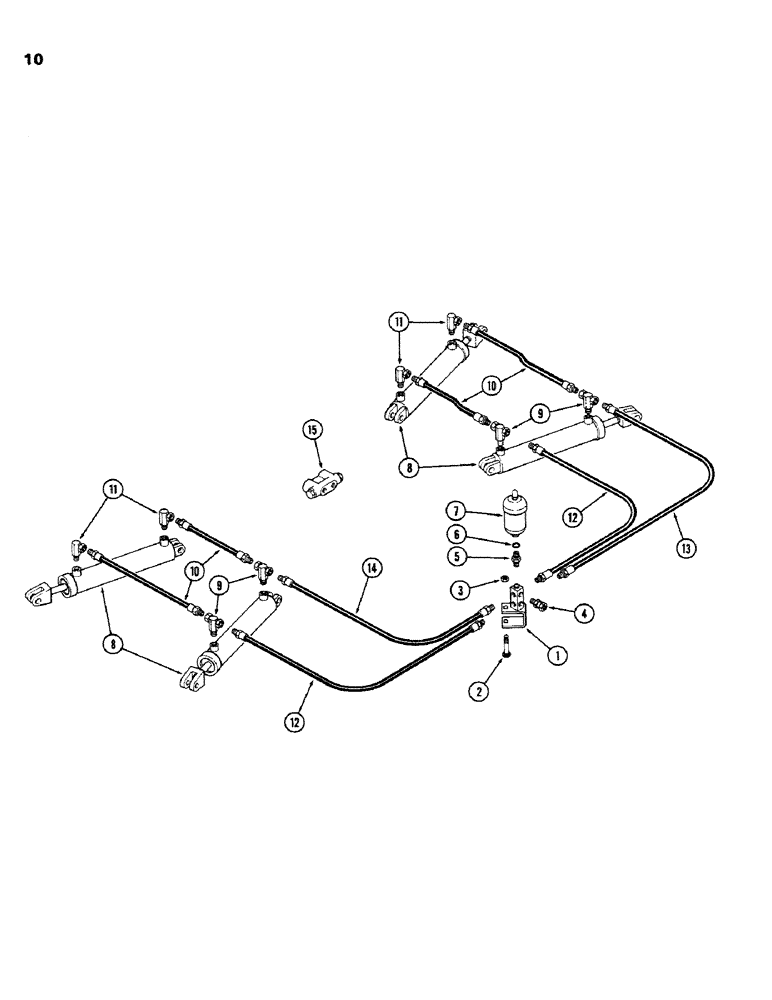

Запчасти Case IH K23B (10) - HYDRAULIC SYSTEM

1

T54649

MANIFOLD

1шт.

2

111-538

CARRIAGE BOLT,Short NK, 1/2"-13 x 4", G2

BOLT - 1/2 x 4" NC carriage (Grade 5)

1шт.

3

131-1116

LOCK NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

1шт.

4

218-1419

UNION,1/2" NPTF Male x 1/2" NPSM, Fem Sw

RESTRICTOR - with .094" (2.4 mm) orifice

2шт.

5

218-5018

FITTING

ASSEMBLY - adapter

1шт.

7

T53221

ACCUMULATOR

1шт.

8

T55874

CYLINDER

- hydraulic 3 x 16" (76.2 x 406.4 mm) (See Page 15)

4шт.

9

218-1426

FITTING

- swivel adapter

4шт.

10

T55109

HOSE - 1/4 x 96" (6.4 x 2438.4 mm)

4шт.

11

218-922

ELBOW,90 Degree, 1/2" NPTF Male x 1/4" NPSM Fem Sw

- swivel

4шт.

12

T55146

HOSE - 1/4 x 54" (6.4 x 1371.6 mm)

2шт.

13

F36230

HOSE - 1/4 x 72" (6.4 x 1828.8 mm)

1шт.

14

T55145

HOSE

- 1/4 x 36" (6.4 x 914.4 mm)

1шт.

15

T55148

VALVE - pressure lock

1шт.

B17426

GASKET MAKER FLUID

SEALANT - pipe (Not shown)

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.9 x 20.6 x 2.4 mm)

1шт.
