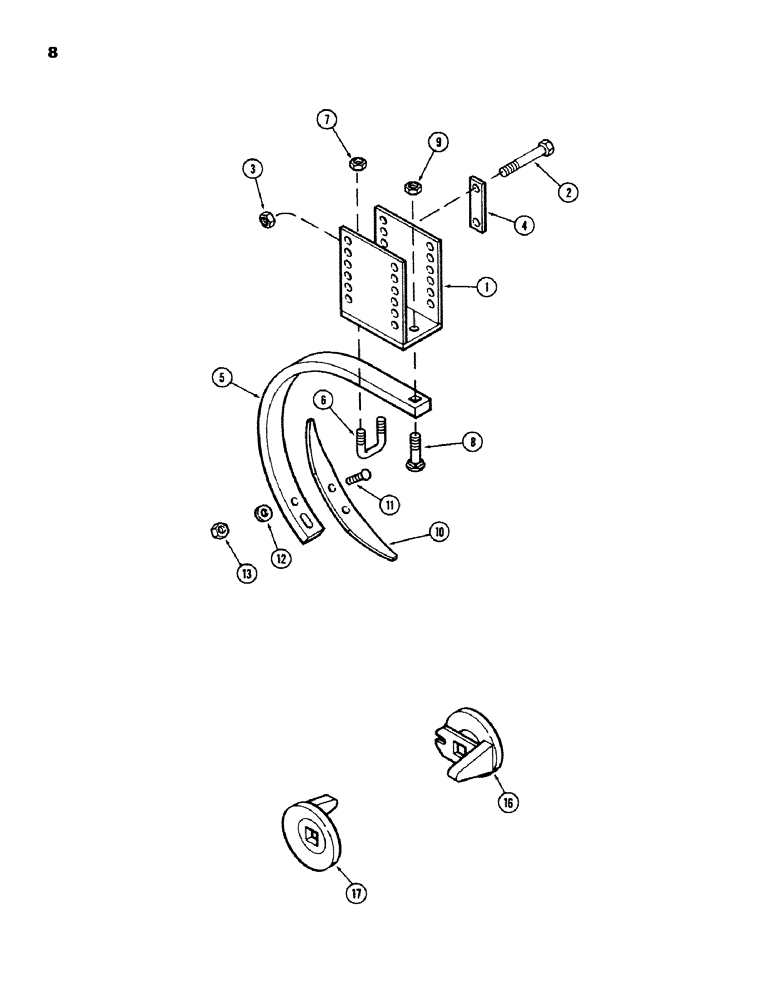

Запчасти Case IH K23B (08) - CENTER TOOTH ATTACHMENT

1

T54081

MOUNTING PARTS

MOUNT - center tooth

1шт.

2

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8 x 5" NC hex (Grade 5)

8шт.

3

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex

8шт.

4

T54082

STRAP

- clamp

4шт.

5

T52735

SHANK

- tooth

1шт.

6

T54083

U-BOLT

1шт.

7

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex

2шт.

8

111-707

CARRIAGE BOLT,Short NK, 3/4" -10 x 2 1/2", G8

BOLT - 3/4 x 2-1/2" NC carriage (Grade 5)

1шт.

9

131-385

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

1шт.

10

T52734

SHANK

TOOTH

1шт.

11

19-836

BOLT

- plow 1/2 x 2-1/4" NC (Grade 5)

2шт.

12

195-106

WASHER,1/2"

- 1-3/8 x 9/16" x 12 gauge

2шт.

13

131-165

NUT,1/2"-13, GA

NUT - lock 1/2" NC hex

2шт.

16

T55075

LOCK

- gang and end washer, wing

4шт.

17

T55076

LOCK - gang and bumper washer, wing

4шт.
