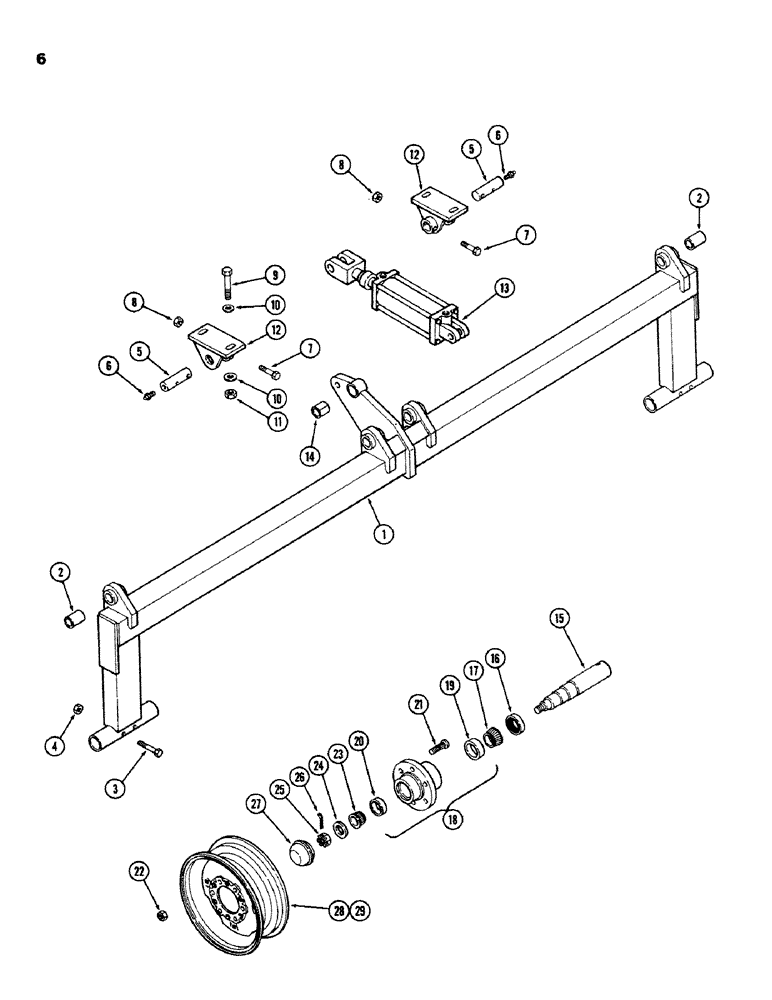

Запчасти Case IH K23B (06) - ROCKSHAFT AND WHEELS

1

T56696

ROCKSHAFT

1шт.

2

T51708

BUSHING

4шт.

3

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

4шт.

4

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - lock 3/8" NC hex

4шт.

5

T51587

PIN

- retainer

4шт.

6

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16"

4шт.

7

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

8

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - lock 3/8" NC hex

4шт.

9

113-714

BOLT,Hex, 3/4" - 10 x 5", Gr 5

8шт.

10

195-109

WASHER,3/4"

- 2 x 13/16" x 9 Gauge

16шт.

11

131-385

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

8шт.

12

T54645

BASE

- rockshaft bearing

4шт.

13

T56660

CYLINDER

- hydraulic 4 x 8" (101.6 x 203.2 mm) (See Page 13)

1шт.

14

T56590

BUSHING

1шт.

15

T52707

SPINDLE

4шт.

16

T30028

SEAL

- grease

4шт.

17

T20079

ROLLER BEARING,1.625" ID x 3.1496" OD x 1.1802"

CONE - bearing inner 1-5/8" ID (41.3 mm)

4шт.

18

T55906

HUB

ASSEMBLY - with cups bolts and nuts

4шт.

19

40421

BEARING CUP

CUP - bearing inner 3-5/32" OD (80.2 mm)

1шт.

20

A29977

BEARING CUP

CUP - bearing outer 2-23/32" OD (69.1 mm)

1шт.

21

E16592

WHEEL BOLT

BOLT - hub

6шт.

22

F23214

WHEEL NUT

- hub bolt

6шт.

23

A29976

ROLLER BEARING

CONE - bearing outer 1-3/8" ID (34.9 mm)

4шт.

24

95-14

WASHER,7/8"

- 2-1/4 x 15/16" x 8 gauge

4шт.

25

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" NF hex slotted

4шт.

26

132-71

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

4шт.

27

G57436

CYLINDER END CAP

CAP - hub

4шт.

28

A57879

RIM

WHEEL - 15 x 8" (381.0 x 203.2 mm)

4шт.

29

T39714

WHEEL

- 15 x 10" (381.0 x 254.0 mm)

4шт.
