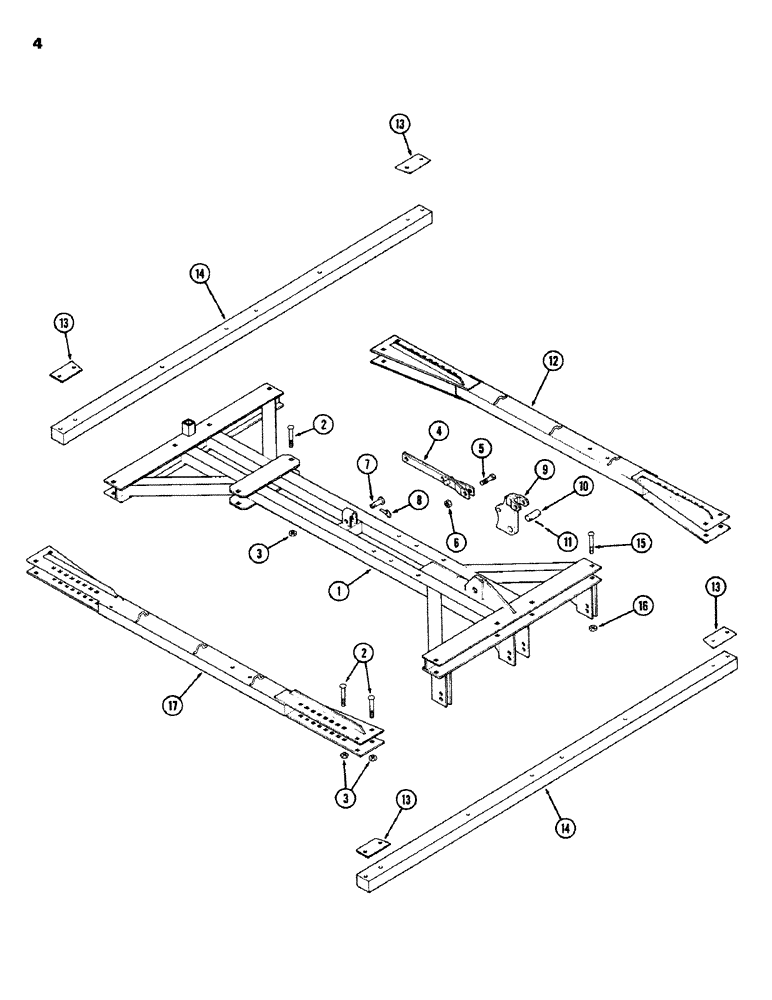

Запчасти Case IH K23B (04) - MAIN FRAME

1

T54656

FRAME - main

1шт.

2

111-800

CARRIAGE BOLT,Short NK, 7/8" -9 x 5 1/2", G5

BOLT - 7/8 x 5-1/2" NC carriage (Grade 5)

18шт.

3

131-1140

LOCK NUT,7/8" - 9, Gr A

NUT - lock 7/8" NC hex

18шт.

4

T54551

BAR

- transport

1шт.

5

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

6

131-385

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

1шт.

7

T53204

PIN - transport

1шт.

8

A30338

PIN

1шт.

9

T53200

BRACKET - hydraulic cylinder

1шт.

10

T53201

PIN - pivot

1шт.

11

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

2шт.

12

T54644

BAR - side LH

1шт.

13

T53209

SHIM

44шт.

14

T53210

BAR - front and rear

2шт.

15

111-626

CARRIAGE BOLT,Short NK, 5/8"-11 x 5", G5

BOLT - 5/8 x 5" NC carriage (Grade 5)

8шт.

16

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex

8шт.

17

T54643

BAR - side RH

1шт.
