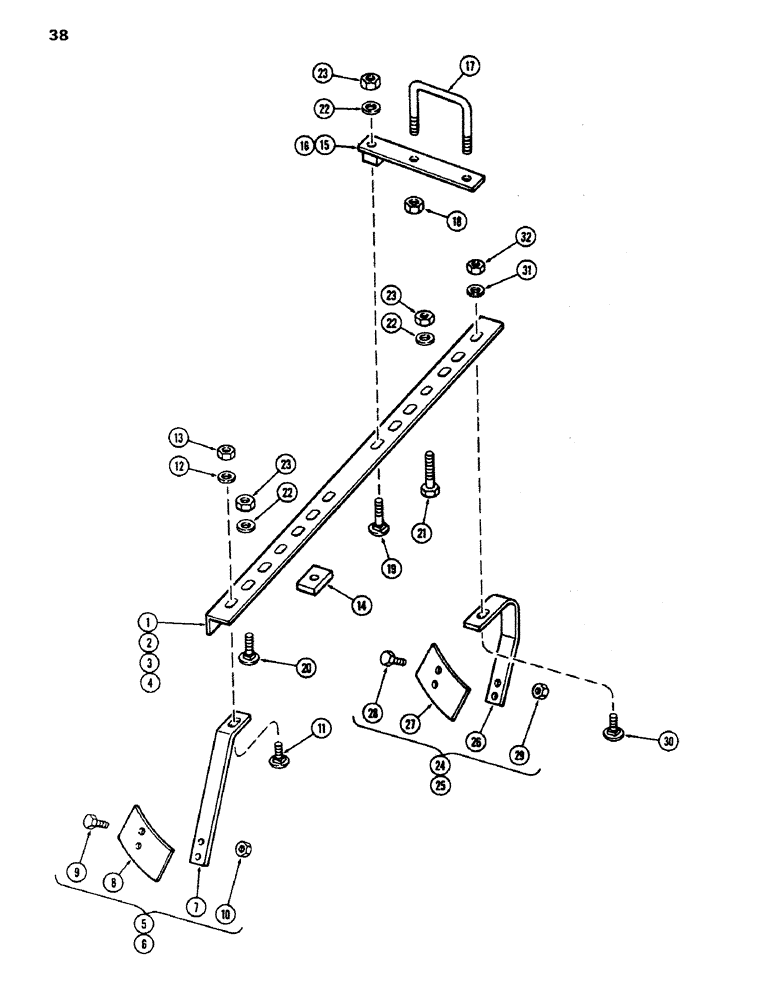

Запчасти Case IH K23B (38) - SCRAPER BARS AND SCRAPERS, WING GANG

1

T53188

BAR - scraper front RH and LH 33-5/16" (846.1 mm) Model 240

2шт.

2

T53189

BAR - scraper rear RH and LH 42-1/2" (1079.5 mm) Model 240

2шт.

2

T53189

BAR - scraper front RH and LH 42-1/2" (1079.9 mm) Model 258

2шт.

3

T53190

BAR - scraper rear RH and LH 51-11/16" (1312.9 mm) Model 258

2шт.

3

T53190

BAR - scraper front RH and LH 51-11/16" (1312.9 mm) Model 276

2шт.

4

T53193

BAR - scraper rear RH and LH 60-7/8" (1546.2 mm) Model 276

2шт.

5

T55087

SCRAPER

ASSEMBLY - RH

1шт.

6

T55088

SCRAPER

ASSEMBLY - LH

1шт.

7

T55103

SUPPORT ASSY.

SHANK

1шт.

8

T55102

HALF BLADE

BLADE

1шт.

9

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

10

131-165

NUT,1/2"-13, GA

NUT - lock 1/2" NC hex

2шт.

11

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5) (One per scraper)

1шт.

12

195-106

WASHER,1/2"

- 1-3/8 x 9/16" x 12 gauge (Oner per scraper)

1шт.

13

131-165

NUT,1/2"-13, GA

NUT - lock 1/2" NC hex

1шт.

14

T56694

SHIM

- scraper bar (Rigid gang)

8шт.

15

T56692

SUPPORT - scraper bar (Flex gang) Model 240 and 258

2шт.

15

T56692

SUPPORT - scraper bar (Flex gang) Model 276

4шт.

16

T56693

SUPPORT - scraper bar (Rigid gang) Model 240 and 258

2шт.

16

T56693

SUPPORT - scraper bar (Rigid gang) Model 276

4шт.

17

T56686

U-BOLT

- (Model 240 and 258)

2шт.

17

T56686

U-BOLT

- (Model 276)

4шт.

18

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex (Two per U-Bolt)

1шт.

19

111-617

BOLT,Short NK, 5/8"-11 x 1 3/4", G5

- 5/8 x 1-3/4" NC carriage (Grade 5)

1шт.

20

111-619

BOLT

- 5/8 x 2-1/2" NC carriage (Grade 5) (Rigid gang)

1шт.

21

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5 (Flex gang)

1шт.

22

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge (One per bolt)

1шт.

23

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex (One per bolt)

1шт.

24

T56298

SCRAPER

ASSEMBLY - RH

1шт.

25

T56299

SCRAPER

ASSEMBLY - LH

1шт.

26

T56098

SHANK

1шт.

27

T55102

HALF BLADE

BLADE

1шт.

28

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

29

131-165

NUT,1/2"-13, GA

NUT - lock 1/2" NC hex

2шт.

30

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- 1/2 x 2-1/2" NC hex (Grade 5)

2шт.

31

195-106

WASHER,1/2"

- 1-3/8 x 9/16" x 12 gauge

2шт.

32

131-165

NUT,1/2"-13, GA

NUT - lock 1/2" NC hex

2шт.
