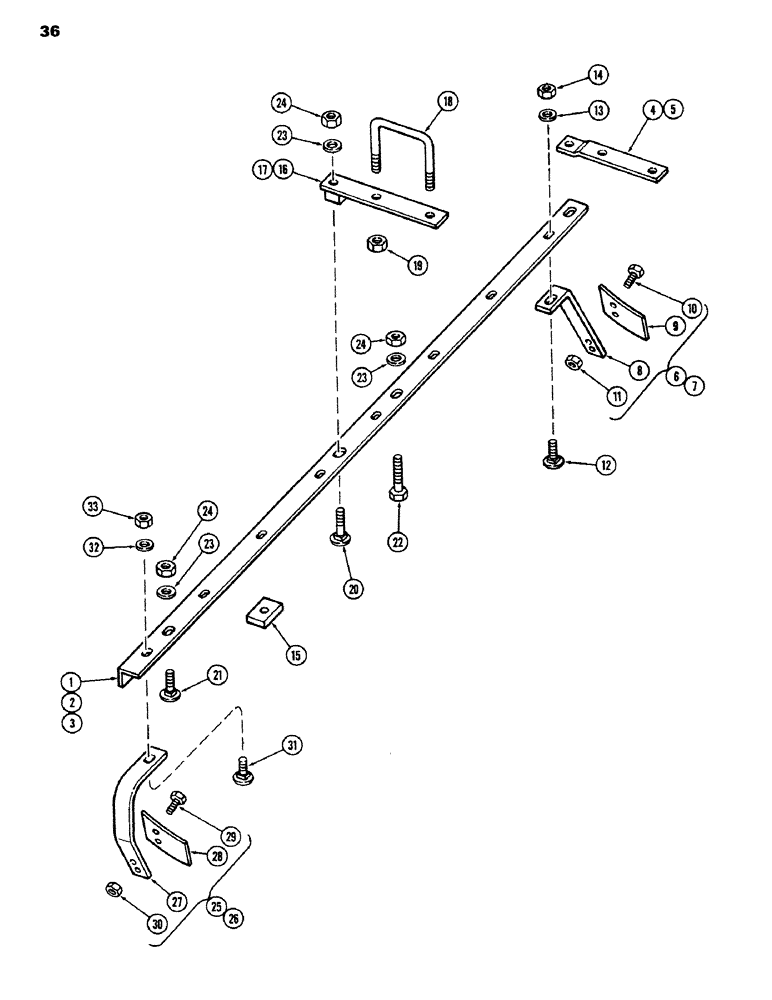

Запчасти Case IH K23B (36) - SCRAPER BARS AND SCRAPERS, MAIN GANG
№
Артикул
Название
Примечание
Количество
1
T53759
BAR - scraper front RH 72-1/8" (1832.0 mm)
1шт.
2
T53761
BAR - scraper front LH 72-1/8" (1832.0 mm)
1шт.
3
T53837
BAR - scraper rear RH and LH 70-1/16" (1779.6 mm)
2шт.
4
T56252
MOUNT - scraper bar (Rigid gang)
2шт.
5
T54648
MOUNT - scraper bar (Flex gang)
2шт.
6
T55087
SCRAPER
ASSEMBLY - RH
1шт.
7
T55088
SCRAPER
ASSEMBLY - LH
1шт.
8
T55103
SUPPORT ASSY.
SHANK
1шт.
9
T55102
HALF BLADE
BLADE
1шт.
10
113-410
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
2шт.
11
131-165
NUT,1/2"-13, GA
NUT - lock 1/2" NC hex
2шт.
12
111-524
CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5
BOLT - 1/2 x 1-1/2" NC carriage (Grade 5) (One per scraper)
1шт.
13
195-106
WASHER,1/2"
- 1-3/8 x 9/16" x 12 gauge (Oner per scraper)
1шт.
14
131-165
NUT,1/2"-13, GA
NUT - lock 1/2" NC hex (One per scraper)
1шт.
15
T56694
SHIM
- scraper bar (Rigid gang)
8шт.
16
T56692
SUPPORT - scraper bar (Flex gang) Model 240 and 258
2шт.
16
T56692
SUPPORT - scraper bar (Flex gang) Model 276
4шт.
17
T56693
SUPPORT - scraper bar (Rigid gang) Model 240 and 258
2шт.
17
T56693
SUPPORT - scraper bar (Rigid gang) Model 276
4шт.
18
T56686
U-BOLT
- (Model 240 and 258)
2шт.
18
T56686
U-BOLT
- (Model 276)
4шт.
19
131-1131
LOCK NUT,3/4"-10, GA
NUT - lock 3/4" NC hex (Two per U-bolt)
1шт.
20
111-617
BOLT,Short NK, 5/8"-11 x 1 3/4", G5
- 5/8 x 1-3/4" NC carriage (Grade 5)
1шт.
21
111-619
BOLT
- 5/8 x 2-1/2" NC carriage (Grade 5) (Rigid gang)
1шт.
22
113-628
BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5
Hex, 5/8"-11 x 3 1/2", G5 (Flex gang)
1шт.
23
195-108
WASHER,5/8"
- 1-3/4 x 11/16" x 10 gauge (One per bolt)
1шт.
24
230-41110
LOCK NUT,5/8"-11, GA
NUT - lock 5/8" NC hex (One per bolt)
1шт.
25
T56298
SCRAPER
ASSEMBLY - RH
1шт.
26
T56299
SCRAPER
ASSEMBLY - LH
1шт.
27
T56098
SHANK
1шт.
28
T55102
HALF BLADE
BLADE
1шт.
29
133-410
BOLT (SPREADER)
BOLT - 1/2 x 1-1/2" NC hex (Grade 5)
2шт.
30
131-165
NUT,1/2"-13, GA
NUT - lock 1/2" NC hex
2шт.
31
80087972
BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5
- 1/2 x 2-1/2" NC hex (Grade 5)
2шт.
32
195-106
WASHER,1/2"
- 1-3/8 x 9/16" x 12 gauge
2шт.
33
131-165
NUT,1/2"-13, GA
NUT - lock 1/2" NC hex
2шт.
Выбрано товаров: 36
