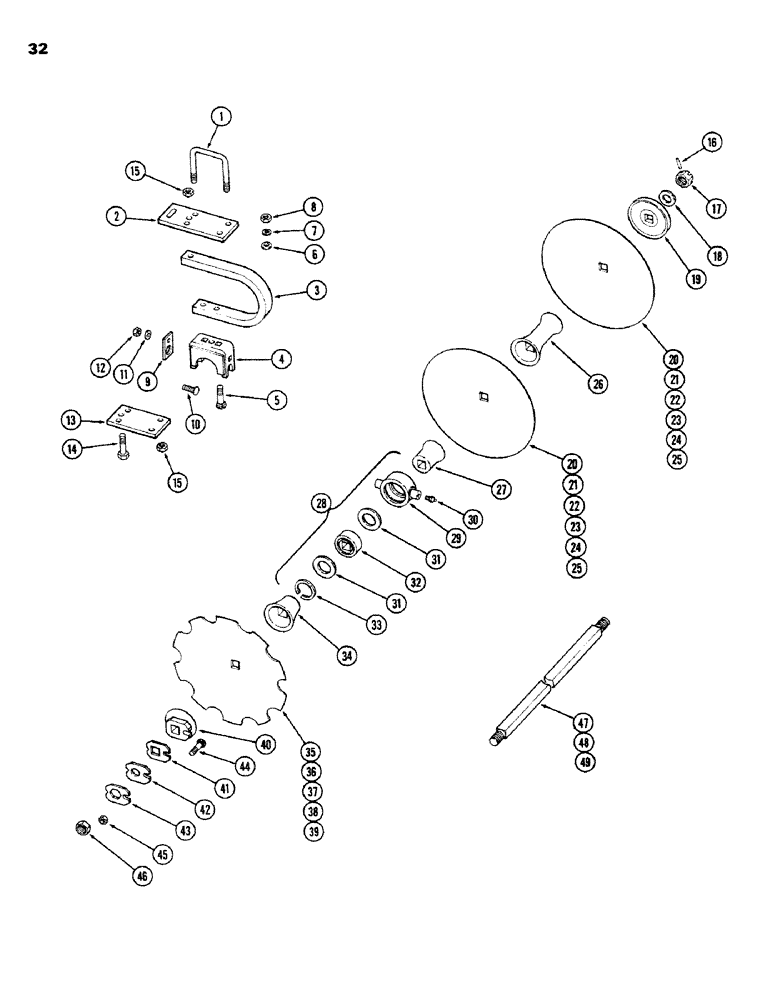

Запчасти Case IH K23B (32) - WING GANG, FRONT, FLEX

1

T56502

U-BOLT

8шт.

2

T56503

PLATE - top

4шт.

3

T56428

SHANK

4шт.

4

T56429

MOUNTING PARTS

MOUNT

4шт.

5

111-709

CARRIAGE BOLT,Short NK, 3/4"-10 x 3", G5

BOLT - 3/4 x 3" NF carriage (Grade 5)

8шт.

6

195-109

WASHER,3/4"

- 2 x 13/16" X 9 gauge

8шт.

7

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

8

25-1712

NUT,3/4"-16, G5, Hvy

- 3/4" NF hex

8шт.

9

T52681

CLAMP

- trunnion

8шт.

10

111-618

BOLT,Short NK, 5/8"-11 x 2", G5

CARRIAGE, Short NK, 5/8"-11 x 2", G5

8шт.

11

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

8шт.

12

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex

8шт.

13

T56504

PLATE - bottom

4шт.

14

113-717

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

4шт.

15

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

20шт.

16

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

2шт.

17

25-1324

SLOTTED NUT,1 1/2"-12, G5

NUT - gang bolt 1-1/2" NF hex slotted

2шт.

18

195-114

WASHER,1 3/8"

- 3-1/4 x 1-1/2" x 7 gauge

2шт.

19

T51600

WASHER,39.69mm ID x 171.45mm OD x 15.88mm Thk

- bumper

2шт.

20

T55907

DISK HARROW

BLADE - disk 22" (558.8 mm) x 7 gauge solid

1шт.

21

T55915

BLADE

- disk 22 x 1/4" (558.8 x 6.4 mm) solid

1шт.

22

T51693

BLADE

- disk 24" (609.6 mm) x 7 gauge solid

1шт.

23

T55920

PLOW DISC

BLADE - disk 10" (254.0 mm) x 11 gauge solid

2шт.

24

T51603

DISK HARROW

BLADE - disk 20" (508.0 mm) x 7 gauge solid

2шт.

25

T55907

DISK HARROW

BLADE - disk 22" (558.8 mm) x 7 gauge solid

2шт.

26

T51655

CASTING

SPOOL

1шт.

27

T56687

BELL HOUSING

END SPOOL - small

4шт.

28

T63287

HOUSING ASSY.

HOUSING AND BEARING ASSEMBLY

4шт.

29

NSS

NOT SOLD SEPARAT

HOUSING - bearing (Order T63287)

1шт.

30

219-3

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

31

T55591

WASHER,70.61mm ID x 100mm OD x 3.4mm Thk

- bearing

2шт.

32

T56688

BALL BEARING,38.35mm ID x 100mm OD x 44.45mm W

BEARING

1шт.

33

T51654

SNAP RING,4.00", Int, #400

Ring, Snap, 4.00", Int, #400

1шт.

34

T56271

BELL HOUSING

END SPOOL - large

4шт.

35

T55908

BLADE

- disk 22" (558.8 mm) x 7 gauge notch

1шт.

36

T55917

BLADE

- disk 22 x 1/4" (558.8 x 6.4 mm) notch

1шт.

37

T51694

BLADE

- disk 24" (609.6 mm) x 7 gauge notch

1шт.

38

T51695

DISC

BLADE - disk 20" (508.0 mm) x 7 gauge notch

2шт.

39

T55908

BLADE

- disk 22" (558.8 mm) x 7 gauge notch

2шт.

40

T54657

WASHER

- end

2шт.

41

T54647

PLATE

- spacer

2шт.

42

T54646

PLATE

- bearing

2шт.

43

T55051

PLATE

- lock

2шт.

44

111-539

CARRIAGE BOLT,Short NK, 1/2"-13 x 2", G5

BOLT - 1/2 x 2" NC carriage (Grade 5)

2шт.

45

131-165

NUT,1/2"-13, GA

NUT - lock 1/2" NC hex

2шт.

46

25-1124

NUT,1 1/2"-12, G5

- gang bolt 1-1/2" NF hex

2шт.

47

T53195

BOLT

- gang 33-5/8" (854.1 mm) Model 240

2шт.

48

T51598

BOLT

- gang 42-7/8" (1089.0 mm) Model 258

2шт.

49

T51599

BOLT

- gang 52-1/8" (1324.0 mm) Model 276

2шт.
