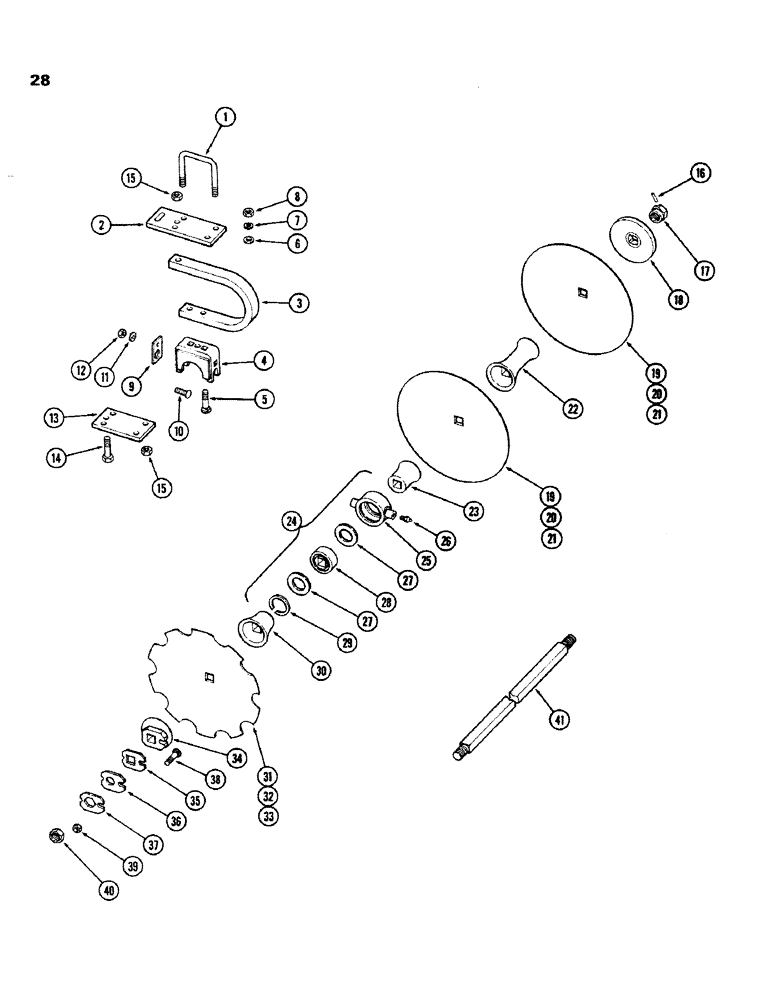

Запчасти Case IH K23B (28) - MAIN GANG, FRONT, FLEX

1

T56502

U-BOLT

8шт.

2

T56503

PLATE - top

4шт.

3

T56428

SHANK

4шт.

4

T56429

MOUNTING PARTS

MOUNT

4шт.

5

111-709

CARRIAGE BOLT,Short NK, 3/4"-10 x 3", G5

BOLT - 3/4 x 3" NF carriage (Grade 5)

8шт.

6

195-109

WASHER,3/4"

- 2 x 13/16" x 9 gauge

8шт.

7

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

8

25-1712

NUT,3/4"-16, G5, Hvy

- 3/4" NF hex

8шт.

9

T52681

CLAMP

- trunnion

8шт.

10

111-618

BOLT,Short NK, 5/8"-11 x 2", G5

CARRIAGE, Short NK, 5/8"-11 x 2", G5

8шт.

11

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

8шт.

12

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex

8шт.

13

T56504

PLATE - bottom

4шт.

14

113-717

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

4шт.

15

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

20шт.

16

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

2шт.

17

T52680

NUT

- gang bolt

2шт.

18

T52679

WASHER

- bumper

2шт.

19

T55907

DISK HARROW

BLADE - disk 22" (558.8 mm) x 7 gauge solid

1шт.

20

T55915

BLADE

- disk 22 x 1/4" (558.8 x 6.4 mm) solid

1шт.

21

T51693

BLADE

- disk 24" (609.6 mm) x 7 gauge solid

1шт.

22

T51655

CASTING

SPOOL

1шт.

23

T56687

BELL HOUSING

END SPOOL - small

4шт.

24

T63287

HOUSING ASSY.

HOUSING AND BEARING ASSEMBLY

4шт.

25

NSS

NOT SOLD SEPARAT

HOUSING - bearing (Order T63287)

1шт.

26

219-3

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

27

T55591

WASHER,70.61mm ID x 100mm OD x 3.4mm Thk

- bearing

2шт.

28

T56688

BALL BEARING,38.35mm ID x 100mm OD x 44.45mm W

BEARING

1шт.

29

T51654

SNAP RING,4.00", Int, #400

Ring, Snap, 4.00", Int, #400

1шт.

30

T56271

BELL HOUSING

END SPOOL - large

4шт.

31

T55908

BLADE

- disk 22" (558.8 mm) x 7 gauge notch

1шт.

32

T55917

BLADE

- disk 22 x 1/4" (558.8 x 6.4 mm) notch

1шт.

33

T51694

BLADE

- disk 24" (609.6 mm) x 7 gauge notch

1шт.

34

T54657

WASHER

- end

2шт.

35

T54647

PLATE

- spacer

2шт.

36

T54646

PLATE

- bearing

2шт.

37

T55051

PLATE

- lock

2шт.

38

111-539

CARRIAGE BOLT,Short NK, 1/2"-13 x 2", G5

BOLT - 1/2 x 2" NC carriage (Grade 5)

2шт.

39

131-165

NUT,1/2"-13, GA

NUT - lock 1/2" NC hex

2шт.

40

25-1124

NUT,1 1/2"-12, G5

- gang bolt 1-1/2" NF hex

2шт.

41

T51638

BOLT

BOLT - gang 79-7/8" (2028.8 mm)

2шт.
