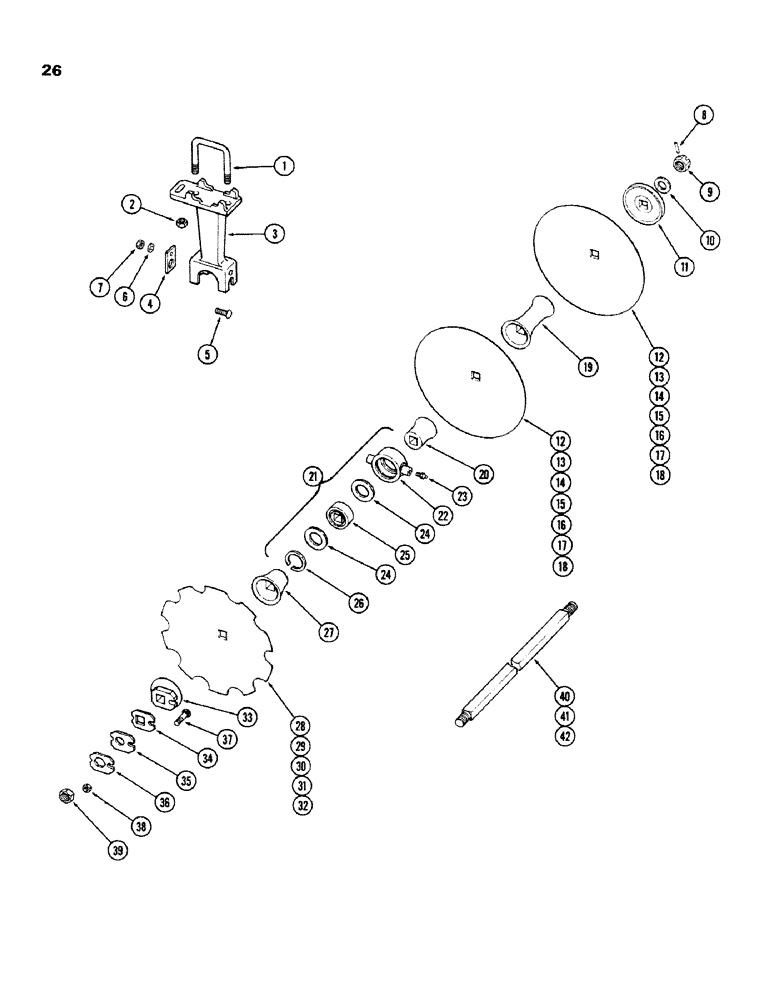

Запчасти Case IH K23B (26) - WING GANG, REAR, RIGID

1

T56254

BOLT

U-BOLT

4шт.

2

131-1140

LOCK NUT,7/8" - 9, Gr A

NUT - lock 7/8" NC hex

8шт.

3

T56253

RISER

STAND - bearing

4шт.

4

T52681

CLAMP

- trunnion

8шт.

5

111-618

BOLT,Short NK, 5/8"-11 x 2", G5

CARRIAGE, Short NK, 5/8"-11 x 2", G5

8шт.

6

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

8шт.

7

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex

8шт.

8

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

2шт.

9

25-1324

SLOTTED NUT,1 1/2"-12, G5

NUT - gang bolt 1-1/2" NF hex slotted

2шт.

10

195-114

WASHER,1 3/8"

- 3-1/4 x 1-1/2" x 7 gauge

2шт.

11

T51600

WASHER,39.69mm ID x 171.45mm OD x 15.88mm Thk

- bumper

25шт.

12

T55907

DISK HARROW

BLADE - disk 22" (558.8 mm) x 7 gauge solid

1шт.

13

T55915

BLADE

- disk 22 x 1/4" (558.8 x 6.4 mm) solid

1шт.

14

T51693

BLADE

- disk 24" (609.6 mm) x 7 gauge solid

1шт.

15

T55916

PLOW DISC

BLADE - disk 16" (406.4 mm) x 9 gauge solid

2шт.

16

T51604

PLOW DISC

BLADE - disk 18" (457.2 mm) x 8 gauge solid

2шт.

17

T51603

DISK HARROW

BLADE - disk 20" (508.0 mm) x 7 gauge solid

2шт.

18

T55907

DISK HARROW

BLADE - disk 22" (558.8 mm) x 7 gauge solid

2шт.

19

T51655

CASTING

SPOOL

1шт.

20

T56687

BELL HOUSING

END SPOOL - small

4шт.

21

T63287

HOUSING ASSY.

HOUSING AND BEARING ASSEMBLY

4шт.

22

NSS

NOT SOLD SEPARAT

HOUSING - bearing (Order T63287)

1шт.

23

219-3

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

24

T55591

WASHER,70.61mm ID x 100mm OD x 3.4mm Thk

- bearing

2шт.

25

T56688

BALL BEARING,38.35mm ID x 100mm OD x 44.45mm W

BEARING

1шт.

26

T51654

SNAP RING,4.00", Int, #400

Ring, Snap, 4.00", Int, #400

1шт.

27

T56271

BELL HOUSING

END SPOOL - large

4шт.

28

T55908

BLADE

- disk 22" (558.8 mm) x 7 gauge notch

1шт.

29

T55917

BLADE

- disk 22 x 1/4" (558.8 x 6.4 mm) notch

1шт.

30

T51694

BLADE

- disk 24" (609.6 mm) x 7 gauge notch

1шт.

31

T51695

DISC

BLADE - disk 20" (508.0 mm) x 7 gauge notch

2шт.

32

T55908

BLADE

- disk 22" (558.8 mm) x 7 gauge notch

2шт.

33

T54657

WASHER

- end

2шт.

34

T54647

PLATE

- spacer

2шт.

35

T54646

PLATE

- bearing

2шт.

36

T55051

PLATE

- lock

2шт.

37

111-539

CARRIAGE BOLT,Short NK, 1/2"-13 x 2", G5

BOLT - 1/2 x 2" NC carriage (Grade 5)

2шт.

38

131-165

NUT,1/2"-13, GA

NUT - lock 1/2" NC hex

2шт.

39

25-1124

NUT,1 1/2"-12, G5

- gang bolt 1-1/2" NF hex

2шт.

40

T51599

BOLT

- gang 52-1/8" (1324.0 mm) Model 240

2шт.

41

T51621

BOLT

- gang 61-3/8" (1558.9 mm) Model 258

2шт.

42

T51625

BOLT

- gang 70-5/8" (1793.9 mm) Model 276

2шт.
