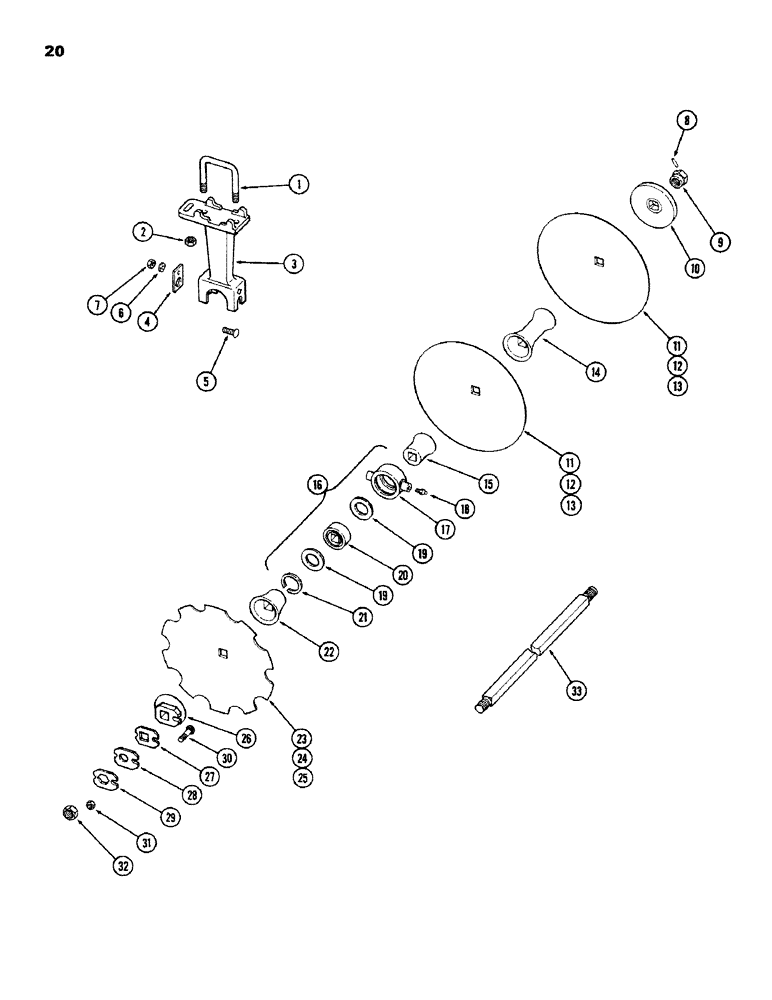

Запчасти Case IH K23B (20) - MAIN GANG, FRONT, RIGID
№
Артикул
Название
Примечание
Количество
1
T56254
BOLT
U-BOLT
4шт.
2
131-1140
LOCK NUT,7/8" - 9, Gr A
NUT - lock 7/8" NC hex
8шт.
3
T56253
RISER
STAND - bearing
4шт.
4
T52681
CLAMP
- trunnion
8шт.
5
111-618
BOLT,Short NK, 5/8"-11 x 2", G5
CARRIAGE, Short NK, 5/8"-11 x 2", G5
8шт.
6
195-108
WASHER,5/8"
- 1-3/4 x 11/16" x 10 gauge
8шт.
7
230-41110
LOCK NUT,5/8"-11, GA
NUT - lock 5/8" NC hex
8шт.
8
138-162
LOCK PIN,5/16" x 2 1/4", Slotted
Pin, 5/16" x 2 1/4", Slotted
2шт.
9
T52680
NUT
- gang bolt
2шт.
10
T52679
WASHER
- bumper
2шт.
11
T55907
DISK HARROW
BLADE - disk 22" (558.8 mm) x 7 gauge solid
1шт.
12
T55915
BLADE
- disk 22 x 1/4" (558.8 x 6.4 mm) solid
1шт.
13
T51693
BLADE
- disk 24" (609.6 mm) x 7 gauge solid
1шт.
14
T51655
CASTING
SPOOL
1шт.
15
T56687
BELL HOUSING
END SPOOL - small
4шт.
Ref #15 p/n T56687 should be the large end bell.
1шт.
16
T63287
HOUSING ASSY.
HOUSING AND BEARING ASSEMBLY
4шт.
17
NSS
NOT SOLD SEPARAT
HOUSING - bearing (Order T63287)
1шт.
18
219-3
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease 1/8"
1шт.
19
T55591
WASHER,70.61mm ID x 100mm OD x 3.4mm Thk
- bearing
2шт.
20
T56688
BALL BEARING,38.35mm ID x 100mm OD x 44.45mm W
BEARING
1шт.
21
T51654
SNAP RING,4.00", Int, #400
Ring, Snap, 4.00", Int, #400
1шт.
22
T56271
BELL HOUSING
END SPOOL - large
4шт.
Ref # 22 p/n T56271 should be the small end bell.
1шт.
23
T55908
BLADE
- disk 22" (558.8 mm) x 7 gauge notch
1шт.
24
T55917
BLADE
- disk 22 x 1/4" (558.8 x 6.4 mm) notch
1шт.
25
T51694
BLADE
- disk 24" (609.6 mm) x 7 gauge notch
1шт.
26
T54657
WASHER
- end
2шт.
27
T54647
PLATE
- spacer
2шт.
28
T54646
PLATE
- bearing
2шт.
29
T55051
PLATE
- lock
2шт.
30
111-539
CARRIAGE BOLT,Short NK, 1/2"-13 x 2", G5
BOLT - 1/2 x 2" NC carriage (Grade 5)
2шт.
32
25-1124
NUT,1 1/2"-12, G5
- gang bolt 1-1/2" NF hex
2шт.
33
T51638
BOLT
BOLT - gang 79-7/8" (2028.8 mm)
2шт.
Выбрано товаров: 35
