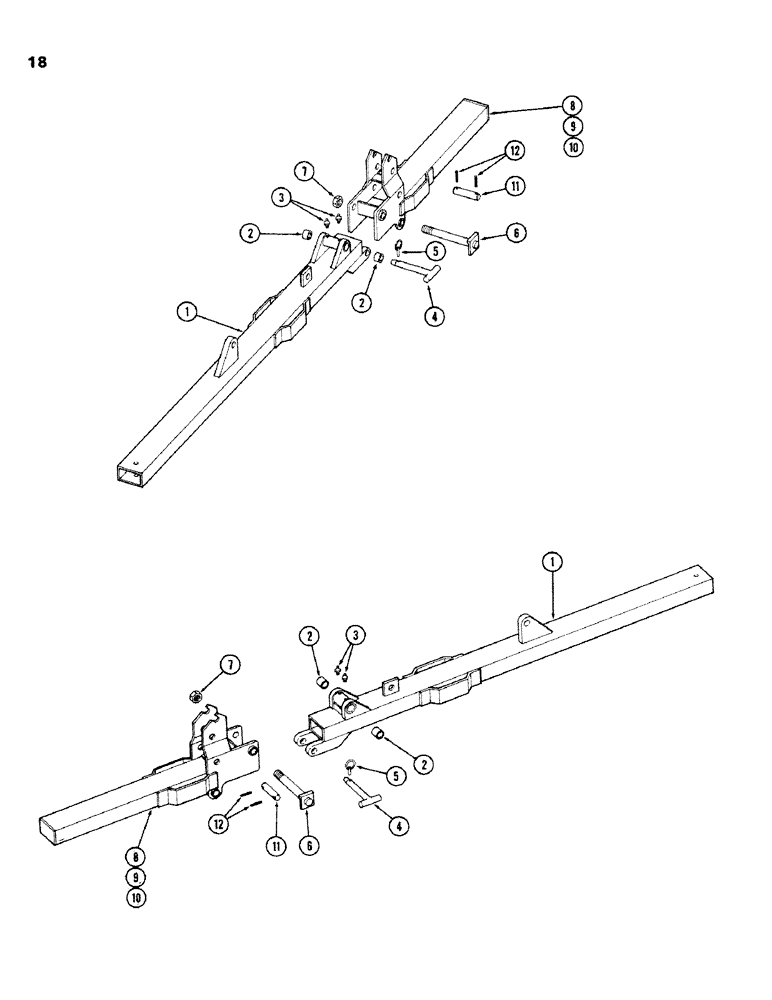

Запчасти Case IH K23B (18) - REAR GANG FRAMES

1

T54651

FRAME - gang

2шт.

2

T56590

BUSHING

4шт.

3

219-3

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

4шт.

4

T53194

PIN

- pivot

2шт.

5

A30338

PIN

2шт.

6

T54077

PIN

- pivot

2шт.

7

131-382

LOCK NUT,1 1/4"-7, GA

NUT - lock 1-1/4" NC hex

2шт.

8

T54079

GUARD

EXTENSION - wing frame (Model 240)

2шт.

9

T54080

GUARD

EXTENSION - wing frame (Model 258)

2шт.

10

T54650

EXTENSION - wing frame (Model 276)

2шт.

11

T54078

PIN

- hitch

2шт.

12

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

4шт.
