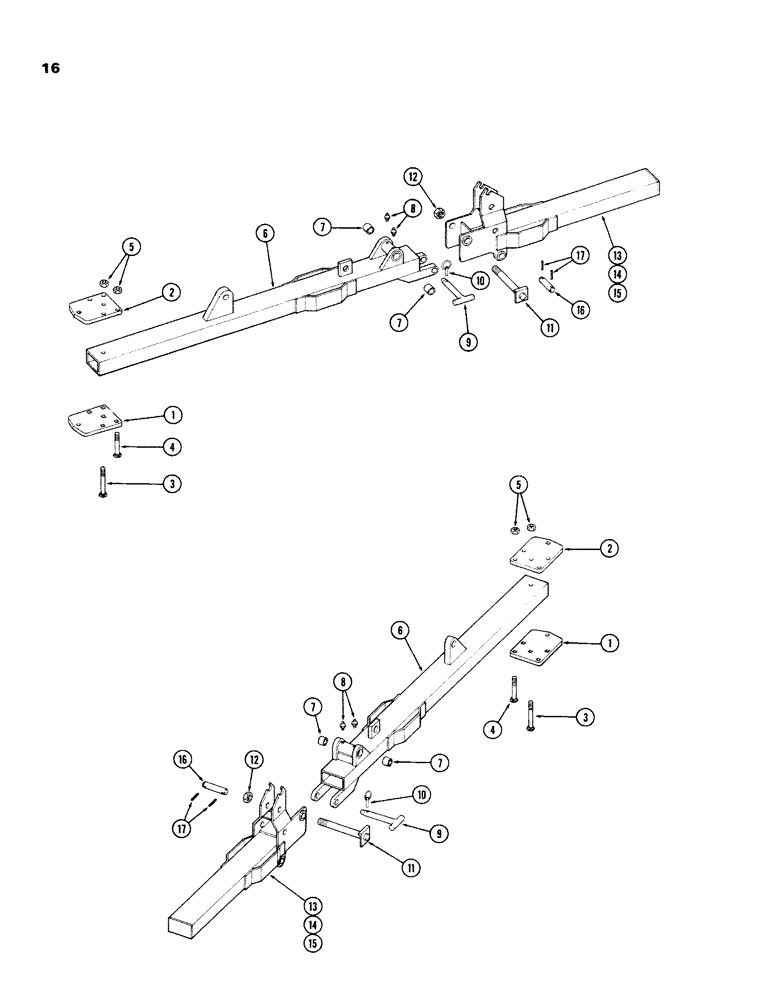

Запчасти Case IH K23B (16) - FRONT GANG FRAMES

1

T55147

PLATE - pivot lower

2шт.

2

T53192

PLATE - pivot upper

2шт.

3

433-1096

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 6", Gr 5

BOLT - 5/8 x 6" NC carriage (Grade 5)

4шт.

4

111-626

CARRIAGE BOLT,Short NK, 5/8"-11 x 5", G5

BOLT - 5/8 x 5" NC carriage (Grade 5)

6шт.

5

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex

10шт.

6

T53176

FRAME - gang

2шт.

7

T56590

BUSHING

4шт.

8

219-3

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

4шт.

9

T53194

PIN

- pivot

2шт.

10

A30338

PIN

2шт.

11

T54077

PIN

- pivot

2шт.

12

131-382

LOCK NUT,1 1/4"-7, GA

NUT - lock 1-1/4" NC hex

2шт.

13

T54076

EXTENSION - wing frame (Model 240)

2шт.

14

T54079

GUARD

EXTENSION - wing frame (Model 258)

2шт.

15

T54080

GUARD

EXTENSION - wing frame (Model 276)

2шт.

16

T54078

PIN

- hitch

2шт.

17

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

4шт.
