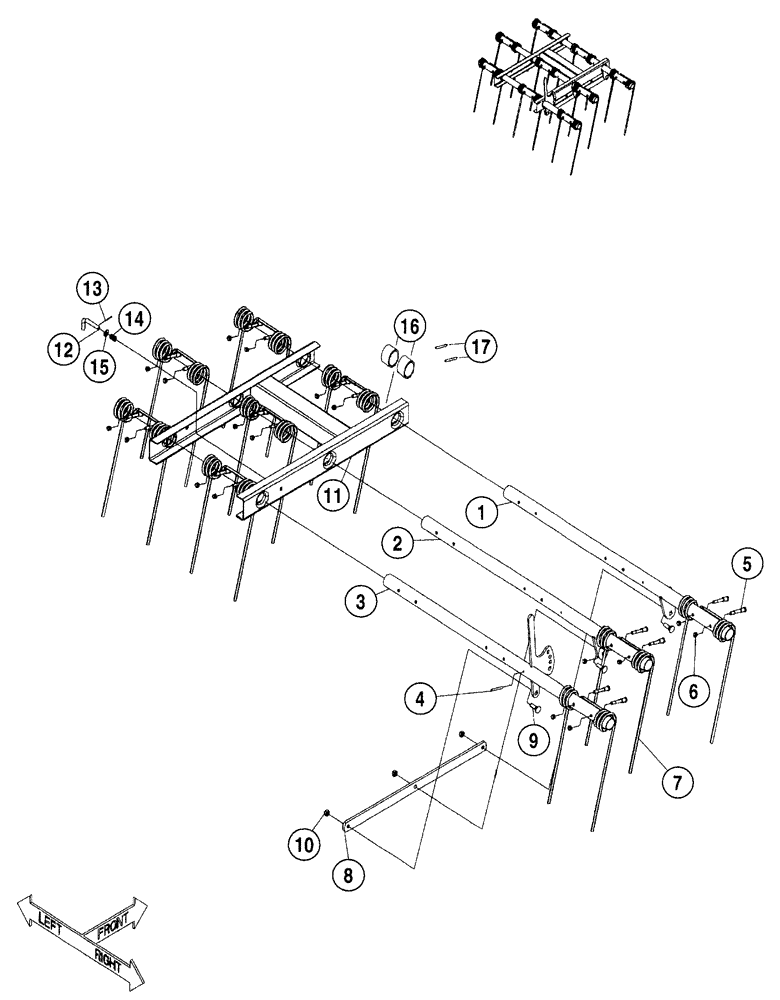

Запчасти Case IH HEAVY (10) - HARROW TINES

1

HM-774FB

TUBE

RH-harrow tine, front, 4 foot (1130.3 mm (44.5 inches) long)

1шт.

1

HM-777FB

TUBE,44.5" L

LH- harrow tine, front, 4 foot (1130.3 mm (44.5 inches) long)

1шт.

1

HM-727FB

TUBE

harrow tine, front, 6 foot (1549.4 mm (61 inches) long)

1шт.

1

HM-732FB

TUBE

harrow tine, front, 8 foot (2159 mm (85 inches) long)

1шт.

1

HM-736FB

TUBE

harrow tine, front, 10 foot (2768.6 mm (109 inches) long)

1шт.

2

HM-775FB

TUBE RH- harrow tine, middle, 4 foot (1231.9 mm (48.5 inches) long)

1шт.

2

HM-778FB

TUBE LH- harrow tine, middle, 4 foot (1028.7 mm (40.5 inches) long)

1шт.

2

HM-728FB

TUBE

harrow tine, middle, 6 foot (1549.4 mm (61 inches) long)

1шт.

2

HM-733FB

TUBE

harrow tine, middle, 8 foot (2159 mm (85 inches) long)

1шт.

2

HM-737FB

TUBE

harrow tine, middle, 10 foot (2768.6 mm (109 inches) long)

1шт.

3

HM-776FB

TUBE RH- harrow tine, rear, 4 foot (1028.7 mm (40.5 inches) long)

1шт.

3

HM-779FB

TUBE LH- harrow tine, rear, 4 foot (1231.9 mm (48.5 inches) long)

1шт.

3

HM-729FB

TUBE

harrow tine, rear, 6 foot (1549.4 mm (61 inches) long)

1шт.

3

HM-734FB

TUBE

harrow tine, rear, 8 foot (2159 mm (85 inches) long)

1шт.

3

HM-738FB

TUBE,109" L

harrow tine, rear, 10 foot (2768.6 mm (109 inches) long)

1шт.

4

438-12048

PIN,5/16" x 3", Slotted

roll, 5/16 x 3 inch

1шт.

5

23010

BOLT

hex shoulder, 1/2 NC x 3-3/4 inch (Grade 5)

1шт.

6

231-4148

NUT,1/2"-13, GB

hex, 1/2 inch NC

1шт.

7

8327FB

TINE

harrow, 1/2 x 22 inch

1шт.

8

HM-730FB

LINKAGE

angle control

1шт.

9

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

5/8 NC x 2 inch (Grade 5)

3шт.

10

231-41410

NUT,5/8"-11, GB

Hex

3шт.

11

HM-725FB

FRAME

harrow tine, 4 foot and 6 foot

1шт.

11

HM-731FB

FRAME

harrow tine, 8 foot

1шт.

11

HM-735FB

FRAME

harrow tine, 10 foot

1шт.

12

HM-726

PIN

angle adjustment

1шт.

13

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

14

21623

SPRING

pin compression

1шт.

15

5967

WASHER

.625ID 1.125 18GA YZD

1шт.

16

AW-303FB

COLLAR

TUBE- collar, harrow (4 foot units only)

2шт.

17

438-12048

PIN,5/16" x 3", Slotted

roll, 5/16 x 3 inch ( 4 foot units only)

2шт.
