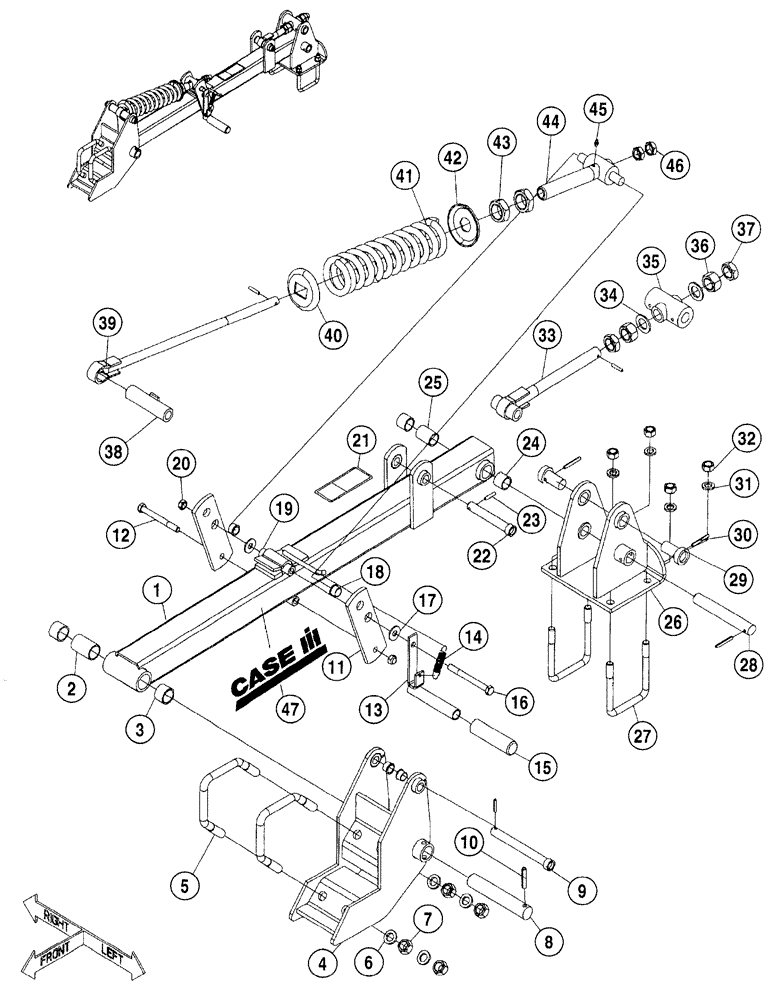

Запчасти Case IH HEAVY (06) - MAIN ARM FRAME

1

HM-741FB

ARM

FRAME-main arm

1шт.

2

HM-759

PIVOT

pivot, top

1шт.

3

6636

BUSHING

COMPST 1.5 X 1.25 X 1L

2шт.

4

HM-753FB

BRACKET

BRACKET - mounting

1шт.

5

6712

U-BOLT

V-BOLT- 3/4 inch x 4 UNC Extended (Grade 5)

2шт.

6

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

7

425-1012

NUT,3/4"-10, G5

4шт.

8

HM-760

PIVOT PIN

main

1шт.

9

HM-761

PIVOT PIN

spring tension link

1шт.

10

22346

LOCK PIN,3/8" x 2", Slotted

3/8 x 2 inch

1шт.

11

HM-754FB

PIVOT PLATE

spring tension pivot

2шт.

12

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

hex, 1/2 NC x 4-1/2 inch (Grade 5)

1шт.

13

HM-213FB

LATCH

lever arm, with handle

1шт.

14

23160

TENSION SPRING

latch lever

1шт.

15

3740

HANDLE

plastic grip

1шт.

16

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

hex, 1/2 NC x 5 inch (Grade 5)

1шт.

17

495-81271

WASHER,5/8" x 1 1/4" x .134"

WASHER- flat, 9/16 inch

2шт.

18

8446

BUSHING,19.07mm ID x 22.28mm OD x mm L

7/8 x 3/4 x 1/2 inch

4шт.

19

HM-276FB

LATCH

flipper

1шт.

20

231-4148

NUT,1/2"-13, GB

hex, 1/2 inch NC (Grade B)

2шт.

21

23212V2

DECAL

DECAL- safety, hazard lifting

1шт.

22

HM-764

PIVOT PIN

section pivot adjusting

1шт.

23

38-11620

PIN,1/4" x 1 1/4", Slotted

4шт.

24

9562K

KIT

BUSHING- nylon, 1-1/4 x 1 x 1 inch

2шт.

25

HM-765

BUSHING

pivot, bottom

1шт.

26

HM-740FB

MOUNTING PARTS

BRACKET - section mounting

1шт.

27

3951

U-BOLT

square, .625 x 4.0W x 5.375D (Grade 5)

2шт.

28

HM-758

PIN

section pitch adjusting

1шт.

29

HM-746

PIN

section mounting, upper

2шт.

30

38-11632

LOCK PIN,1/4" x 2", Slotted

3шт.

31

492-11062

BEARING WASHER,5/8"

4шт.

32

425-1010

NUT,5/8"-11, G5

4шт.

33

HM-744

LINK

section pitch, adjusting

1шт.

34

6669

WASHER,1.06" ID x 1.75" OD x 0.13" Thk

Flat, Special

2шт.

35

HM-749FB

PIVOT

PIVOT- section pitch

1шт.

36

425-1016

NUT,1"-8, G5

Hex

2шт.

37

425-1416

JAM NUT,Jam, 1"-8, G5

hex jam, 1 inch NC (Grade 5)

2шт.

38

HM-757FB

PIVOT PIN

top

1шт.

39

HM-756

ADJUSTMENT ROD

height adjusting link

1шт.

40

PM-467FB

SPRING CUP

upper

1шт.

41

5055FB

COMPRESSION SPRING

main arm

1шт.

42

PM-466FB

SPRING CUP

lower

1шт.

43

425-1420

JAM NUT,Jam, 1 1/4"-7, G5

hex jam, 1-1/4 inch NC (Grade 5)

2шт.

44

HM-755

TRUNNION

spring

1шт.

45

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

46

425-1412

JAM NUT,Jam, 3/4"-10, G5

hex jam, 3/4 inch NC (Grade 5)

2шт.

47

192847A2

DECAL

Case IH

1шт.
