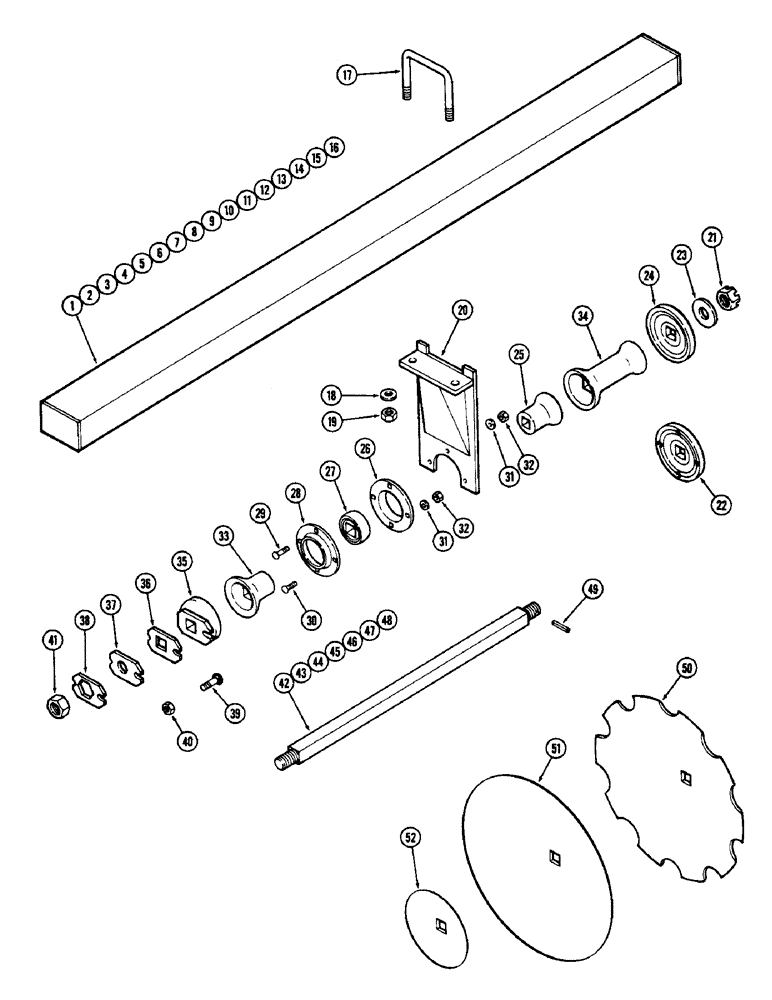

Запчасти Case IH G-SERIES (18) - GANGS, G59, 9 INCH (228.6 MM) SPACING

41

25-1124

NUT,1 1/2"-12, G5

- gang bolt 1-1/2" NF hex (G59-100, 109, 118, 127, 135, 144, 161, 170, 179, 188)

4шт.

41

25-1124

NUT,1 1/2"-12, G5

- gang bolt 1-1/2" NF hex (G59-197)

5шт.

41

25-1124

NUT,1 1/2"-12, G5

- gang bolt 1-1/2" NF hex (G59-205, 214, 223, 232 250)

6шт.

42

T51598

BOLT

- gang 5 blade 42-7/8" (1089.0 MM) (G59-100, 109)

2шт.

43

T51599

BOLT

- gang 6 blade 52-1/8" (1324.0 MM) (G59-100, 118, 127)

2шт.

44

T51621

BOLT

- gang 7 blade 61-3/8" (1558.9 MM) (G59-109, 118, 135, 144, 197, 205, 214, 223, 250)

2шт.

45

T51625

BOLT

- gang 8 blade 70-5/8" (1793.9 MM) (G59-127, 135, 214, 232)

2шт.

45

T51625

BOLT

- gang 8 blade 70-5/8" (1793.9 MM) (G59-161, 197)

1шт.

45

T51625

BOLT

- gang 8 blade 70-5/8" (1793.9 MM) (G59-205)

4шт.

46

T51638

BOLT

BOLT - gang 9 blade 79-7/8" (2028.8 MM) (G59-144, 161, 170, 214)

2шт.

46

T51638

BOLT

BOLT - gang 9 blade 79-7/8" (2028.8 MM) (G59-179)

1шт.

46

T51638

BOLT

BOLT - gang 9 blade 79-7/8" (2028.8 MM) (G59-223, 232)

4шт.

47

T51639

BOLT

- gang 10 blade 89-1/8" (2263.8 MM) (G59-161)

1шт.

47

T51639

BOLT

- gang 10 blade 89-1/8" (2263.8 MM) (G59-170, 179, 188, 250)

2шт.

48

T51643

BOLT

- gang 11 blade 98-3/8" (2498.7 MM) (G59-179)

1шт.

48

T51643

BOLT

- gang 11 blade 98-3/8" (2498.7 MM) (G59-188, 197, 250)

2шт.

49

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, (1 per gang bolt) 5/16" x 2 1/4", Slotted

1шт.

50

T55908

BLADE

- disk 22" (558.8 MM) x 7 gauge notched

1шт.

50

T51698

ELECTRICAL WIRE

BLADE - disk 18" (457.2 MM) x 8 gauge notched

1шт.

50

T51695

DISC

BLADE - disk 20" (508.0 MM) x 7 gauge notched

2шт.

51

T55907

DISK HARROW

BLADE - disk 22" (558.8 MM) x 7 gauge solid

1шт.

51

T51604

PLOW DISC

BLADE - disk 18" (457.2 MM) x 8 gauge solid

1шт.

51

T51603

DISK HARROW

BLADE - disk 20" (508.0 MM) x 7 gauge solid

2шт.

52

T55920

PLOW DISC

BLADE - disk 10" (254.0 MM) x 11 gauge solid

1шт.
