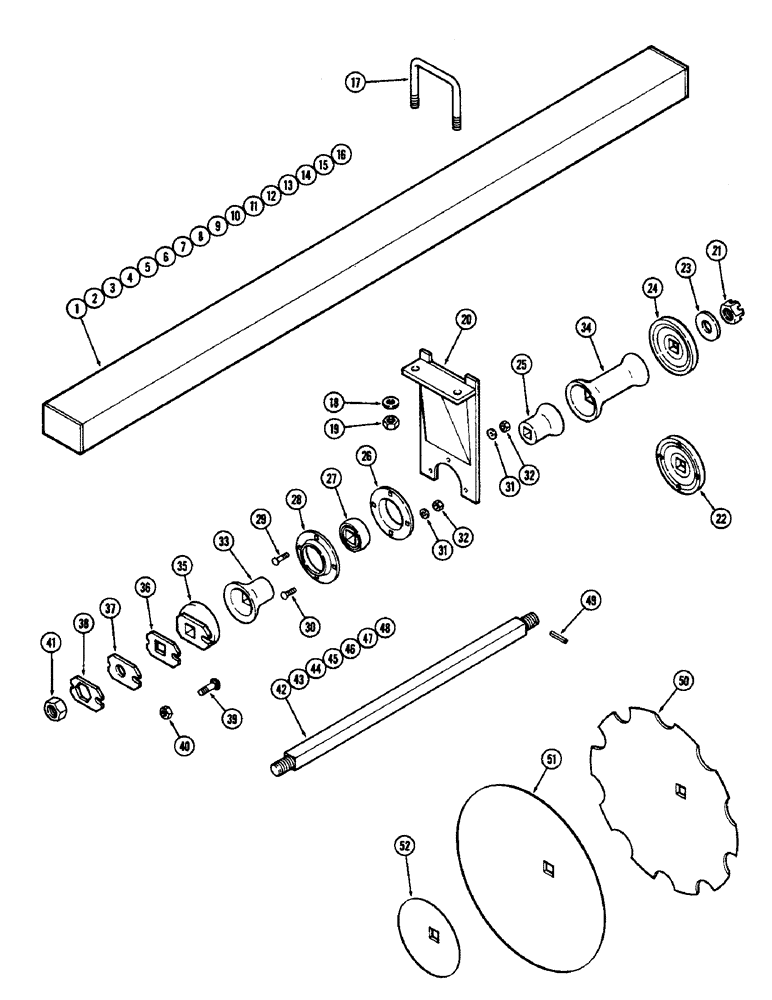

Запчасти Case IH G-SERIES (16) - GANGS, G59, 9 INCH (228.6 MM) SPACING

27

T51610

BEARING, BALL,38.76mm ID x 100mm OD x 33.34mm W

BEARING (G59-100, 109, 118, 127, 135)

8шт.

27

T51610

BEARING, BALL,38.76mm ID x 100mm OD x 33.34mm W

BEARING (G59-144)

10шт.

27

T51610

BEARING, BALL,38.76mm ID x 100mm OD x 33.34mm W

BEARING (G59-161, 170, 179, 188)

12шт.

27

T51610

BEARING, BALL,38.76mm ID x 100mm OD x 33.34mm W

BEARING (G59-197)

13шт.

27

T51610

BEARING, BALL,38.76mm ID x 100mm OD x 33.34mm W

BEARING (G59-205, 214, 223, 232, 250)

16шт.

28

T51608

FLANGE

- grease fitting (G59-100, 109, 118, 127, 135)

8шт.

28

T51608

FLANGE

- grease fitting (G59-144)

1шт.

28

T51608

FLANGE

- grease fitting (G59-161, 170, 179, 188)

12шт.

28

T51608

FLANGE

- grease fitting (G59-197)

13шт.

28

T51608

FLANGE

- grease fitting (G59-205, 214, 223, 232, 250)

16шт.

29

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5) (Three per flange)

1шт.

30

111-517

CARRIAGE BOLT,Short NK, 1/2"-13 x 1", G5

BOLT - 1/2 x 1" NC carriage (Grade 5) (One per flange)

1шт.

31

195-106

WASHER,1/2"

- 1-3/8 x 9/16" x 12 gauge (Four per flange)

1шт.

32

131-165

NUT,1/2"-13, GA

NUT - lock 1/2" NC hex (Four per flange)

1шт.

33

T51607

BELL HOUSING

END BELL - large (G59-100, 109, 118, 127, 135)

8шт.

33

T51607

BELL HOUSING

END BELL - large (G59-144)

10шт.

33

T51607

BELL HOUSING

END BELL - large (G59-161, 170, 179, 188)

12шт.

33

T51607

BELL HOUSING

END BELL - large (G59-197)

13шт.

33

T51607

BELL HOUSING

END BELL - large (G59-205, 214, 223, 232, 250)

16шт.

34

T55398

SPOOL

(G59-100)

10шт.

34

T55398

SPOOL

(G59-109)

12шт.

34

T55398

SPOOL

(G59-118)

14шт.

34

T55398

SPOOL

(G59-127, 205)

16шт.

34

T55398

SPOOL

(G59-135, 144)

18шт.

34

T55398

SPOOL

(G59-161)

20шт.

34

T55398

SPOOL

(G59-170)

22шт.

34

T55398

SPOOL

(G59-179)

24шт.

34

T55398

SPOOL

(G59-188, 197, 214)

26шт.

34

T55398

SPOOL

(G59-223)

28шт.

34

T55398

SPOOL

(G59-232)

30шт.

34

T55398

SPOOL

(G59-250)

34шт.

35

T54657

WASHER

- end (G59-100, 109, 118, 127, 135, 144, 161, 170, 179, 188)

4шт.

35

T54657

WASHER

- end (G59-197)

5шт.

35

T54657

WASHER

- end (G59-205, 214, 223, 232, 250)

6шт.

36

T54647

PLATE

- spacer

1шт.

37

T54646

PLATE

- bearing (G59-100, 109, 118, 127, 135, 144, 161, 170, 179, 188)

4шт.

37

T54646

PLATE

- bearing (G59-197)

5шт.

37

T54646

PLATE

- bearing (G59-205, 214, 223, 232, 250)

6шт.

38

T55051

PLATE

- lock (G59-100, 109, 118, 127, 135, 144, 161, 170, 179, 188)

4шт.

38

T55051

PLATE

- lock (G59-197)

5шт.

38

T55051

PLATE

- lock (G59-205, 214, 223, 232, 250)

6шт.

39

111-539

CARRIAGE BOLT,Short NK, 1/2"-13 x 2", G5

BOLT - 1/2 x 2" NC carriage (Grade 5) (One per lock plate)

1шт.

40

131-165

NUT,1/2"-13, GA

NUT - lock 1/2" NC hex (One per lock plate)

1шт.
