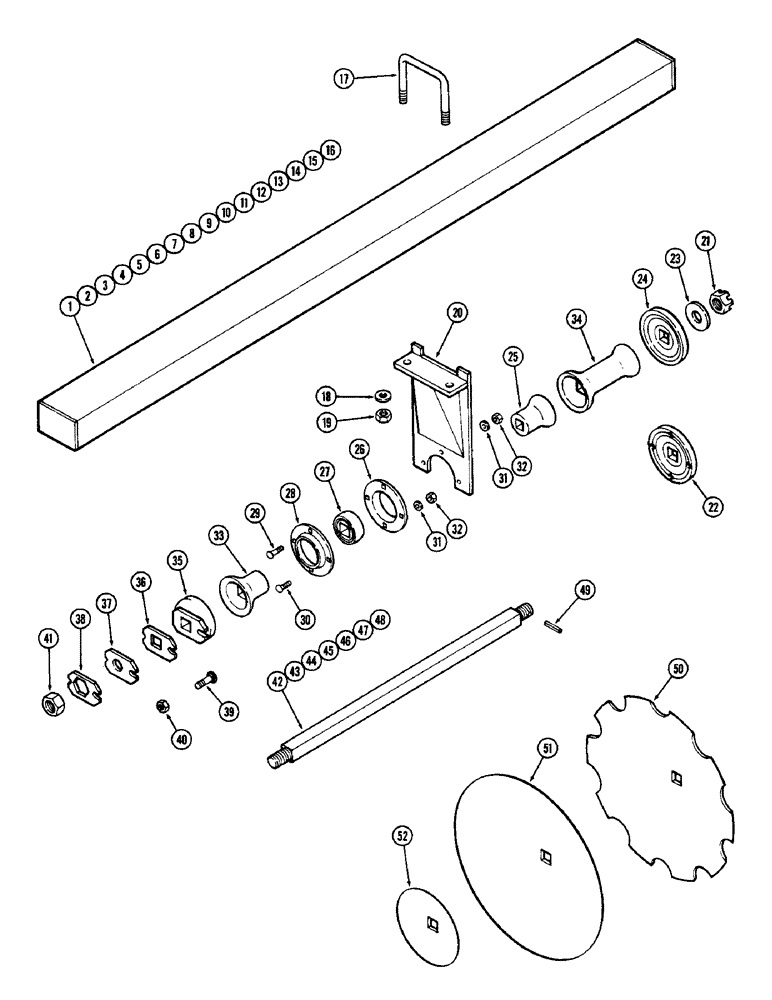

Запчасти Case IH G-SERIES (14) - GANGS, G59, 9 INCH (228.6 MM) SPACING

1

T51589

FRAME - gang (G59-100) 102" (2590.8 MM)

2шт.

2

T51618

FRAME - gang (G59-109) 108" (2743.2 MM)

2шт.

3

T51619

FRAME - gang (G59-118) 117" (2971.8 MM)

2шт.

4

T51622

FRAME - gang (G59-127) 126" (3200.4 MM)

2шт.

5

T51623

FRAME - gang (G59-135) 135" (3429.0 MM)

2шт.

6

T51626

FRAME - gang (G59-144) 144" (3657.6 MM)

2шт.

7

T51635

FRAME - gang (G59-161) 163" (4140.2 MM)

2шт.

8

T51640

FRAME - gang (G59-170) 172" (4368.8 MM)

2шт.

9

T51641

FRAME - gang (G59-179) 181" (4597.4 MM)

2шт.

10

T51644

FRAME - gang (G59-188) 190" (4826.0 MM)

2шт.

11

T51645

FRAME - gang (G59-197) 200" (5080.0 MM)

2шт.

12

T51646

FRAME - gang (G59-205) 209" (5308.6 MM)

2шт.

13

T51647

FRAME - gang (G59-214) 219" (5562.6 MM)

2шт.

14

T51648

FRAME - gang (G59-223) 228" (5791.2 MM)

2шт.

15

T51649

FRAME - gang (G59-232) 238" (6045.2 MM)

2шт.

16

T55589

FRAME - gang (G59-250) 257" (6527.8 MM)

2шт.

17

T51593

BOLT

U BOLT (One per bearing riser)

1шт.

18

195-109

WASHER,3/4"

- 2 x 13/16" x 9 gauge (Two per u bolt)

1шт.

19

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex (Two per u bolt)

1шт.

20

T51614

RISER

- bearing (G59-100, 109, 118, 127, 135)

8шт.

20

T51614

RISER

- bearing (G59-144)

10шт.

20

T51614

RISER

- bearing (G59-161, 170, 179, 188)

12шт.

20

T51614

RISER

- bearing (G59-197)

13шт.

20

T51614

RISER

- bearing (G59-205, 214, 223, 232, 250)

16шт.

21

25-1324

SLOTTED NUT,1 1/2"-12, G5

NUT - 1-1/2" NF hex slotted (G59-100, 109, 118, 127, 135, 144, 161, 170, 179, 188)

4шт.

21

25-1324

SLOTTED NUT,1 1/2"-12, G5

NUT - 1-1/2" NF hex slotted (G49-197)

5шт.

21

25-1324

SLOTTED NUT,1 1/2"-12, G5

NUT - 1-1/2" NF hex slotted (G59-205, 214, 223, 232)

6шт.

22

T51601

WASHER

- bumper (Rear right)

1шт.

23

195-114

WASHER,1 3/8"

- 3-1/4 x 1-1/2" x 7 gauge (G59-100, 109, 118, 127, 135, 144, 161, 170, 179, 188)

4шт.

23

195-114

WASHER,1 3/8"

- 3-1/4 x 1-1/2" x 7 gauge (G59-197)

5шт.

23

195-114

WASHER,1 3/8"

- 3-1/4 x 1-1/2" x 7 gauge (G59-214, 232, 250)

6шт.

24

T51600

WASHER,39.69mm ID x 171.45mm OD x 15.88mm Thk

- bumper (G59-100, 109, 118, 127, 135, 144, 161, 170, 179, 188)

3шт.

24

T51600

WASHER,39.69mm ID x 171.45mm OD x 15.88mm Thk

- bumper (G59-197)

4шт.

24

T51600

WASHER,39.69mm ID x 171.45mm OD x 15.88mm Thk

- bumper (G59-205, 214, 223, 232, 250)

5шт.

25

T51606

BELL HOUSING

END BELL - small (G59-100, 109, 118, 127, 135)

8шт.

25

T51606

BELL HOUSING

END BELL - small (G59-144)

10шт.

25

T51606

BELL HOUSING

END BELL - small (G59-161, 170, 179, 188)

12шт.

25

T51606

BELL HOUSING

END BELL - small (G59-197)

13шт.

25

T51606

BELL HOUSING

END BELL - small (G59-205, 214, 223, 232, 250)

16шт.

26

T51609

FLANGE

(G59-100, 109, 118, 127, 135)

8шт.

26

T51609

FLANGE

(G59-144)

10шт.

26

T51609

FLANGE

(G59-161, 170, 179, 188)

12шт.

26

T51609

FLANGE

(G59-197)

13шт.

26

T51609

FLANGE

(G59-205, 214, 223, 232, 250)

16шт.
