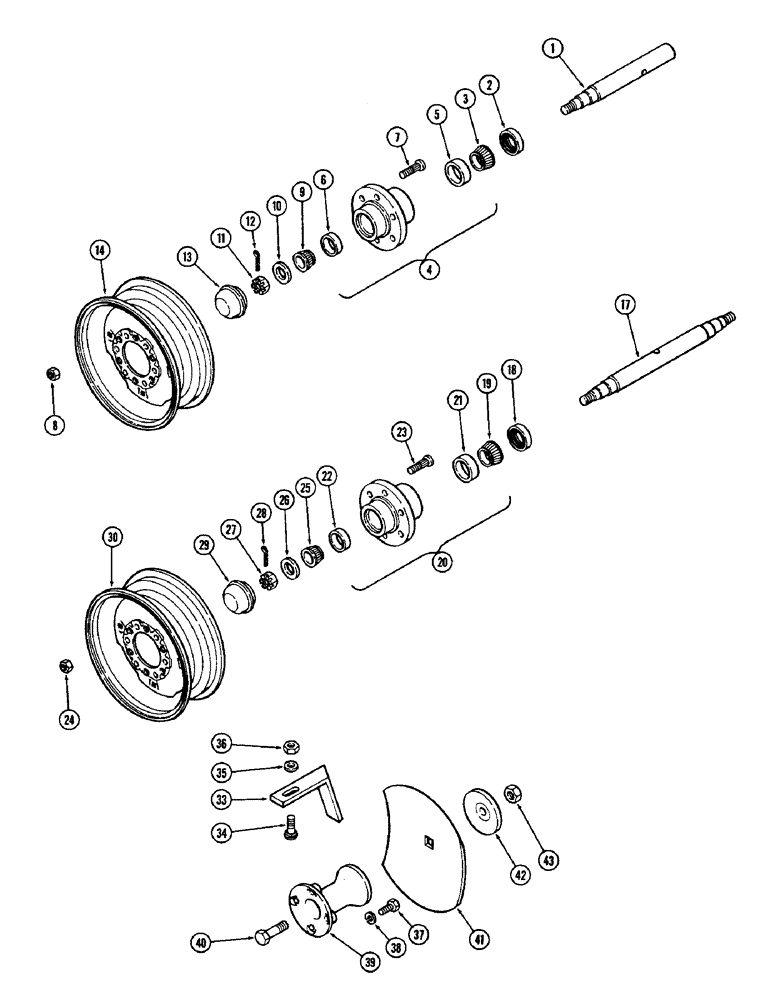

Запчасти Case IH G-SERIES (12) - SPINDLE AND HUB

SINGLE WHEELS

1шт.

1

T51588

SPINDLE

2шт.

2

T30028

SEAL

- grease

2шт.

3

T20079

ROLLER BEARING,1.625" ID x 3.1496" OD x 1.1802"

CONE - bearing inner 1-5/8" ID (41.3 MM)

2шт.

4

T55906

HUB

ASSEMBLY - with cups bolts and nuts

2шт.

5

40421

BEARING CUP

CUP - bearing inner 3-5/32" OD (80.2 MM)

1шт.

6

A29977

BEARING CUP

CUP - bearing outer 2-23/32" OD (69.1 MM)

1шт.

7

E16592

WHEEL BOLT

BOLT - hub

6шт.

8

F23214

WHEEL NUT

- hub bolt

6шт.

9

A29976

ROLLER BEARING

CONE - bearing outer 1-3/8" ID (34.9 MM)

2шт.

10

95-14

WASHER,7/8"

- 2-1/4 x 15/16" x 8 gauge

2шт.

11

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" NF hex slotted

2шт.

12

132-311

COTTER PIN,5/32" x 1 1/4"

5/32" x 1 1/4"

2шт.

13

T30029

HUB CAP

CAP - hub (Order G57436)

2шт.

14

A57879

RIM

WHEEL - 15 x 8" (381.0 x 203.2 MM)

2шт.

17

T51633

SPINDLE

dual wheels

2шт.

18

T30028

SEAL

- grease, dual wheels

4шт.

19

T20079

ROLLER BEARING,1.625" ID x 3.1496" OD x 1.1802"

CONE - bearing inner 1-5/8" ID (41.3 MM), dual wheels

4шт.

20

T55906

HUB

ASSEMBLY - with cups bolts and nuts, dual wheels

4шт.

21

40421

BEARING CUP

CUP - bearing inner 3-5/32" OD (80.2 MM), dual wheels

1шт.

22

A29977

BEARING CUP

CUP - bearing outer 2-23/32" OD (69.1 MM), dual wheels

1шт.

23

E16592

WHEEL BOLT

BOLT - hub, dual wheels

6шт.

24

F23214

WHEEL NUT

- hub bolt, dual wheels

6шт.

25

A29976

ROLLER BEARING

CONE - bearing outer 1-3/8" ID (34.9 MM), dual wheels

4шт.

26

95-14

WASHER,7/8"

- 2-1/4 x 15/16" x 8 gauge, dual wheels

4шт.

27

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" NF hex slotted, dual wheels

4шт.

28

132-311

COTTER PIN,5/32" x 1 1/4"

dual wheels 5/32" x 1 1/4"

4шт.

29

T30029

HUB CAP

CAP - hub (Order G57436), dual wheels

4шт.

30

A57879

RIM

WHEEL - 15 x 8" (381.0 x 203.2 MM), dual wheels

4шт.

33

T51684

SCRAPER

feathering blade

1шт.

34

111-618

BOLT,Short NK, 5/8"-11 x 2", G5

CARRIAGE, , Feathering blade Short NK, 5/8"-11 x 2", G5

1шт.

35

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge, feathering blade

1шт.

36

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex, feathering blade

1шт.

37

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Feathering blade Hex, 1/2"-13 x 1 3/4", G5

4шт.

38

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Feathering blade 1/2"

4шт.

39

T51685

SPOOL

- spacer, feathering blade

1шт.

40

113-808

BOLT,Hex, 7/8" - 9 x 3", Gr 5

- 7/8 x 3" NC hex (Grade 5), feathering blade

1шт.

41

T51686

BLADE

- 16" (406.4 MM), feathering blade

1шт.

42

T51687

CAP

- blade, feathering blade

1шт.

43

131-1140

LOCK NUT,7/8" - 9, Gr A

NUT - lock 7/8" NC hex, feathering blade

1шт.
